Classifier-Free Diffusion Guidance (CFG)

Created on September 15, 2025

2025   ·   signal_to_noise_ratio   temperature   inception_score   FID   guidance   classifier_guidance   classifier_free_guidance   ·   diffusion_model

hozy Summary

  • Classifier Guidance (Dhariwal & Nichol 2021)
    • Goal)
      • A technique to boost the sample quality of a diffusion model using an extra trained classifier.
      • Enabled generating low temperature samples from a diffusion model
    • Model)
      \(\begin{aligned} \tilde{\epsilon}_\theta(\mathbf{z}_\lambda, \mathbf{c}) &= \epsilon_\theta(\mathbf{z}_\lambda, \mathbf{c}) - w\sigma_\lambda \nabla_{\mathbf{z}_\lambda} \log p_\theta(\mathbf{c}\mid\mathbf{z}_{\lambda}) \\ &\approx - \sigma_\lambda \nabla_{\mathbf{z}_\lambda} \left[ \log p(\mathbf{z}_{\lambda}\mid\mathbf{c}) + w\log p_\theta(\mathbf{c}\mid\mathbf{z}_{\lambda}) \right] \end{aligned}\).
    • Drawback)
      • Complicates the diffusion model training pipeline.
        • Why?)
          • Requires training an extra classifier in DM
          • Classifier must be trained on noisy data so it is generally not possible to plug in a pre-trained classifier.
      • Mixing \(\nabla_{\mathbf{z}_{\lambda}} \log p(\mathbf{c}\mid \mathbf{z}_{\lambda})\). can be interpreted as a gradient-based adversarial attack!
        • cf.) Just like in GAN models where the generator’s adversarial attack improves the quality of the generation.
  • Classifier Free Guidance (Curr Paper)
    • Idea)
      • Have the same effect as the classifier guidance, but without using the gradients.
        • cf.) \(\nabla_{\mathbf{z}_{\lambda}} \log p(\mathbf{c}\mid \mathbf{z}_{\lambda})\).
      • Simultaneously train the conditional and the unconditional models in a single neural network!
        • How?)
          • Randomly set \(\mathbf{c} = \varnothing\). with some probability \(p_{\text{uncond}}\)..
            • If \(\mathbf{c} = \varnothing\)., we train the unconditional model
            • Else, we train the conditional model
    • Model)
      • Let
        • \(p_\theta(\mathbf{z})\). : an unconditional denoising diffusion model
          • s.t. parameterized through the score estimator \(\epsilon_\theta(\mathbf{z}_\lambda)\).
        • \(p_\theta(\mathbf{z}\vert\mathbf{c})\). : a conditional denoising diffusion model
          • s.t. parameterized through the score estimator \(\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c})\).
      • Then, we may set up the model as
        • \(\tilde{\epsilon}_\theta(\mathbf{z}_\lambda,\mathbf{c}) = (1+w)\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c}) - w \epsilon_\theta(\mathbf{z}_\lambda)\).



2. Background

Concept) Continuous Time Diffusion Model

Problem Setting)

  • \(\mathbf{x}\sim p(\mathbf{x})\).
  • \(\displaystyle\lambda \triangleq \log\frac{\alpha_{\lambda}^2}{\sigma_{\lambda}^2}\). : the log SNR (signal-noise-ratio)
    • where
      • \(\alpha_\lambda^2\). : the variance contribution from the signal
      • \(\sigma_\lambda^2\). : the variance contribution from the noise
        • cf.) Consider a forward process sample
          • \(\mathbf{z}_\lambda = \underbrace{\alpha_\lambda \mathbf{x}}_{\text{signal}} + \underbrace{\sigma_\lambda \epsilon}_{\text{noise}} ,\quad \epsilon\sim\mathcal{N}(0,\mathbf{I})\).
      • \(\alpha_\lambda^2+\sigma_\lambda^2=1\).
    • Desc.)
      • Here, the log SNR \(\lambda\). substitutes the time step \(t\). in the discrete settings.
        • e.g.) \(\underbrace{t=\{1,2,\cdots,T\}}_{\text{discrete time}}\rightarrow \underbrace{\lambda\in[\lambda_{\min}, \lambda_{\max}]}_{\text{continuous time}}\).
      • Why?) The log SNR corresponds with the time step.
        • \(\lambda\rightarrow\infty \Leftrightarrow \alpha_\lambda^2 \gg \sigma_\lambda^2\). : Low noise level
          • \(t\rightarrow 0\). in the discrete setting
        • \(\lambda\rightarrow-\infty \Leftrightarrow \alpha_\lambda^2 \ll \sigma_\lambda^2\). : Pure noise
          • \(t\rightarrow T\). in the discrete setting
  • \(\mathbf{z} = \{ \mathbf{z}_\lambda\mid\lambda\in[\lambda_{\min}, \lambda_{\max}] \},\quad \lambda_{\min}\lt \lambda_{\max}\in\mathbb{R}\).
    • \(\mathbf{z}_\lambda\). is the forward process sample with the noise level \(\lambda\).
    • \(\lambda\). is clipped to the range \([\lambda_{\min}, \lambda_{\max}]\). for the stability.
      • Theoretically, \(\lambda\in\mathbb{R}\).

Forward Process)

  • Def.)
    • \(q(\mathbf{z}\mid\mathbf{x})\). : the forward process
      • where
        • \(q(\mathbf{z}_\lambda\mid\mathbf{x}) = \mathcal{N}(\alpha_\lambda\mathbf{x}, \sigma_\lambda^2 \mathbf{I}),\quad\text{s.t. } \alpha_\lambda^2+\sigma_\lambda^2=1\).
        • \(\alpha_\lambda^2 = \displaystyle\frac{1}{1+e^{-\lambda}}\). : the signal variance
          • cf.) This corresponds to \(\bar{\alpha}_t = \displaystyle\prod_{s=1}^t \alpha_s\).
          • Derivation)
            • By definition
              • \(\lambda \triangleq \log\displaystyle\frac{\alpha_\lambda^2}{\sigma_\lambda^2} = \log\displaystyle\frac{\alpha_\lambda^2}{1-\alpha_\lambda^2}\).
            • Thus,
              • \(e^{-\lambda} = \displaystyle\frac{1-\alpha_\lambda^2}{\alpha_\lambda^2} \Rightarrow \alpha_\lambda^2 = \frac{1}{1+e^{-\lambda}}\).
        • \(\sigma_\lambda^2 = 1-\alpha_\lambda^2\).
  • Prop.)
    • \(q(\mathbf{z}_\lambda\mid\mathbf{z}_{\lambda'}) = \mathcal{N}\left(\frac{\alpha_\lambda}{\alpha_{\lambda'}}\mathbf{z}_{\lambda'}, {\sigma_{\lambda\mid\lambda'}}^2 \mathbf{I}\right)\).
      • where
        • \(\lambda\lt\lambda'\).
        • \({\sigma_{\lambda\mid\lambda'}}^2 = \sigma_\lambda^2 - \displaystyle\frac{\alpha_\lambda^2}{\alpha_{\lambda'}^2} \sigma_{\lambda'}^2 = \left( 1-e^{\lambda-\lambda'} \right)\sigma_\lambda^2\).

Reverse Process)

  • Def.)
    • \(p(\mathbf{z}) = \displaystyle\int q(\mathbf{z}\mid\mathbf{x}) p(\mathbf{x})\text{d}\mathbf{x}\). : the marginal of \(\mathbf{z}\).
      • where
        • \(\mathbf{x}\sim p(\mathbf{x})\).
        • \(\mathbf{z}\sim q(\mathbf{z}\mid\mathbf{x})\).
      • Prop)
        • What we want to know.
        • But intractable!
    • \(p_\theta(\mathbf{z}_{\lambda'}\mid\mathbf{z}_{\lambda}) = \mathcal{N}\left( \tilde{\mu}_{\lambda'\mid\lambda}(\mathbf{z}_{\lambda}, \underbrace{\mathbf{x}_\theta}_{\text{model!}}(\mathbf{z}_{\lambda})), \quad \underbrace{\left({\tilde{\sigma}_{\lambda'\mid\lambda}}^2 \right)^{1-v} \left({\sigma_{\lambda\mid\lambda'}}^2 \right)^{v}}_{\text{from Improved DDPM}} \right)\). : the reverse process
      • Derivation)
        • Set \(p_\theta(\mathbf{z}_{\lambda_{\min}}) = \mathcal{N}(\mathbf{0,I})\). to be the pure noise.
        • Get the posterior of the forward process as
          • \(q(\mathbf{z}_{\lambda'}\mid\mathbf{z}_{\lambda}, \mathbf{x}) = \mathcal{N}\left( \tilde{\mu}_{\lambda'\mid\lambda}(\mathbf{z}_{\lambda}, \mathbf{x}), \quad \left({\tilde{\sigma}_{\lambda'\mid\lambda}}^2 \right) \mathbf{I} \right)\).
            • where
              • \(\tilde{\mu}_{\lambda'\mid\lambda}(\mathbf{z}_{\lambda}, \mathbf{x}) = e^{\lambda-\lambda'}\left(\frac{\alpha_{\lambda'}}{\alpha_{\lambda}}\right)\mathbf{z}_{\lambda} + \left(1- e^{\lambda-\lambda'}\right) \alpha_{\lambda'} \mathbf{x}\).
              • \({\tilde{\sigma}_{\lambda'\mid\lambda}}^2 = \left(1-e^{\lambda-\lambda'} \right) {\sigma_{\lambda'}}^2\).
        • Use a model \(\mathbf{x}_\theta\). s.t. \(\mathbf{x}_\theta \approx \mathbf{x}\). so that \(\underbrace{p_\theta(\mathbf{z}_{\lambda'}\mid\mathbf{z}_{\lambda})}_{\text{our model}} \approx \underbrace{q(\mathbf{z}_{\lambda'}\mid\mathbf{z}_{\lambda}, \mathbf{x})}_{\text{posterior of }q}\).
          • How?) \(\epsilon\).-prediction from DDPM’s simplified objective
            • \(\mathbf{x}_\theta(\mathbf{z}_{\lambda}) = (\mathbf{z}_{\lambda} - \sigma_\lambda \epsilon_\theta(\mathbf{z}_{\lambda}))/\alpha_\lambda\).
        • The variance is a log-space interpolation of \({\tilde{\sigma}_{\lambda'\mid\lambda}}^2\). and \({\sigma_{\lambda\mid\lambda'}}^2\).
      • Training Objective)
        • \(\mathbb{E}_{\epsilon,\lambda}\Big[ \big\Vert \epsilon_\theta(\mathbf{z}_{\lambda}) - \epsilon \big\Vert_2^2 \Big]\).
          • where
            • \(\epsilon\sim\mathcal{N}(\mathbf{0,I})\).
            • \(z_{\lambda} = \alpha_\lambda \mathbf{x} + \sigma_\lambda \epsilon\).
            • \(\lambda \sim p(\lambda)\). drawn over \([\lambda_{\min}, \lambda_{\max}]\).
              • Two Cases)
                • \(p(\lambda) = \text{Uniform}(\lambda_{\min}, \lambda_{\max})\).
                • (v) Not uniform.
                  • \(\lambda = -2\log\tan(au+b)\).
                    • where
                      • \(u\sim\text{Uniform}(0,1)\).
                      • \(b = \arctan(e^{-\lambda_{\max}/2})\).
                      • \(a = \arctan(e^{-\lambda_{\min}/2})-b\).
                  • Desc.)
          • Props.)
            • \(\epsilon_\theta(\mathbf{z}_\lambda) \approx -\sigma_\lambda \nabla_{\mathbf{z}_\lambda} \log p(\mathbf{z}_{\lambda})\).
              • Desc.)
                • (LHS) Guessing the original noise \(\epsilon\). in DDPM’s perspective.
                • (RHS) \(\nabla_{\mathbf{z}_\lambda} \log p(\mathbf{z}_{\lambda})\). is the score from the Score-Based Model
            • Conditional Generative Model Case
              • For the conditioning information \(\mathbf{c}\)., we may set
                • \(\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c})\).


Concept) Temperature

  • Def.) \(T\).
    • A scaling parameter that controls the “sharpness” of a probability distribution.
    • In the softmax, \(p_i = \frac{\exp(z_i/T)}{\sum_j \exp(z_j/T)},\).
      • where $z_i$ are the logits.
  • Properties
    • \(T = 1\).: recovers the standard softmax.
    • \(T < 1\).: distribution becomes sharper (high-confidence, deterministic; one class dominates).
      • i.e.) The low temperature!
    • \(T > 1\).: distribution becomes flatter (uncertain, closer to uniform).
    • \(\lim_{T\to 0}\).: approaches an argmax (one-hot selection).
    • \(\lim_{T\to \infty}\).: approaches a uniform distribution.
  • Usage
    • In generation
      • lower \(T\rightarrow\). higher quality but lower diversity;
      • higher \(T\rightarrow\). more diverse but lower quality.
    • In knowledge distillation: temperature is used to smooth teacher predictions.


Concept) Trade-off between IS and FID

  • Inception Score (IS)
    • Def.)
      • \(\text{IS} = \exp\Big(\mathbb{E}_x\big[D_{KL}(p(y\mid x)\mid p(y))\big]\Big)\).
    • Prop.)
      • Increases when the generated images are more class-distinct and confident
      • Larger IS \(\Leftrightarrow\). More distinctive classes \(\Leftrightarrow\). Better!
  • Fréchet Inception Distance (FID)
    • Def.)
      • Let
        • \(p_{\text{data}} = \mathcal{N}(\mu_{\text{data}}, \Sigma_{\text{data}})\).
        • \(p_{\text{gen}} = \mathcal{N}(\mu_{\text{gen}}, \Sigma_{\text{gen}})\).
      • Then
        • \(\text{FID} = \Vert \mu_{\text{data}} - \mu_{\text{gen}} \Vert^2 + \text{Tr} \left( \Sigma_{\text{data}} + \Sigma_{\text{gen}} - 2\sqrt{\Sigma_{\text{data}}\Sigma_{\text{gen}}} \right)\).
    • Prop.)
      • Decreases when the distribution of the generated data is similar to the original data’s distribution.
      • Smaller FID \(\Leftrightarrow\). More similarity \(\Leftrightarrow\). Better!
  • Trade-off between IS and FID
    • If the generated data becomes more class distinct, then
      • IS increases
      • FID worsens (increases) because the diversity is reduced and the generated distribution deviates from the real one.


3. Guidance

3.1 Classifier Guidance

Dhariwal & Nichol 2021

  • Desc.)
    • A technique to boost the sample quality of a diffusion model using an extra trained classifier.
    • Enabled generating low temperature samples from a diffusion model
      • Concept) Low Temperature
        • Desc.)
          • A technique that makes a probability distribution sharper
        • Prop.)
          • Sharper distribution leads to more deterministic sampling.
          • Thus, the output tends to be more stable and of higher quality, but the diversity decreases.
      • cf.) Similar to BigGAN and low temperature Glow
  • Problem Setting)
    • \(\mathbf{c}\). : the classifier
    • \(\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c})\). : the classifier guidance
      • where \(\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c}) \approx -\sigma_\lambda \nabla_{\mathbf{z}_\lambda} \log p(\mathbf{z}_{\lambda}\mid\mathbf{c})\). : the diffusion score
  • Goal)
    • We want to generate data that can be clearly classified into the chosen category.
    • How?)
      • Maximize \(\log p(\mathbf{z}\mid\mathbf{c})\)..
        • Meaning)
          • For a given class \(\mathbf{c}\)., higher \(\log p(\mathbf{z}\mid\mathbf{c})\). indicates a higher probability of generating \(\mathbf{z}\). that is recognized as belonging to \(\mathbf{c}\).
      • Practical Trick)
        • Mix a diffusion model’s score estimate with the input gradient of the log probability of a classifier
          • \(\nabla_{\mathbf{z}_\lambda} \log \tilde{p}_\theta(\mathbf{z}_\lambda\mid\mathbf{c}) = \nabla_{\mathbf{z}_\lambda} \log p_\theta(\mathbf{z}_\lambda\mid\mathbf{c}) + w \cdot \underbrace{\nabla_{\mathbf{z}_\lambda} \log p_\theta(\mathbf{c}\mid\mathbf{z}_\lambda)}_{\text{extra guidance term!}}\).
          • Why?)
            • The extra term \(\log p(\mathbf{c\mid z})\). may steer the gradient towards increasing the probability that the classifier identifies \(\mathbf{z}\). as class \(\mathbf{c}\).
  • Model)
    \(\begin{aligned} \tilde{\epsilon}_\theta(\mathbf{z}_\lambda, \mathbf{c}) &= \epsilon_\theta(\mathbf{z}_\lambda, \mathbf{c}) - w\sigma_\lambda \nabla_{\mathbf{z}_\lambda} \log p_\theta(\mathbf{c}\mid\mathbf{z}_{\lambda}) \\ &\approx - \sigma_\lambda \nabla_{\mathbf{z}_\lambda} \left[ \log p(\mathbf{z}_{\lambda}\mid\mathbf{c}) + w\log p_\theta(\mathbf{c}\mid\mathbf{z}_{\lambda}) \right] \end{aligned}\).
    • where
      • \(w\). : a parameter that controls the strength of the classifier guidance
  • Usage)
    • Replace the original \(\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c})\). with \(\tilde{\epsilon}_\theta(\mathbf{z}_\lambda, \mathbf{c})\). in the objective function.
    • Then the sampling distribution goes
      • \(\tilde{p}_\theta(\mathbf{z}_\lambda\mid\mathbf{c})\varpropto p_\theta(\mathbf{z}_\lambda\mid\mathbf{c}) \cdot p_\theta(\mathbf{c}\mid\mathbf{z}_\lambda)^w\).
        • Desc.)
          • By setting \(w\gt0\)., we may up-weight the probability of data for which the classifier \(p_\theta(\mathbf{c\mid z}_\lambda)\). assigns high likelihood to the correct label.
  • Effect)
    • By varying the strength \(w\). of the classifier gradient, they could trade off Inception score and FID score.
      • Bigger \(s\). \(\Rightarrow\). More samples like that classifier \(y\).
        • Then
          • Inception Score increases : more recognizable
          • FID decreases : more realistic
          • Less diversity
  • e.g.)
    • Three mixture of Gaussian distributions being more separable.
  • Drawback)
    • Complicates the diffusion model training pipeline.
      • Why?)
        • Requires training an extra classifier in DM
        • Classifier must be trained on noisy data so it is generally not possible to plug in a pre-trained classifier.
    • Mixing \(\nabla_{\mathbf{z}_{\lambda}} \log p(\mathbf{c}\mid \mathbf{z}_{\lambda})\). can be interpreted as a gradient-based adversarial attack!
      • cf.) Just like in GAN models where the generator’s adversarial attack improves the quality of the generation.


3.2 Classifier-Free Guidance

  • Goal)
    • Have the same effect as the classifier guidance, but without using the gradients.
      • cf.) \(\nabla_{\mathbf{z}_{\lambda}} \log p(\mathbf{c}\mid \mathbf{z}_{\lambda})\).
  • Idea)
    • Simultaneously train the conditional and the unconditional models in a single neural network!
    • How?)
      • Randomly set \(\mathbf{c} = \varnothing\). with some probability \(p_{\text{uncond}}\)..
        • If \(\mathbf{c} = \varnothing\)., we train the unconditional model
        • Else, we train the conditional model
  • Model)
    • Let
      • \(p_\theta(\mathbf{z})\). : an unconditional denoising diffusion model
        • s.t. parameterized through the score estimator \(\epsilon_\theta(\mathbf{z}_\lambda)\).
      • \(p_\theta(\mathbf{z}\vert\mathbf{c})\). : a conditional denoising diffusion model
        • s.t. parameterized through the score estimator \(\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c})\).
    • Then, we may set up the model as
      • \(\tilde{\epsilon}_\theta(\mathbf{z}_\lambda,\mathbf{c}) = (1+w)\epsilon_\theta(\mathbf{z}_\lambda,\mathbf{c}) - w \epsilon_\theta(\mathbf{z}_\lambda)\).
  • Prop.)
    • No classifier gradient in the model.
      • Thus, taking a step in the \(\tilde{\epsilon}_\theta\). direction cannot be interpreted as a gradient-based adversarial attack on an image classifier.
    • Not even implicitly has the classifier gradient in the model.
      • \(\tilde{\epsilon}_\theta\). is constructed from score estimates that are non-conservative vector fields.
        • Why?) An unconstrained neural network is used!
        • cf.) A non-conservative vector fields has no mapped scalar function.
        • Thus, no scalar potential function exists such as a classifier log likelihood.
      • cf.) Implicit Classifier Gradient \(\epsilon^*\).
        • Derivation)
          • Start from the Bayes Rule s.t. \(p^i(\mathbf{c\mid z}_\lambda) \varpropto \displaystyle\frac{p(\mathbf{z}_\lambda\mid\mathbf{c})}{p(\mathbf{z}_\lambda)}\)..
          • If we have access to exact scores \(\epsilon^*(\mathbf{z}_\lambda,\mathbf{c})\). and \(\epsilon^*(\mathbf{z}_\lambda)\). we may get the gradient of this classifier as
            • \(\nabla_{\mathbf{z}_\lambda} \log p^i(\mathbf{c}\mid \mathbf{z}_\lambda) = -\frac{1}{\sigma_\lambda} \left[\epsilon^*(\mathbf{z}_\lambda,\mathbf{c})-\epsilon^*(\mathbf{z}_\lambda)\right]\).


Tech) CFG Algorithms

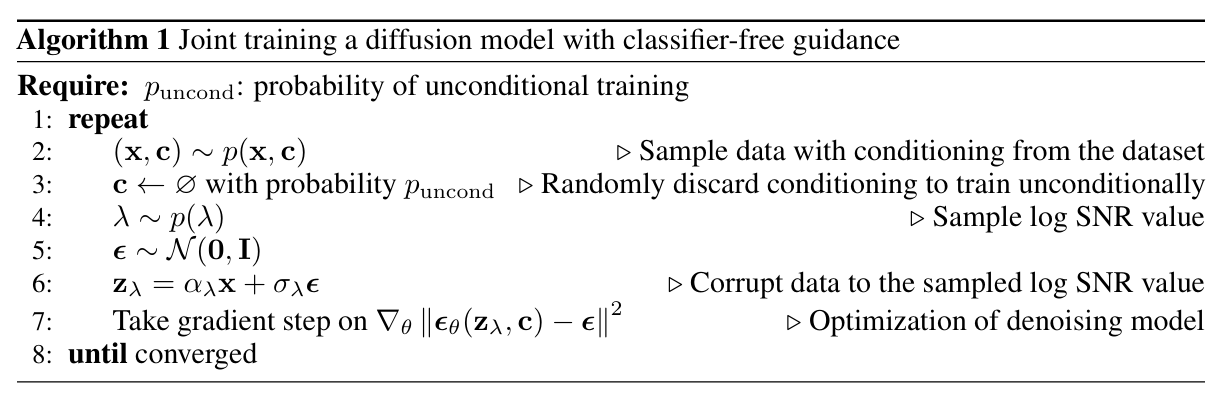

  • Training

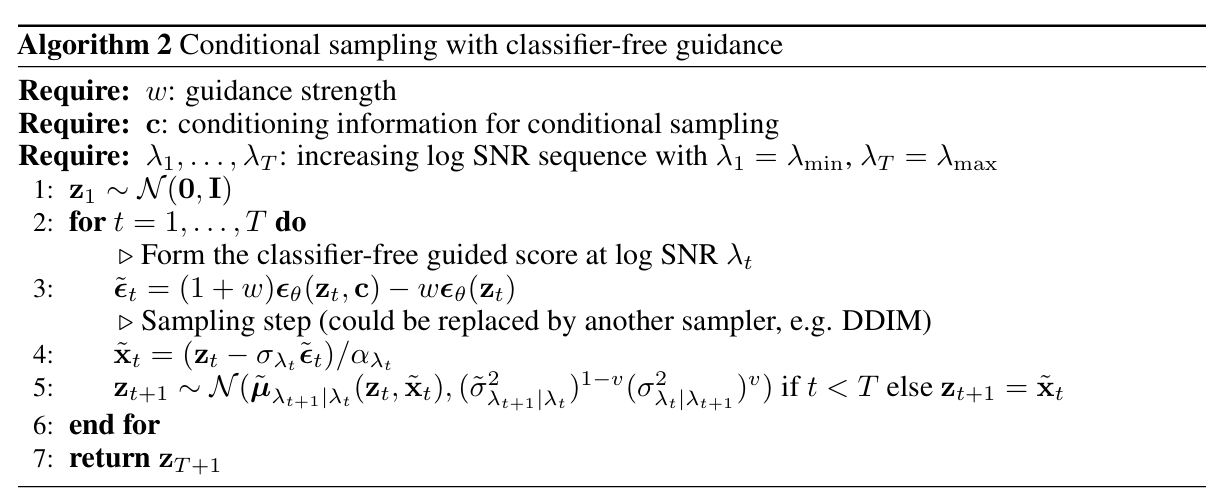

  • Sampling
  • Strength)
    • Simplicity.
      • One line change in the code enabled the trade-off between IS and FID.
      • No need for an extra trained classifier like the classifier guidance model.


Enjoy Reading This Article?

Here are some more articles you might like to read next:

  • Guiding a Diffusion Model with a Bad Version of Itself (Autoguidance)
  • (DM Reconst.) Ch.3 Score-Based Perspective - From EBMs to NCSN
  • Score-Based Generative Modeling through Stochastic Differential Equation
  • Denoising Diffusion Probabilistic Models (DDPM)
  • Variational Autoencoder Bayes (VAE)
