Variational Autoencoder Bayes (VAE)

2. Method

• Problem Setting)
  • Assumptions)
    • i.i.d. dataset with latent variables per datapoint
    • fixed dataset for simplicity
      • But can be applied to online, non-stationary settings
  • Goal)
    • Perform on the global parameters either
      • maximum likelihood (ML) inference
      • maximum a posteriori (MAP) inference
    • Perform variational inference on the latent variables
    • Extend to performing variational inference on the global parameters

2.1 Problem Scenario

• Settings)
  • \(\mathbf{X} = \{\mathbf{x}^{(i)}\}_{i=1}^N\). : i.i.d. dataset
    • i.e.) samples of some continuous or discrete variable \(\mathbf{x}\).
  • \(\mathbf{z}\). : an unobserved continuous random variable that generated the data \(\mathbf{X}\). in two steps
    • a value \(\mathbf{z}^{(i)}\). is generated from some prior distribution \(p_{\boldsymbol{\theta}^*}(\mathbf{z})\).
    • a value \(\mathbf{x}^{(i)}\). is generated from some conditional (likelihood) distribution \(p_{\boldsymbol{\theta}^*}(\mathbf{x\vert z})\).
  • \(p_{\boldsymbol{\theta}^*}(\mathbf{z})\). and \(p_{\boldsymbol{\theta}^*}(\mathbf{x\vert z})\).
    • came from parametric families of distributions \(p_{\boldsymbol{\theta}}(\mathbf{z})\). and \(p_{\boldsymbol{\theta}}(\mathbf{x\vert z})\).
    • their PDFs are differentiable almost everywhere w.r.t. both \(\boldsymbol{\theta, z}\).
  • No common simplifying assumptions about the marginal or posterior probabilities.
    • cf.) Still the algorithm works well in cases of…
      • Intractable
        • \(p_{\boldsymbol{\theta}}(\mathbf{x}) = \displaystyle\int p_{\boldsymbol{\theta}}(\mathbf{z})\; p_{\boldsymbol{\theta}}(\mathbf{x\vert z}) \text{d}\mathbf{z}\). : the marginal likelihood
        • \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x}) = \displaystyle\frac{p_{\boldsymbol{\theta}}(\mathbf{x\vert z})p_{\boldsymbol{\theta}}(\mathbf{z})}{p_{\boldsymbol{\theta}}(\mathbf{x})}\). : the posterior distribution
      • Large Dataset
  • \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\). : the recognition model
    • Desc.)
      • \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\). is an approximation to the intractable true posterior \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\).
        • cf.) The ELBO maximization problem
    • Props.)
      • It is not necessarily factorial.
      • Its parameters \(\boldsymbol{\phi}\). are not computed from me closed-form expectation.
• Application)
  • This model can be used in solving…
    • Approximate \(\boldsymbol{\theta}_{\text{ML}}\). or \(\boldsymbol{\theta}_{\text{MAP}}\).
    • Approximate posterior inference of the latent variable \(\mathbf{z}\). given \(\mathbf{x}\).
      • i.e.) \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\).
    • Approximate marginal inference of the variable \(\mathbf{x}\).
      • When?)
        • Cases where a prior over \(\mathbf{x}\). is required.
      • e.g.)
        • image denoising, inpainting, super-resolution

2.2 The Variational Bound

Concept) The Variational Lower Bound (ELBO)

• Def.) ELBO
  • \(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)})\). : the variational lower bound on the marginal likelihood of datapoint \(i\).
    • where
      • \(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) = \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \log p_{\boldsymbol{\theta}}(\mathbf{x,z}) - \log q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) \right]\).
• Derivation)
  • Consider the log likelihood \(\log p_{\boldsymbol{\theta}}(\mathbf{x})\). can be rewritten as
    \(\begin{aligned} \log p_{\boldsymbol{\theta}}(\mathbf{x}) &= \log\displaystyle\int p_{\boldsymbol{\theta}}(\mathbf{x,z}) \text{d}\mathbf{z} \\ &= \log\displaystyle\int q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) \frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \text{d}\mathbf{z} \\ &= \log \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[\displaystyle\frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\right] \end{aligned}\)..
  • Since \(\log\). is concave, Jensen’s Inequality gives \(\begin{aligned} \log p_{\boldsymbol{\theta}}(\mathbf{x}) = \log \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[\displaystyle\frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\right] &\ge \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \log \displaystyle\frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\right] \\ &= \underbrace{\mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \log p_{\boldsymbol{\theta}}(\mathbf{x,z}) - \log q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) \right]}_{\text{ELBO!}} \\ &\triangleq \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) \end{aligned}\).

Prop.) ELBO Prop. 1

\(\underbrace{\log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right)}_{\text{marginal likelihood of a datapoint}} = \underbrace{D_{KL} \left( \left. q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) \right\Vert p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x}^{(i)} \right) \right)}_{\text{KL-div of the approximate from the true posterior}} + \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)})\).

• pf.)
  • Considering the log marginal likelihood, we have
    \(\begin{aligned} \log p_{\boldsymbol{\theta}}(\mathbf{x}) &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \log p_{\boldsymbol{\theta}}(\mathbf{x}) \right] & (\because p_{\boldsymbol{\theta}}(\mathbf{x}) \text{ is indep. of } \mathbf{z}) \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \displaystyle \log \frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{p_{\boldsymbol{\theta}}(\mathbf{z\vert x})} \right] \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \displaystyle \log \frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{p_{\boldsymbol{\theta}}(\mathbf{z\vert x})} \right] \end{aligned}\).
  • By definition of ELBO, we have
    \(\begin{aligned} \log p_{\boldsymbol{\theta}}(\mathbf{x}) - \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}) &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \displaystyle \log \frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{p_{\boldsymbol{\theta}}(\mathbf{z\vert x})} \right] - \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \log \displaystyle\frac{p_{\boldsymbol{\theta}}(\mathbf{x,z})}{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\right] \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})} \left[ \displaystyle \log \frac{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}{p_{\boldsymbol{\theta}}(\mathbf{z\vert x})} \right] \\ &= D_{KL}(q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) \Vert p_{\boldsymbol{\theta}}(\mathbf{z\vert x})) \end{aligned}\).
• cf.)
  • We may get the marginal likelihood as
    • \(\log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(1)}, \cdots, \mathbf{x}^{(N)} \right) = \displaystyle\sum_{i=1}^N \log p_{\boldsymbol{\theta}} \left(\mathbf{x}^{(i)} \right)\).
• cf.) KL-Divergence’s non-negativity corresponds with ELBO as the lower bound of the log marginal liklihood.
  • Consider that the KL-divergence is non-negative.
  • Thus,
    \(\begin{aligned} \log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right) &= \underbrace{D_{KL} \left( \left. q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) \right\Vert p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x}^{(i)} \right) \right)}_{\text{always non negative}} + \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) \\ &\ge \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) \right] & \text{(Check Prop.1 below.)} \end{aligned}\).
• Intuition)
  • We want to know \(p_{\boldsymbol{\theta}}(\mathbf{x})\)..
    • Why?)
      • We want a generative model!
  • However, it is impossible to obtain \(p_{\boldsymbol{\theta}}(\mathbf{x})\). directly.
    • Why?)
      • Suppose there exists a latent variable \(\mathbf{z}\). that generates \(\mathbf{x}\).
      • Then, the marginal likelihood of \(\mathbf{x}\). is defined as
        • \(p_{\boldsymbol{\theta}}(\mathbf{x}) = \displaystyle\int p_{\boldsymbol{\theta}}(\mathbf{x\vert z})p(\mathbf{z}) \text{d}\mathbf{z}\).
        • Why?) Intuitionally…
          • In order to make our model consider all possible latent variables, we should average out \(\mathbf{z}\).
          • If not, out model may be biased to certain value of the latent variable \(\mathbf{z}'\).
      • The problem is that the above integral is intractable : \(p_{\boldsymbol{\theta}}(\mathbf{x}) = \displaystyle\int p_{\boldsymbol{\theta}}(\mathbf{x\vert z})p(\mathbf{z}) \text{d}\mathbf{z}\).
  • Instead, we may consider the posterior distribution \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\)..
    • Why?)
      • We can observe \(\mathbf{x}\). and the posterior \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\). enables estimating \(\mathbf{z}\). with \(\mathbf{x}\).
  • Using the Bayes Rule, we may get
    • \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x}) = \displaystyle\frac{p_{\boldsymbol{\theta}}(\mathbf{x\vert z})p(\mathbf{z})}{p_{\boldsymbol{\theta}}(\mathbf{x})}\). where \(\displaystyle p_{\boldsymbol{\theta}}(\mathbf{x}) =\int p_{\boldsymbol{\theta}}(\mathbf{x\vert z})p(\mathbf{z}) \text{d}\mathbf{z}\).
  • Now, consider a family of tractable distribution \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\).
    • What if we find a distribution \(q_{\boldsymbol{\phi}^*}(\mathbf{z\vert x})\). that is closest to \(p(\mathbf{z\vert x})\).?
      • How?)
        • Minimize the KL-Divergence between \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\). and \(q_{\boldsymbol{\phi}^*}(\mathbf{z\vert x})\)..
        • We can rewrite \(p(\mathbf{x})\). as the sum of KL-Divergence and ELBO \(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)})\).
        • Since KL-Divergence is non-negative, ELBO is the lower bound of \(p(\mathbf{x})\).
  • Log likelihood \(p_{\boldsymbol{\theta}}(\mathbf{z})\). maximization problem and ELBO \(\mathcal{L}\). maximization problem is identical to the minimization problem of the KL-Divergence between \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\). and \(q_{\boldsymbol{\phi}^*}(\mathbf{z\vert x})\)..

Prop.) ELBO Prop. 2

\(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) = \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log \left( p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) \right) \right]\).

• pf.)
  • By definition, we have
    \(\begin{array}{clll} \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) &= \log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right) &-& D_{KL} \left( \left. q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) \;\right\Vert\; p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x}^{(i)} \right) \right) \\ &= \log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right) &-& \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log\left( \displaystyle\frac{q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right)}{p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x}^{(i)} \right)} \right) \right] \\ &= \log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right) &-& \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log \left( \displaystyle\frac{p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right)}{p_{\boldsymbol{\theta}} \left(\mathbf{x}^{(i)} \right)} \right) \right] \\ &= \log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right) &-& \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) \right] - \log p_{\boldsymbol{\theta}} \left(\mathbf{x}^{(i)} \right) \end{array}\).
  • Therefore,
    • \(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) = \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) \right] \quad\cdots\quad (A)\).

Prop.) ELBO Prop. 3

\(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) = -D_{KL}\left(\left. q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) \;\right\Vert\; p_{\boldsymbol{\theta}}(\mathbf{z}) \right) + \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\left[ \log p_{\boldsymbol{\theta}} \left(\mathbf{x}^{(i)}\vert\mathbf{z} \right) \right]\).

• pf.)
  • From \(\text{(A)}\)., we have
    \(\begin{array}{cl} \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) \right] \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) + \log p_{\boldsymbol{\theta}}(\mathbf{z}) - \log p_{\boldsymbol{\theta}}(\mathbf{z}) \right] \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right)- \log p_{\boldsymbol{\theta}}(\mathbf{z}) \right] + \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) + \log p_{\boldsymbol{\theta}}(\mathbf{z})\right] \\ &= -D_{KL}\left(\left. q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) \;\right\Vert\; p_{\boldsymbol{\theta}}(\mathbf{z}) \right) + \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\left[ \log p_{\boldsymbol{\theta}} \left(\mathbf{x}^{(i)}\vert\mathbf{z} \right) \right] \end{array}\).

Tech.) ELBO Optimization

• Desc.)
  • Suppose we want to get \(\underbrace{\log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right)}_{\text{marginal likelihood of a datapoint}}\)..
  • Although we don’t know the MLE, we have the lower bound ELBO.
  • Thus, we instead maximize the ELBO.
  • Recall that ELBO was defined as
    • \(\mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)}) = \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) -\log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right) \right]\).
  • Since \(q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right)\). is what we decide, we can choose a differentiable \(q\). and apply optimization methods.
    • Refer to the reparameterization trick below.
  • However, \(p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right)\). is a probability distribution dependent on the given data \(\mathbf{x}\)..
  • Thus, we consider a function \(f(\mathbf{z}) = \log p_{\boldsymbol{\theta}} \left(\mathbf{z, x}^{(i)} \right)\)., which gradient is tractable, so that we can apply optimization algorithms.
    • How?)
      • Approach 1) Naive Monte Carlo Gradient Estimator
        \(\begin{aligned} \nabla_{\boldsymbol{\phi}} \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z})} \left[ f(\mathbf{z}) \right] &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z})} \left[ f(\mathbf{z}) \nabla_{q_{\boldsymbol{\phi}}(\mathbf{z})} \log q_{\boldsymbol{\phi}} (\mathbf{z}) \right] \\ &\simeq \displaystyle\frac{1}{L}\sum_{l=1}^L f(\mathbf{z}^{(l)}) \nabla_{q_{\boldsymbol{\phi}}(\mathbf{z})} \log q_{\boldsymbol{\phi}} (\mathbf{z}^{(l)}) \end{aligned}\).
        • Drawback)
          • high variance \(\rightarrow\). Unstable gradient \(\rightarrow \max \tilde{\mathcal{L}}\). problem becomes hard to solve.
          • impractical for this paper’s purpose
      • Approach 2) SGVB estimator with AEVB algorithm
        • What this paper suggests!

2.3 The SGVB estimator and AEVB algorithm

Concept) Stochastic Gradient Variational Bayes (SGVB) Estimator

• Objective)
  • We want to form Monte Carlo estimates of expectations of some function \(f(\mathbf{z})\). w.r.t. \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\).
• Estimators)
  • Version A : \(\tilde{\mathcal{L}}^{A} \left( \boldsymbol{\theta, \phi}; \mathbf{x}^{(i)} \right)\).
    • Def.)
      • \(\tilde{\mathcal{L}}^{A} \left( \boldsymbol{\theta, \phi}; \mathbf{x}^{(i)} \right) = \displaystyle\frac{1}{L} \sum_{l=1}^L \log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)}, \mathbf{z}^{(i,l)} \right) - \log{q_{\boldsymbol{\phi}}} \left( \mathbf{z}^{(i,l)} \mid \mathbf{x}^{(i)} \right)\).
        • where
          • \(\mathbf{z}^{(i,l)} = g_{\boldsymbol{\phi}} \left( \boldsymbol{\epsilon^{(i,l)}}, \mathbf{x}^{(i)} \right)\). : a differentiable transformation
          • \(\boldsymbol{\epsilon}^{(l)} \sim p(\boldsymbol{\epsilon})\). : an (auxiliary) noise variable
            • cf.) How to choose \(g_{\boldsymbol{\phi}} \left( \boldsymbol{\epsilon^{(i,l)}}, \mathbf{x}^{(i)} \right)\). and \(p(\boldsymbol{\epsilon})\). are described in 2.4.
  • Version B : \(\tilde{\mathcal{L}}^{B} \left( \boldsymbol{\theta, \phi}; \mathbf{x}^{(i)} \right)\).
    • Def.)
      • \(\tilde{\mathcal{L}}^{B} \left( \boldsymbol{\theta, \phi}; \mathbf{x}^{(i)} \right) = -D_{KL} \left( q_{\boldsymbol{\phi}} \left. \left(\mathbf{z\vert x}^{(i)} \right) \right\Vert p_{\boldsymbol{\theta}}(\mathbf{z}) \right) + \displaystyle\frac{1}{L} \sum_{l=1}^L \log p_{\boldsymbol{\theta}} (\mathbf{x}^{(i)} \vert \mathbf{z}^{(i,l)})\).
        • where
          • \(\mathbf{z}^{(i,l)} = g_{\boldsymbol{\phi}} \left( \boldsymbol{\epsilon^{(i,l)}}, \mathbf{x}^{(i)} \right)\). : a differentiable transformation
          • \(\boldsymbol{\epsilon}^{(l)} \sim p(\boldsymbol{\epsilon})\). : an (auxiliary) noise variable
  • Minibatch Version : \(\tilde{\mathcal{L}}^{M} \left( \boldsymbol{\theta, \phi}; \mathbf{X}^{M} \right)\).
    • Def.)
      • For
        • \(\mathbf{X} = \left\{ \mathbf{x}^{(i)} \right\}_{i=1}^N\). : the full dataset with \(N\). datapoints
        • \(\mathbf{X}^M = \left\{ \mathbf{x}^{(i)} \right\}_{i=1}^M\). : the minibatch
          • i.e.) A randomly drawn \(M\). sample datapoints from the full dataset \(\mathbf{X}\).
      • the minibatch SGVB estimator can be defined as
        • \(\mathcal{L}(\boldsymbol{\theta,\phi}; \mathbf{X}) \simeq \tilde{\mathcal{L}}^M (\boldsymbol{\theta,\phi}; \mathbf{X}^M) = \displaystyle\frac{N}{M}\sum_{i=1}^M \tilde{\mathcal{L}}(\boldsymbol{\theta,\phi};\mathcal{x}^{(i)})\).
• Props.)
  • Here, the posterior is assumed to be \(q_{\boldsymbol{\phi}}(\mathcal{z\vert x})\)..
    • However, this technique can be applied to the un-conditioned case.
      • i.e.) \(q_{\boldsymbol{\phi}}(\mathcal{z})\).
  • Using the reparameterization trick, we can reparameterize the random variable \(\tilde{\mathbf{z}}\sim q_{\boldsymbol{\phi}}(\mathcal{z\vert x})\). with
    • \(g_{\boldsymbol{\phi}} \left( \boldsymbol{\epsilon}, \mathbf{x} \right)\). : a differentiable transformation
    • \(\boldsymbol{\epsilon} \sim p(\boldsymbol{\epsilon})\). : an (auxiliary) noise variable
  • All SGVB estimators are differentiable.
    • i.e.) \(\nabla_{\boldsymbol{\theta, \phi}}\; \tilde{\mathcal{L}} \left( \boldsymbol{\theta}; \mathbf{X}^M \right)\). is obtainable.
    • Thus, we can apply stochastic optimization methods.
      • e.g.) SGD, Adagrad

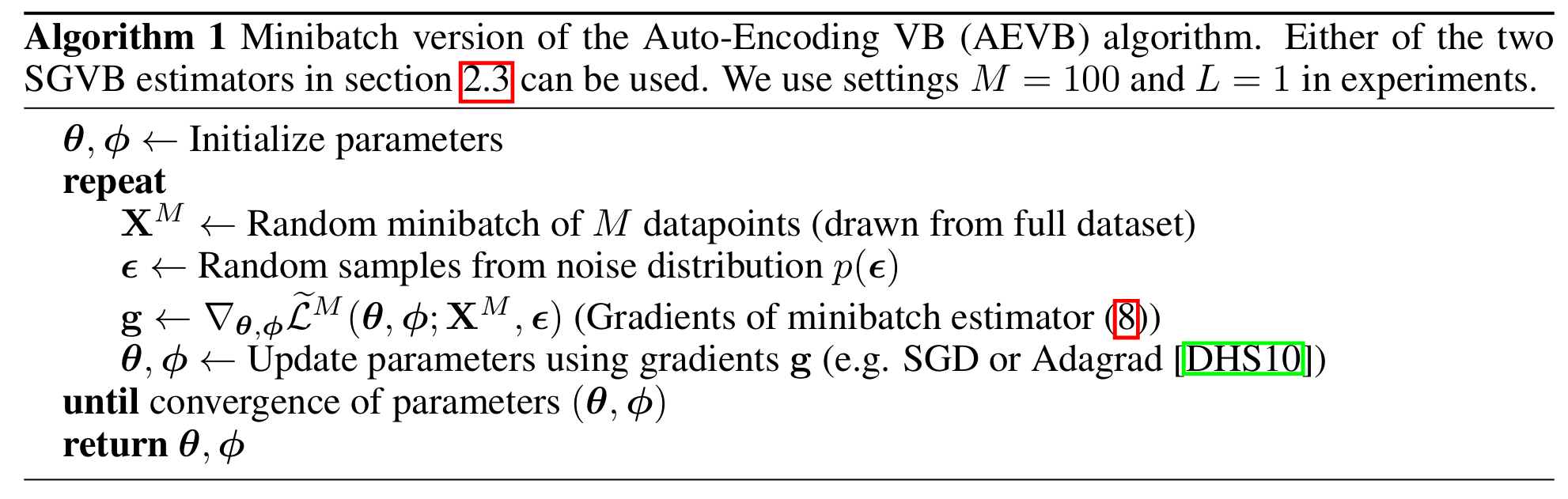

Algorithm) Auto-Encoding Variational Bayes (AEVB) Algorithm

2.4 The Reparameterization Trick

• Goal)
  • Make the sampling process differentiable w.r.t. \(\boldsymbol{\phi}\)., so that we can optimize the ELBO with gradient methods.
• How)
  • Let
    • \(\mathbf{z}\). : a continuous random variable
    • \(\mathbf{z}\sim q_{\boldsymbol{\phi}}(\mathcal{z\vert x})\). : some conditional distribution
  • Then we may express \(\mathbf{z}\). as
    • \(\mathbf{z} = g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x})\).
      • where
        • \(\boldsymbol{\epsilon}\). : an auxiliary variable with independent marginal distribution of \(p(\boldsymbol{\epsilon})\).
          • i.e.) \(\boldsymbol{\epsilon} \sim p(\boldsymbol{\epsilon})\).
        • \(g_{\boldsymbol{\phi}}(\cdot)\). : some vector-valued function parameterized by \(\boldsymbol{\phi}\).
• Prop.)
  • \(\mathbf{z} = g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x})\). can be used to rewrite an expectation w.r.t. \(q_{\boldsymbol{\phi}}(\mathcal{z\vert x})\). that is differentiable w.r.t. \(\boldsymbol{\phi}\).
    • Desc.)
      • Recall that we wanted to solve
        \(\begin{aligned} \arg\max_{\mathbf{x}} \log p_{\boldsymbol{\theta}}(\mathbf{x}) &\approx \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}) \\ &= \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\left[ \log q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x} \right) -\log \left( p_{\boldsymbol{\theta}} \left(\mathbf{z, x} \right) \right) \right] \\ &\approx \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\left[ f(\mathbf{z}) \right] \quad (\exists f(\mathbf{z})=\log p_{\boldsymbol{\theta}}(\mathbf{x,z})) \end{aligned}\).
      • To optimize the problem, we should get \(\nabla_{\boldsymbol{\phi}} \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})}\left[ f(\mathbf{z}) \right]\)..
      • This method enables
        \(\begin{array}{} \nabla_{\boldsymbol{\phi}} \mathbb{E}_{q_{\boldsymbol{\phi}}(\mathbf{z\vert x})}\left[ f(\mathbf{z}) \right] &= \nabla_{\boldsymbol{\phi}} \displaystyle\int & q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) & f(\mathbf{z}) & \text{d}\mathbf{z} \\ &= \nabla_{\boldsymbol{\phi}} \displaystyle\int & p(\boldsymbol{\epsilon}) & f(g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x})) & \text{d}\boldsymbol{\epsilon} \end{array}\).
      • With it, we can construct a differentiable estimator
        • \(\displaystyle\int q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) f(\mathbf{z}) \text{d}\mathbf{z} \simeq \frac{1}{L} \sum_{l=1}^L f(g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x}))\).
          • where \(\boldsymbol{\epsilon}^{(l)} \sim p(\boldsymbol{\epsilon})\).
    • Pf.)
      • Given the deterministic mapping \(\mathbf{z} = g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x})\)., we have
        \(\begin{aligned} q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) \prod_i \text{d} z_i &= p(\boldsymbol{\epsilon}) \prod_i \text{d} \epsilon_i \end{aligned}\).
      • Thus,
        • \(\displaystyle\int q_{\boldsymbol{\phi}}(\mathbf{z\vert x}) f(\mathbf{z}) \text{d}\mathbf{z} = \int p(\boldsymbol{\epsilon}) f(g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x})) \text{d}\boldsymbol{\epsilon}\).
• Suggested \(g_{\boldsymbol{\phi}}(\cdot)\). and \(\boldsymbol{\epsilon}\sim p(\boldsymbol{\epsilon})\).
  • Tractable inverse CDF existing case
    • e.g.)
      • Exponential, Cauchy, Logistic, Rayleigh, Pareto, Weibull, Reciprocal, Gompertz,Gumbel, and Erlangdistributions
  • “Location-Scale” family of distributions
    • e.g.)
      • Gaussian, Laplace, Elliptical, Student’s t, Logistic, Uniform, Triangular distributions
  • Composition of the above distributions
    • e.g.)
      • Log-Normal : exponentiation of normally distributed variable
      • Gamma : a sum over exponentially distributed variables
      • Dirichlet : weighted sumof Gamma variates
      • Beta
      • Chi-Squared
      • F distribution

e.g.) Gaussian

• We may assume \(z\sim p(z\mid x) = \mathcal{N}(\mu, \sigma^2)\)..
• Then a valid reparameterization \(g_{\boldsymbol{\phi}}(\boldsymbol{\epsilon}, \mathbf{x})\). is
  • \(z = \mu + \sigma \epsilon\).
    • where \(\epsilon\sim\mathcal{N}(0,1)\).
• Thus, we may get the estimator of
  \(\begin{aligned} \mathbb{E}_{\mathcal{N}(z;\mu,\sigma^2)}[f(z)] &= \mathbb{E}_{\mathcal{N}(\epsilon; 0,1)}[f(\mu + \sigma\epsilon)] \\ &\simeq \frac{1}{L}\sum_{l=1}^L f(\mu + \sigma\epsilon^{(l)}) \text{ where } \epsilon^{(l)}\sim\mathcal{N}(0,1) \end{aligned}\).

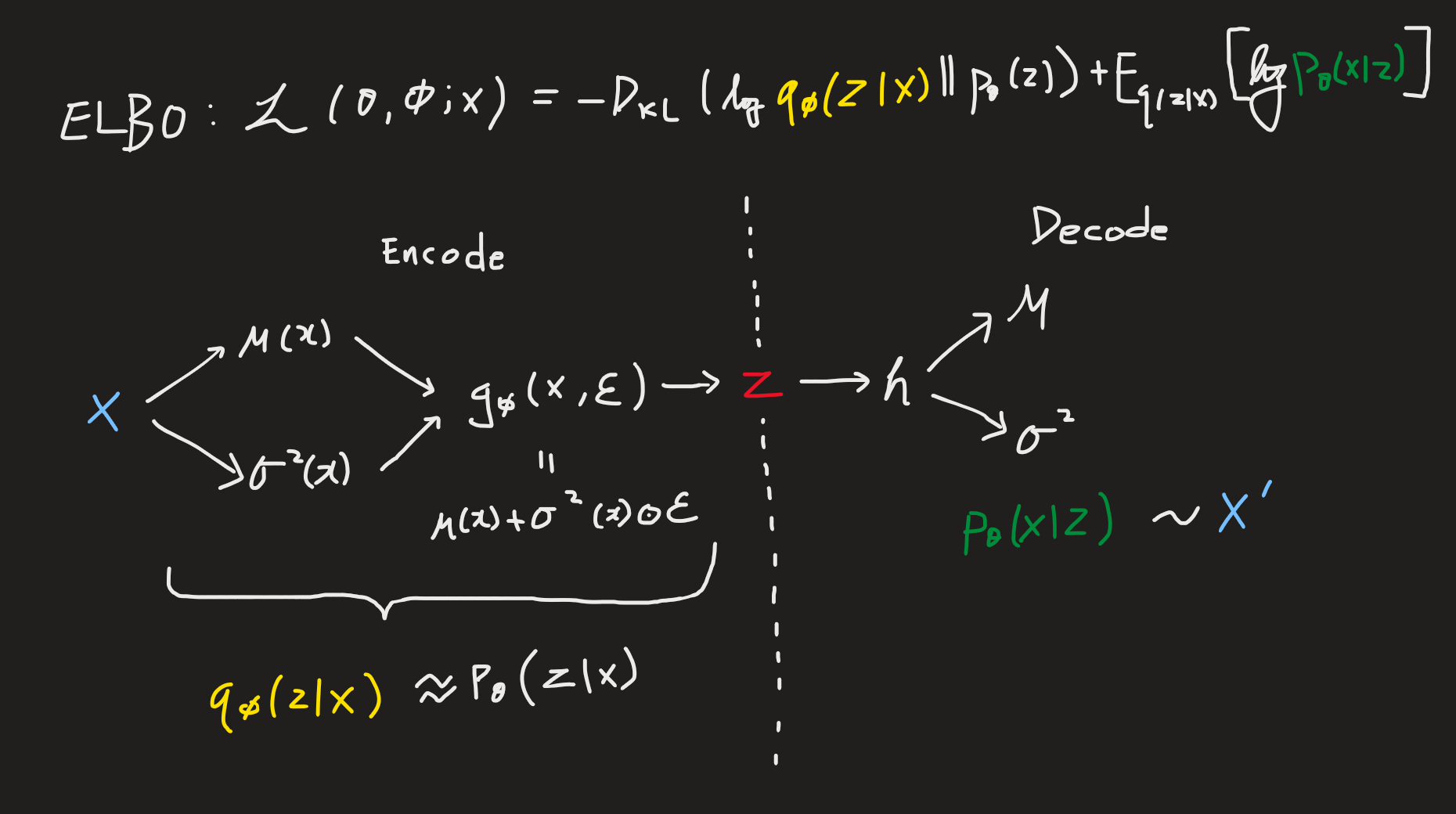

3. Example: Variational Auto-Encoder

• Objective)
  • Use a neural network for the probabilistic encoder \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\)..
    • Recall that the ELBO maximization problem was the KL-Divergence minimization problem: \(\underbrace{\log p_{\boldsymbol{\theta}} \left( \mathbf{x}^{(i)} \right)}_{\text{marginal likelihood of a datapoint}} = \underbrace{D_{KL} \left( \left. q_{\boldsymbol{\phi}} \left(\mathbf{z\vert x}^{(i)} \right) \right\Vert p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x}^{(i)} \right) \right)}_{\text{KL-div of the approximate from the true posterior}} + \mathcal{L}(\boldsymbol{\theta,\phi};\mathbf{x}^{(i)})\).
    • i.e.) Approximating \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\). to \(p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x} \right)\).
      • where \(p_{\boldsymbol{\theta}} \left(\mathbf{z\vert x} \right)\). is the posterior of the model \(p_{\boldsymbol{\theta}}(\mathbf{x,z})\).
• Problem Setting)
  • Let
    • \(p_{\boldsymbol{\theta}}(\mathbf{z}) = \mathcal{N}(\mathbf{z}; \mathbf{0, I})\). : the centered isotropic multivariate Gaussian prior
    • \(p_{\boldsymbol{\theta}}(\mathbf{x\vert z})\). : the likelihood from a MLP (a fully connected NN with a single hidden layer)
      • This could be either
        • a multivariate Gaussian in case of real-valued data
        • Bernoulli in case of binary data
      • This is the output of this model.
        • Why?)
          • We want to generate \(\mathbf{x}'\). by
            • \(\mathbf{z}\sim p(\mathbf{z}) \rightarrow \mathbf{x}'\vert\mathbf{z} \sim p(\mathbf{x\vert z})\).
  • Then, the posterior \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\). is intractable.
  • Thus, we should set \(q_{\boldsymbol{\phi}}(\mathbf{z\vert x})\). to approximate \(p_{\boldsymbol{\theta}}(\mathbf{z\vert x})\).
  • We may choose
    • \(\log q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)}) = \log\mathcal{N}(\mathbf{z};\boldsymbol{\mu}^{(i)}, \boldsymbol{\sigma}^{2(i)}\mathbf{I})\).
      • where
        • \(\boldsymbol{\phi}^{(i)} = \{\boldsymbol{\mu}^{(i)}, \boldsymbol{\sigma}^{(i)}\}\). are outputs of the encoding MLP
  • Now, we should sample \(\mathbf{z}\sim q_{\boldsymbol{\phi}}(\mathbf{z\vert x}^{(i)})\).
    • Using the reparameterization trick, we can sample
      • \(\mathbf{z}^{(i,l)} = g_{\boldsymbol{\phi}}\left( \mathbf{x}^{(i)}, \boldsymbol{\epsilon}^{(l)} \right) = \boldsymbol{\mu}^{(i)} + \boldsymbol{\sigma}^{(i)}\odot \boldsymbol{\epsilon}^{(l)}\).
        • where
          • \(\boldsymbol{\epsilon}^{(l)}\sim\mathcal{N}(\mathbf{0, I})\).
          • \(\odot\). denotes the element-wise (Hadamard) product
        • This \(g_{\boldsymbol{\phi}}\). can be seen as the encoder : \(g_{\boldsymbol{\phi}}:\mathbf{X}\rightarrow\mathbf{Z}\).
  • With \(\mathbf{z}\). we sampled we may decode using the Neural Network as
    • \(\log p(\mathbf{x\vert z}) = \log \mathcal{N}(\mathbf{x};\boldsymbol{\mu,\sigma^2}\mathbf{I})\).
      • where
        • \(\boldsymbol{\mu} = \mathbf{W}_4\mathbf{h} + \mathbf{b}_4\).
        • \(\boldsymbol{\sigma^2} = \mathbf{W}_5\mathbf{h} + \mathbf{b}_5\).
        • \(\mathbf{h} = \tanh(\mathbf{W}_3\mathbf{z} + \mathbf{b}_3)\).
