(DM Reconst.) Ch.2 Variational Perspective - From VAEs to DDPM

Diffusion Model Conceptual Reconstruction following The Principles of Diffusion Models

---

Hozy Summary

• VAE (Naive Autoencoder $\rightarrow$ VAE $\rightarrow$ Gaussian VAE) cannot resolve the blurriness issue due to the averaging effect.
• HVAE enables more expressive power with the progressive structure (deep, layered hierachical network).
  • Still, HVAE causes the posterior collapse problem if the layers get too deep.
    • i.e. Loss of control in generation.
• DDPM
  • resembles…
    • the encoder-decoder structure of the VAEs, with forward–reveres structure
    • the deep layered structure of HVAE employing the timestep $t$
  • but
    • has the fixed encoder (not the target of learning)
    • has no per-level KL terms
      • instead well conditioned denoising subproblems from large to small noise
    • yields stable optimization
    • has high sample quality while preserving a coarse-to-fine hierarcy over time (noise)
  • yet
    • has slow sampling speed for accuracy

---

2.1 Variational Autoencoder (VAE)

• hozy review on Kingma et al.

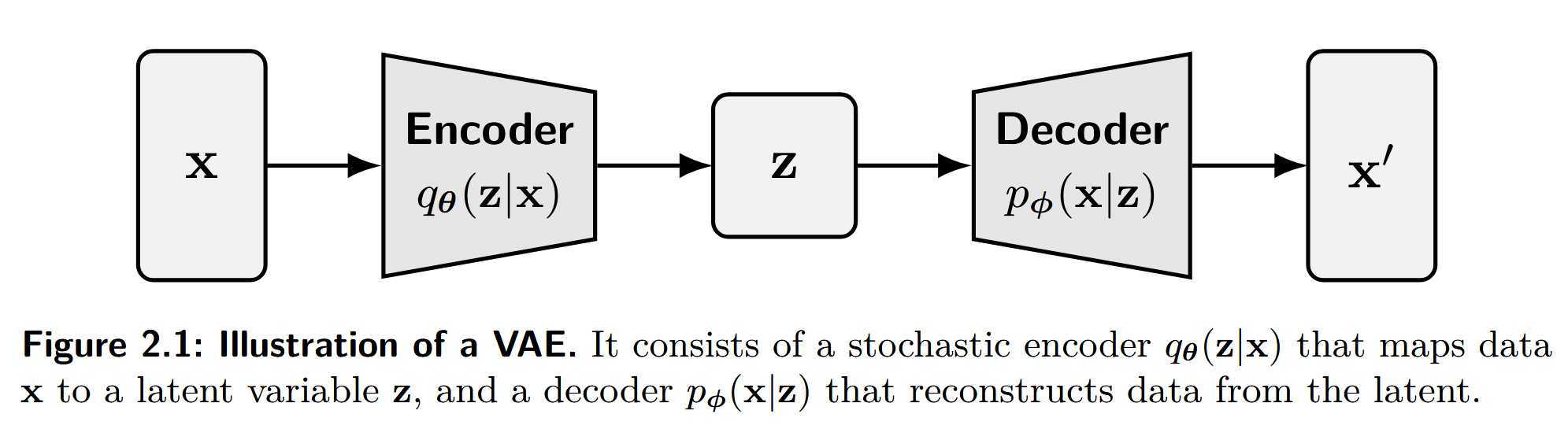

Model) Naive Autoencoder

• Structure)
  • Original Data $\rightarrow$ Encoder $\rightarrow$ Latent $\rightarrow$ Decoder $\rightarrow$ Reconstructed Data
• Training)
  • Minimzie the reconstruction error between original input and reconsturction.
• Drawback)
  • Unstructured latent space
    • i.e.) Latent codes produce meaningless outputs.
    • Sol.) VAE

Model) Variational Autoencoder

Kingma et al. 2013

• Structure)
  • Decoder (Generator)
    • Settings)
      • $\mathbf{x}$ : observed variable
      • $\mathbf{z}\sim p_{\text{prior}}$ : latent variable
        • where $p_{\text{prior}} := \mathcal{N}(\mathbf{0,I})$
    • Goal)
      • Map $\mathbf{z}$ back to data space.
      • Sample $\mathbf{z}\sim p_{\text{prior}}$ and decode into $\mathbf{x}\sim p_\phi(\mathbf{x\mid z})$.
    • Def.)
      • $p_\phi(\mathbf{x\mid z})$ : a decoder distribution
    • Marginal likelihood)
      • $p_\phi(\mathbf{x}) = \displaystyle\int p_\phi(\mathbf{x\mid z}) p(\mathbf{z}) \text{d}\mathbf{z}$
        • Problem)
          • Integral over $\mathbf{z}$ is intractable!
          • Sol.) Variational step
  • Encoder (Inference Network)
    • Goal)
      • Given an observation $\mathbf{x}$, map to the latent code $\mathbf{z}$.
        • i.e.) $p_\phi(\mathbf{z\mid x})$
    • Problem)
      • $p_\phi(\mathbf{z\mid x})$ is intractable.
        • Why?)
          • $p_\phi(\mathbf{z\mid x}) = \displaystyle\frac{p_\phi(\mathbf{x\mid z}) p(\mathbf{z})}{p_\phi(\mathbf{x})}\quad(\because\text{Bayes’ Rule})$
          • $p_\phi(\mathbf{x})$ was intractable.
      • Sol.) Variational step.
• Tech.)
  • Variational Step
    • Goal.)
      • Find a encoder $q_\theta(\mathbf{z\mid x})$ s.t. $q_\theta(\mathbf{z\mid x}) \approx p_\phi(\mathbf{z\mid x})$
      • How?)
        • Parameterize with a neural network.
    • Optimization)
      • Minimize the ELBO loss.

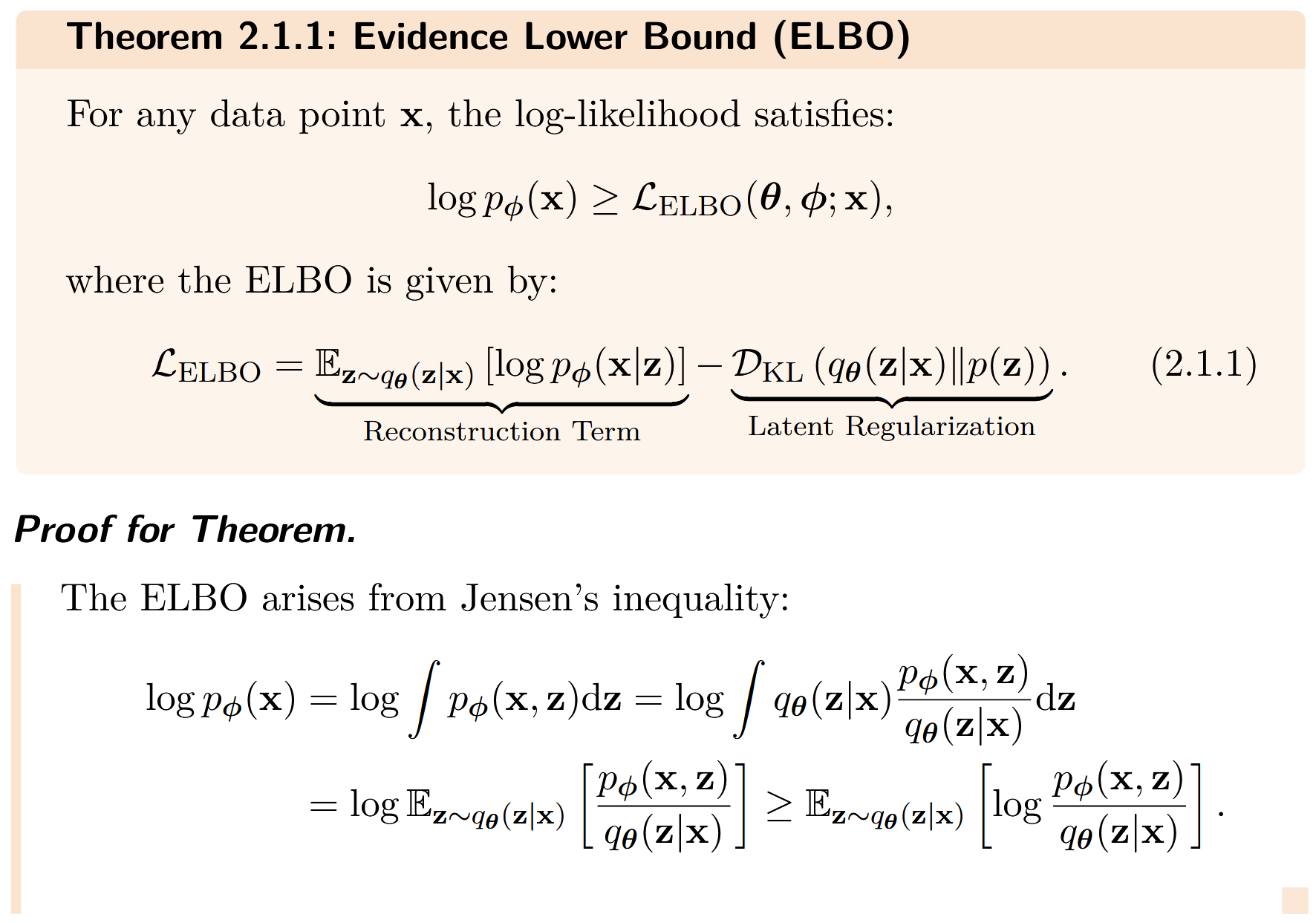

Concept) Evidence Lower Bound (ELBO)

• Props.)
  • Reconstruction Term
    • Encourages accurate recovery of $\mathbf{x}$ from the latent $\mathbf{z}$.
    • With Gaussian VAE guarantees the reconstruction loss of an autoencoder.
    • (RISK) Optimizing this alone has risk of memorizing the training data!
  • Latent Regularization (KL)
    • Encourages $q_\theta(\mathbf{z\mid x})$ (the encoder distribution) to stay close to $p_{\text{prior}}$ (the simple prior).
    • Shapes the latent space into a smooth and continuous structure.

Model) Gaussian VAE

• Goal)
  • Employ Gaussian distributions for both the encoder and decoder.
• Def.)
  • Encoder : $q_\theta(\mathbf{z\mid x}) := \mathcal{N}\left(\mathbf{z};\;\mu_\theta(\mathbf{x}), \text{diag}\left(\boldsymbol{\sigma}^2_\theta(\mathbf{x})\right)\right)$
    • where
      • $\mu_\theta(\mathbf{x}) : \mathbb{R}^D\rightarrow\mathbb{R}^d$
      • \(\boldsymbol{\sigma}^2_\theta : \mathbb{R}^D\rightarrow\mathbb{R}^d_+\).
  • Decoder : $p_\phi(\mathbf{z\mid x}) := \mathcal{N}\left(\mathbf{x};\;\mu_\phi(\mathbf{z}), \sigma^2\mathbf{I} \right)$
    • where
      • $\mu_\phi(\mathbf{x}) : \mathbb{R}^d\rightarrow\mathbb{R}^D$
      • Fixed variance with $\sigma\gt0$

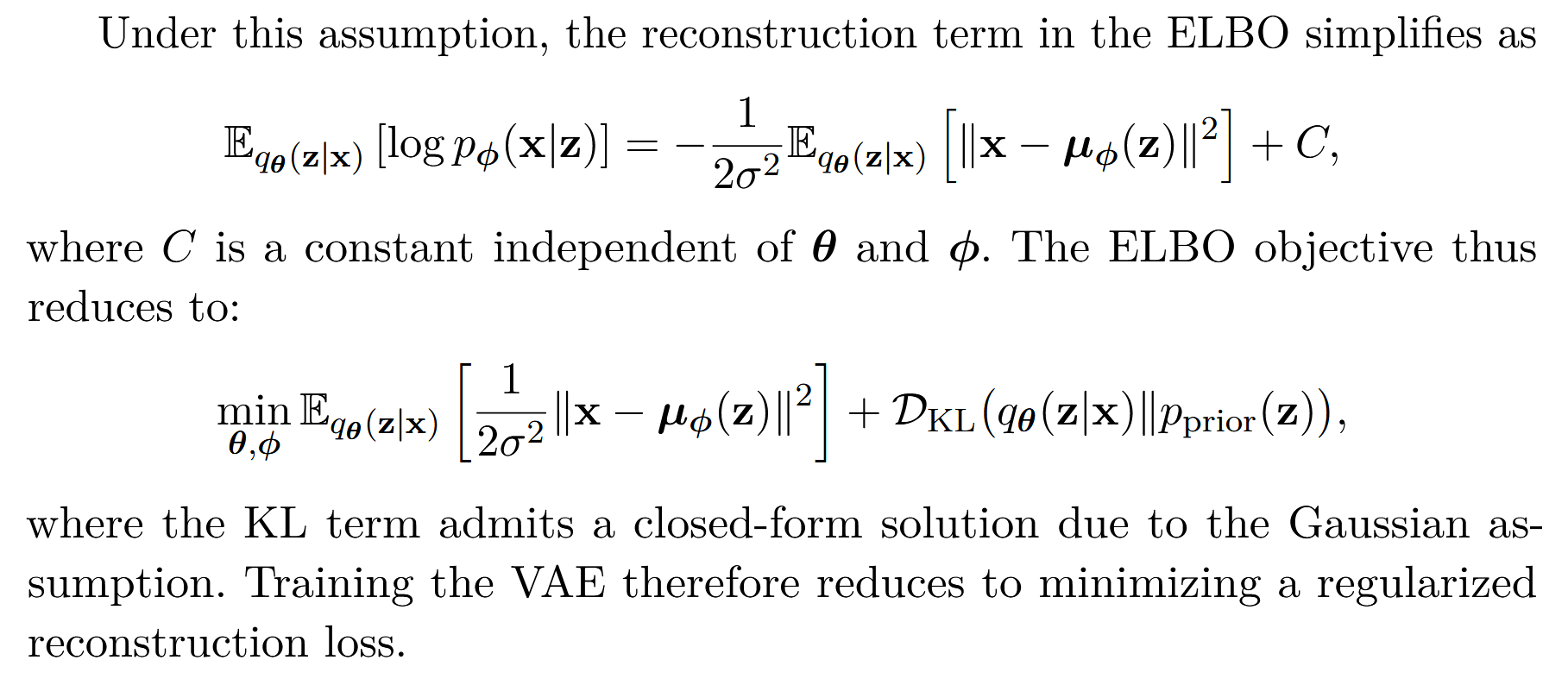

• Optimization) ELBO loss

• Drawback)
  • Blurry Generation
    • Why?)
      • Averaging effect over conflicting modes

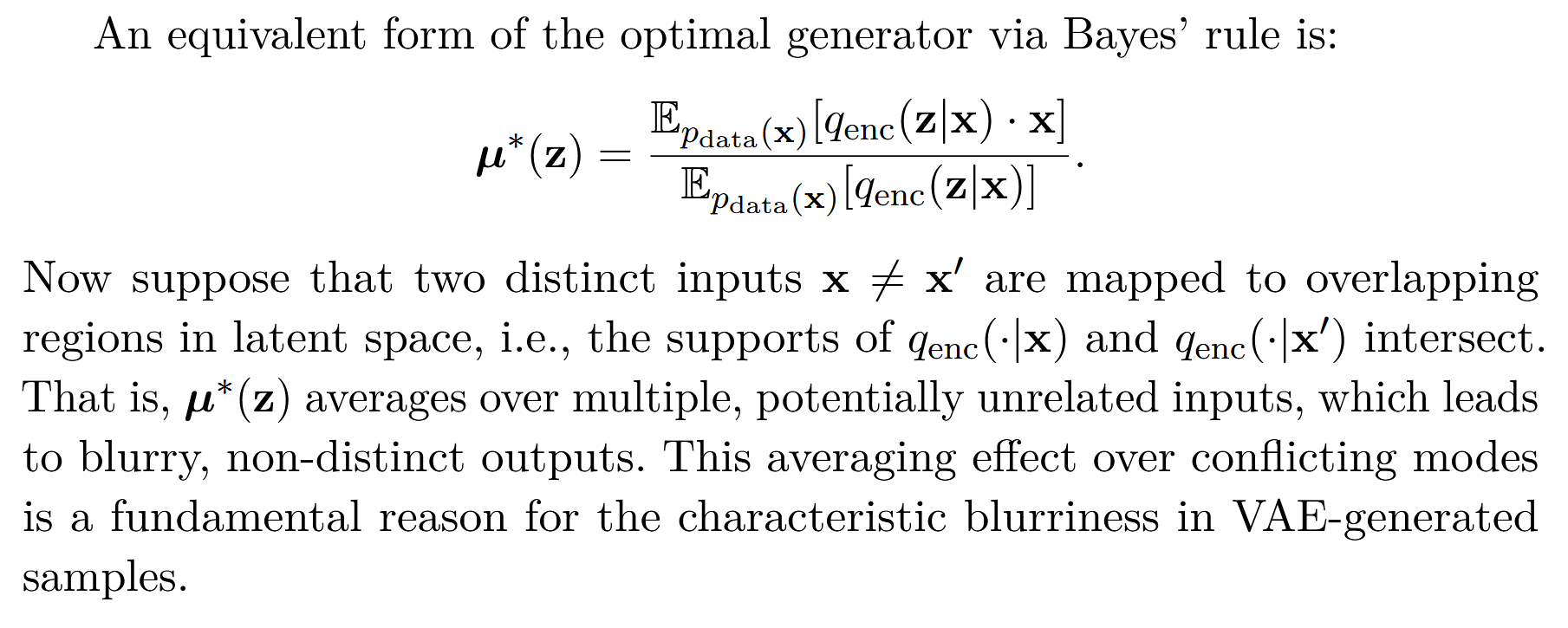

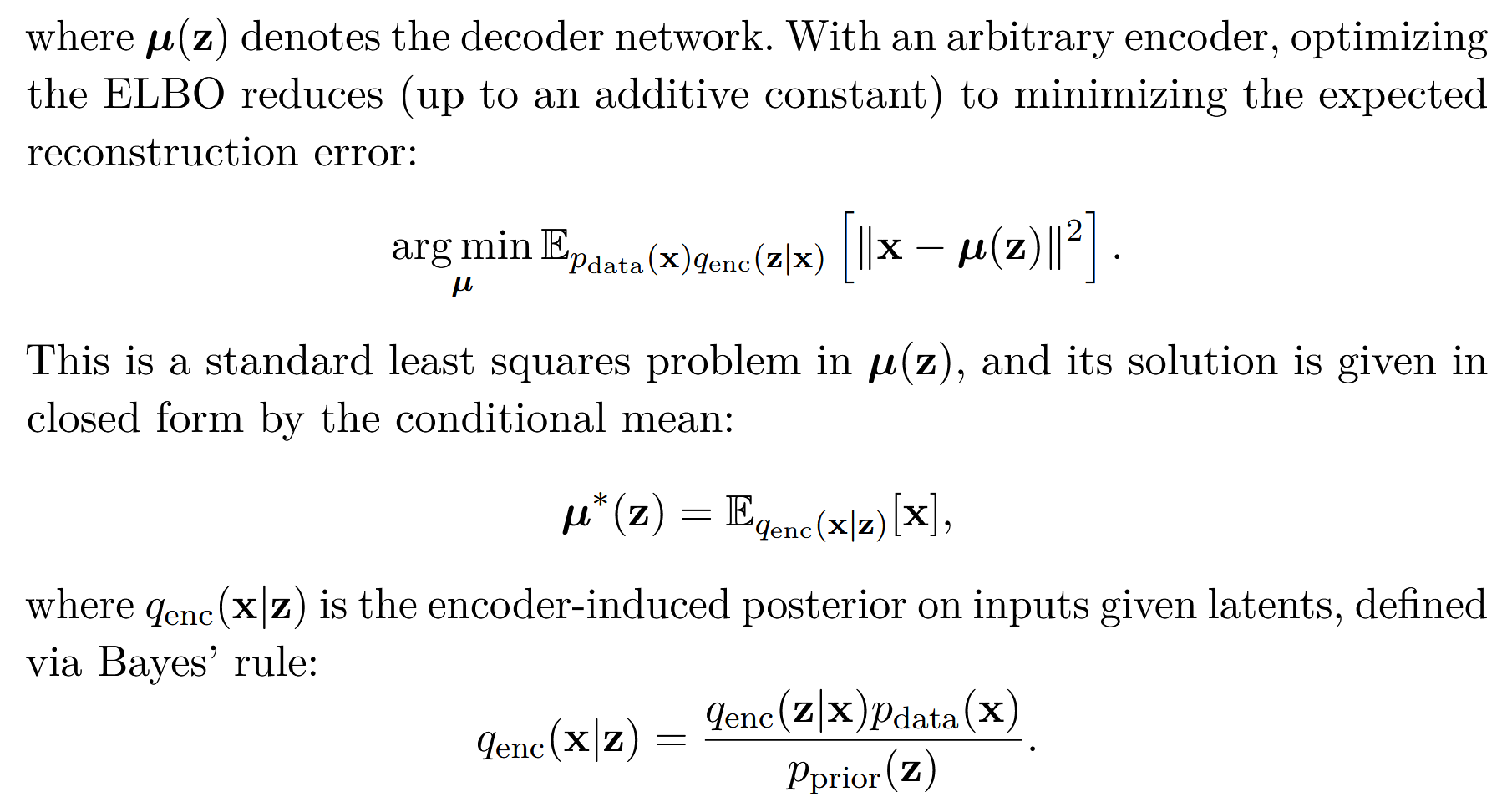

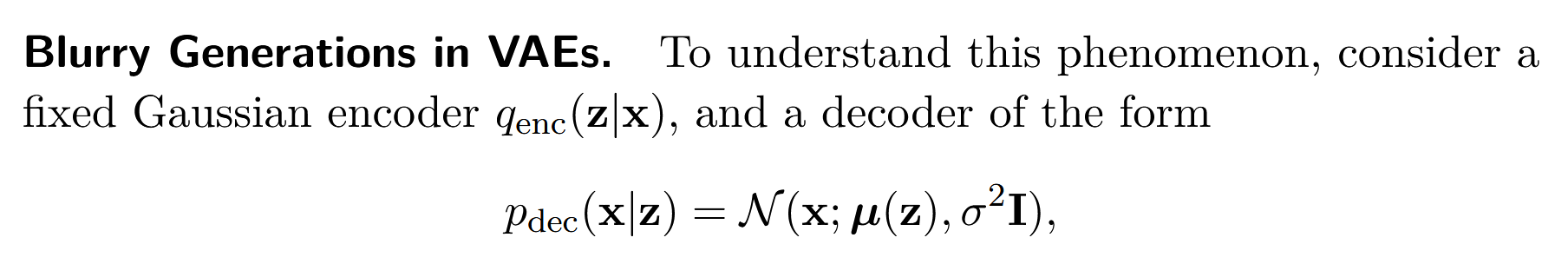

Desc of the averaging effect

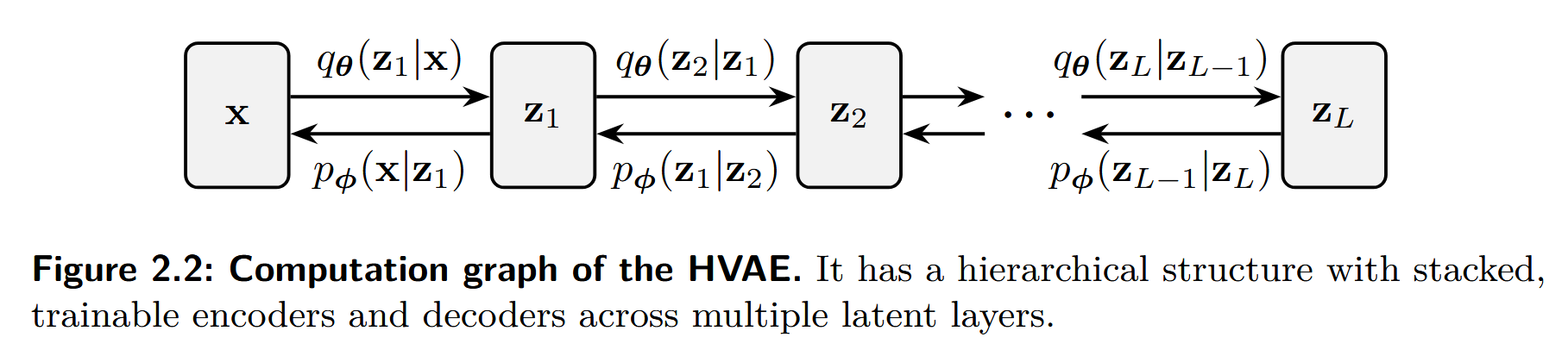

Model) Hierarchical VAE (HVAE)

Vahdat et al., 2020

• Structure)
  • Decoding
    • Forms chain of conditional priors
    • Top-down Hierarchy of multiple layers of latent variables.
      • Top-down factorization of the joint distributions
        • \(\displaystyle p_\phi(\mathbf{x, z}_{1:L}) = p_\phi(\mathbf{x, z}_{1}) \prod_{i=2}^L p_\phi(\mathbf{z}_{i-1}\mid\mathbf{z}_{i}) p(\mathbf{z}_{L})\).
    • Marginal data distribution
      • \(p_{\text{HVAE}}(\mathbf{x}) := \displaystyle\int p_\phi(\mathbf{x, z}_{1:L}) \text{d}\mathbf{z}_{1:L}\).
  • Encoding)
    • Bottom-up Markov Factorization
      • \(q_\theta(\mathbf{z}_{1:L}\mid\mathbf{x}) = q_\theta(\mathbf{z}_{1}\mid\mathbf{x}) \prod_{i=2}^L q_\theta(\mathbf{z}_i\mid\mathbf{z}_{i-2})\).
• Optimization)

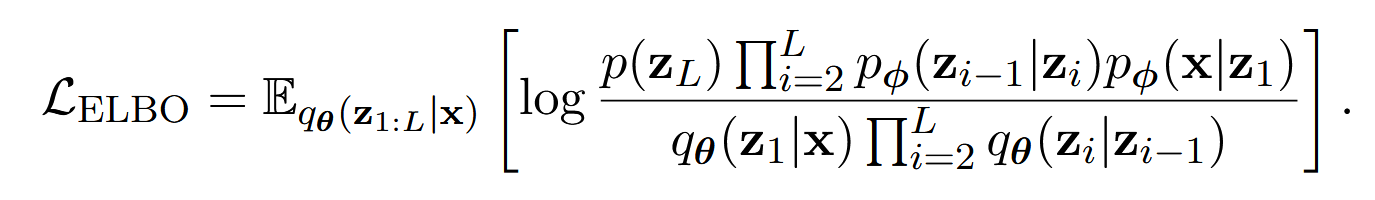

  • ELBO loss

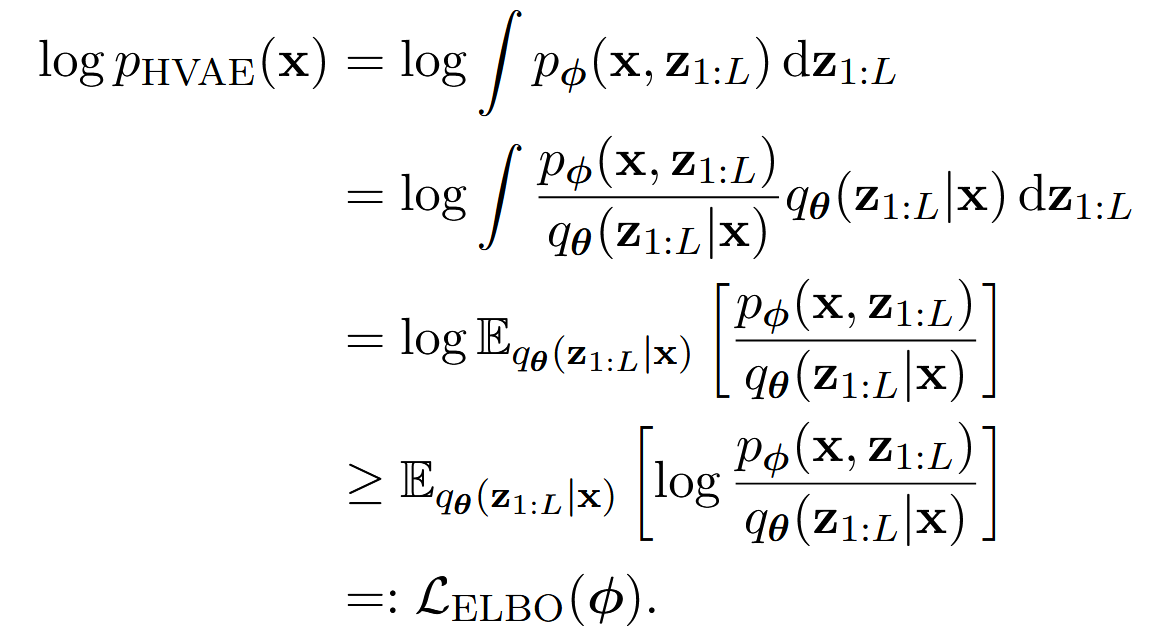

Derivation

• Desc.)
  • Distributed information penalty across levels and localizes learning signals through the adjacent KL terms.

• Advantages)
  • Captures data features at multiple levels of abstraction.
  • Boosts expressive power
  • Mirrors the compositional nauure of real-world data
  • Utilizing the deep, stacked layers to build data
    • Deep networks!
• Limits)
  • Single Gaussian variational family cannot match the multimodal $p_\phi(\mathbf{z\mid x})$.
  • If the decoder is too expressive, the model may suffer from posterior collapse.
    • i.e.) When decoder can model the data with out using $\mathbf{z}$, we lose control of the generation.

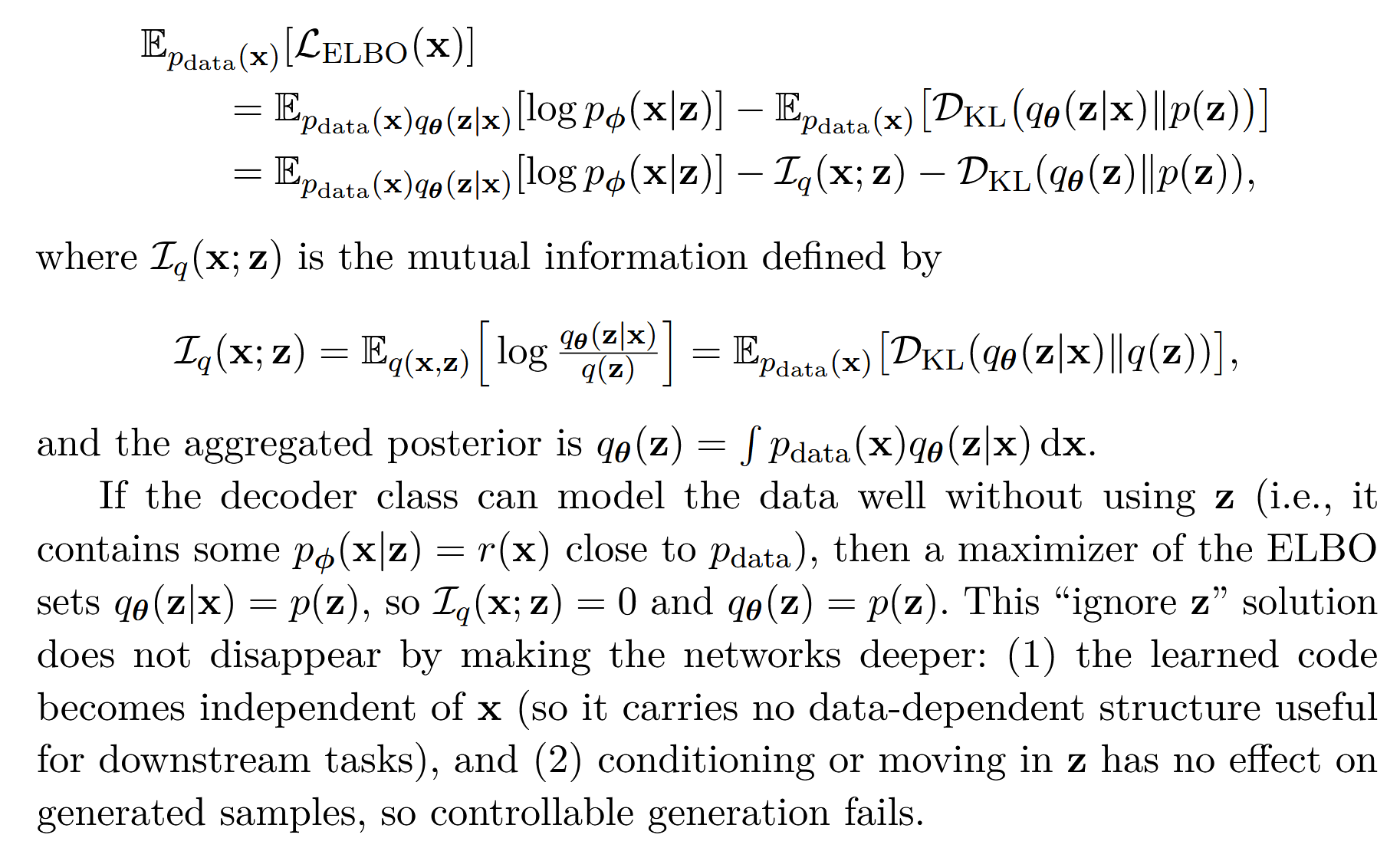

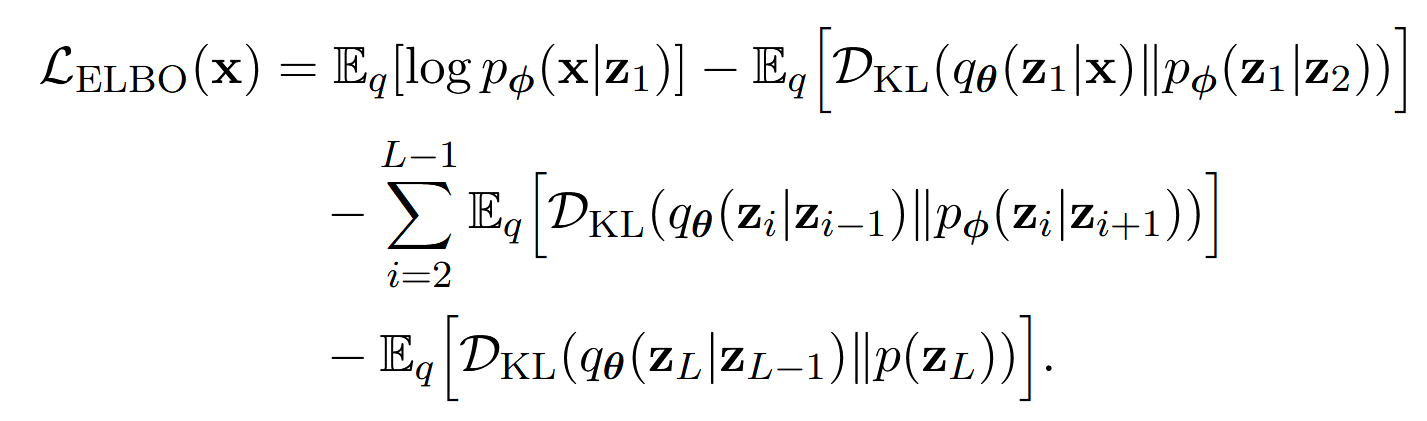

Desc. using the mutual information derived from the ELBO loss

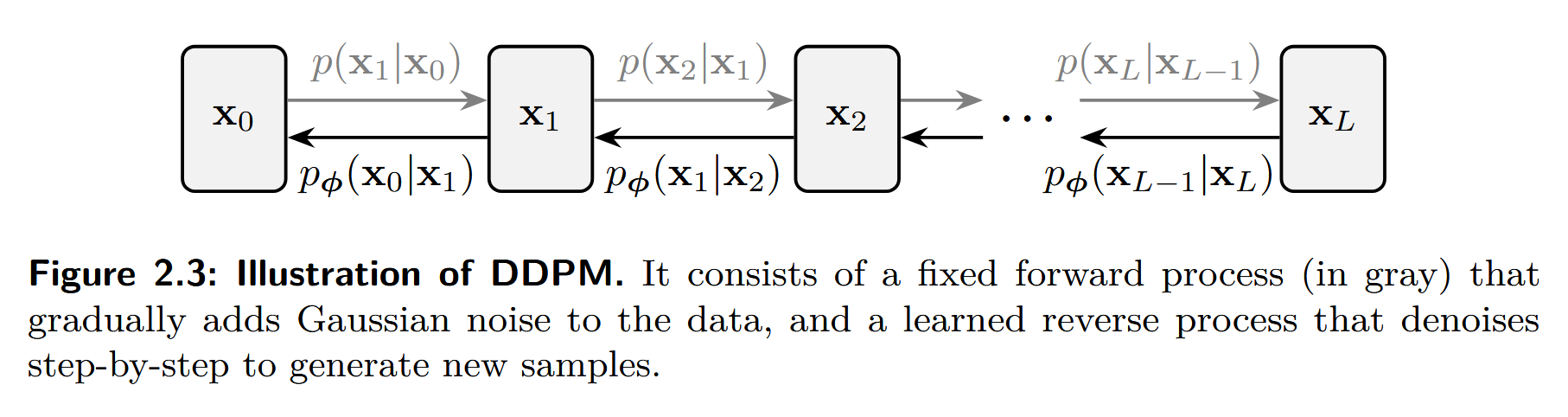

2.2 Denoising Diffusion Probabilistic Models (DDPM)

Sohl-Dickstein et al., 2015; Ho et al., 2020

• hozy review on Ho et al.

Concept) Forward Process (Fixed Encoder)

• Goal)
  • Gradually corrupt data by injecting Guassian noise over multiple steps via a transition kernel of
    \(\begin{aligned} p(\mathbf{x}_{i}\mid \mathbf{x}_{i-1}) &:= \mathcal{N}\left( \mathbf{x}_i;\; \sqrt{1-\beta_i^2} \mathbf{x}_{i-1},\; \beta_i^2\mathbf{I} \right) \\ &\triangleq \mathcal{N}\left( \mathbf{x}_i;\; \alpha_i \mathbf{x}_{i-1},\; (1-\alpha_i^2)\mathbf{I} \right) & \left( \alpha_i \stackrel{\text{put}}{=} 1-\beta_i^2 \right) \\ \end{aligned}\).
    • where
      • \(\mathbf{x}_0\sim p_{\text{data}}\) : a sample drawn from the real data distribution
      • \(\left\{ \beta_i \right\}_{i=1}^L\) : a pre-determined monotoncially increasing noise schedule for \(\beta_i\in(0,1), \forall i\)
    • which is equivalent to updating $\mathbf{x}_i$ as
      • \(\mathbf{x}_i = \alpha_i \mathbf{x}_{i-1} + \beta_i \epsilon_i\).
        • for \(\epsilon_i\sim\mathcal{N}(\mathbf{0, I})\)
• Desc.)
  • Closed-Form Expression for the distribution of noisy samples at step $i$
    • \(p(\mathbf{x}_{i}\mid \mathbf{x}_{0}) = \mathcal{N}\left( \mathbf{x}_i;\; \bar{\alpha}_i\mathbf{x}_0, (1-\bar{\alpha}_i^2)\mathbf{I} \right)\).
      • where \(\bar{\alpha} := \displaystyle\prod_{k=1}^i\sqrt{1-\beta_k^2} = \prod_{k=1}^k \alpha_k\)
  • Sampled $\mathbf{x}_i$
    • \(\bar{\alpha}_i\mathbf{x}_0 + \sqrt{1-\bar{\alpha}_i^2}\epsilon\).
      • for \(\epsilon_i\sim\mathcal{N}(\mathbf{0, I})\)
  • Convergence of the forward process
    • If \(\left\{ \beta_i \right\}_{i=1}^L\) is an increasing sequence
      • \(p_L(\mathbf{x}_L\mid\mathbf{x}_0)\rightarrow\mathcal{N}(\mathbf{0,1})\) as $L\rightarrow\infty$
    • Justifying $p_{\text{prior}} := \mathcal{N}(\mathbf{0,I})$

Concept) Reverse Process (Learnable Decoder)

• Goal)
  • Reverse the noise corruption through a parameterized distribution \(p_\phi(\mathbf{x}_{i-1}\mid \mathbf{x}_{i})\)
• Method)
  • To get the tractable marginal, we condition the intermediate noisy data on the clean data sample.
    • Refer to the DDPM optimization problem below.

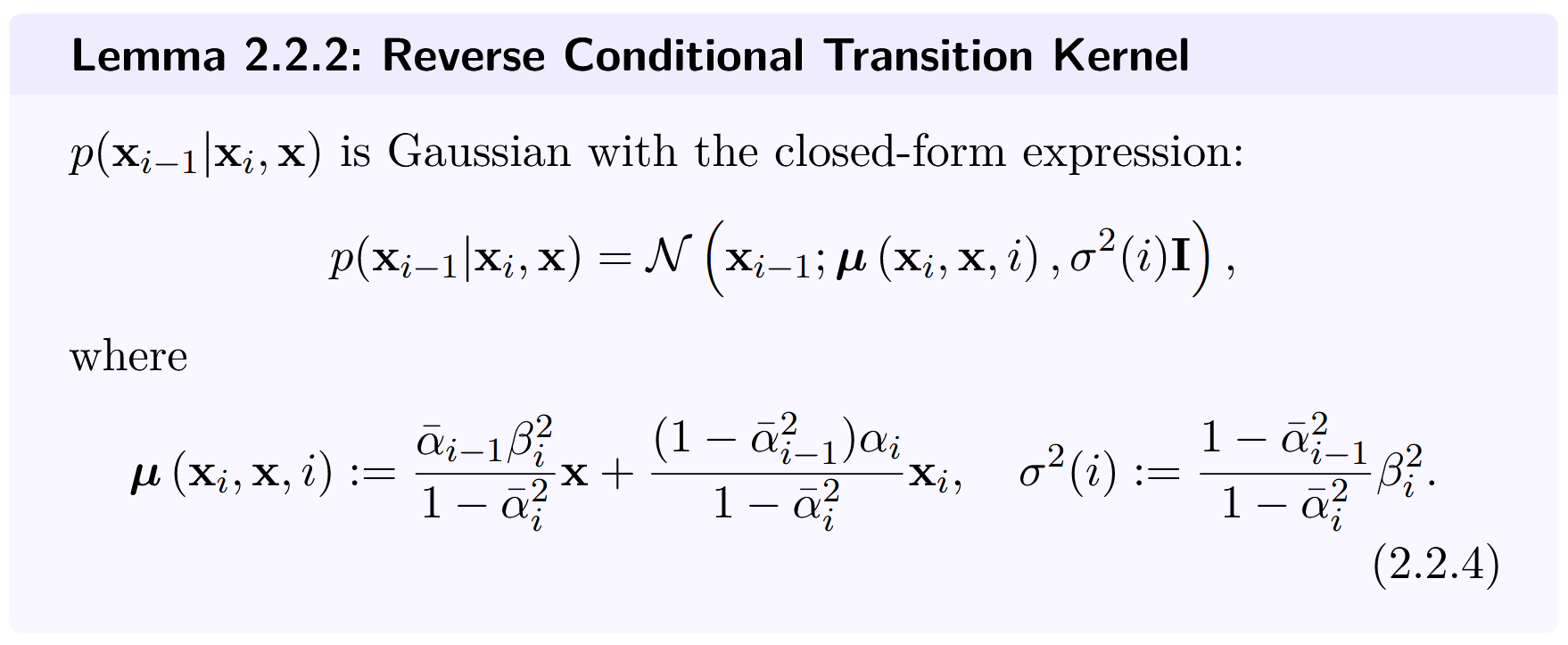

  • Then we may get the closed form reverse conditional transition kernel of

• Parameterization)
  • \(p_\phi(\mathbf{x}_{i-1}\mid\mathbf{x}_i) := \mathcal{N}\left( \mathbf{x}_{i-1};\; \boldsymbol{\mu}_{\phi}(\mathbf{x}_i, i), \sigma^2(i)\mathbf{I} \right)\).
    • where
      • \(\boldsymbol{\mu}_{\phi}(\cdot, i) : \mathbb{R}^D\rightarrow\mathbb{R}^D\) : a learnable mean function
      • $\sigma^2(i)$ : a fixed variance function given from the reverse conditional transition kernel above.

Tech) Optimization of DDPM

• Goal)
  • Minimize the expected KL divergence of
    • \(\mathbf{E}_{p_i(\mathbf{x}_i)}\left[ \mathcal{D}_{\text{KL}}\left( p(\mathbf{x}_{i-1}\mid \mathbf{x}_{i}) \Vert p_\phi(\mathbf{x}_{i-1}\mid \mathbf{x}_{i}) \right) \right]\).
• Problem)
  • \(p(\mathbf{x}_{i-1}\mid \mathbf{x}_{i})\) is intractable.
    • Why?)
      • \(p_i(\mathbf{x}_i), p_{i-1}(\mathbf{x}_{i-1})\) are intractable where \(p(\mathbf{x}_{i-1}\mid \mathbf{x}_{i}) = p(\mathbf{x}_{i}\mid \mathbf{x}_{i-1}) \displaystyle\frac{p_{i-1}(\mathbf{x}_{i-1})}{p_i(\mathbf{x}_i)}\)
      • We don’t know $p_{\text{data}}$ so as \(p_i(\mathbf{x}_i)=\displaystyle\int p_i(\mathbf{x}_i\mid\mathbf{x}_0) p_{\text{data}}(\mathbf{x}_0)\text{d}\mathbf{x}_0\)

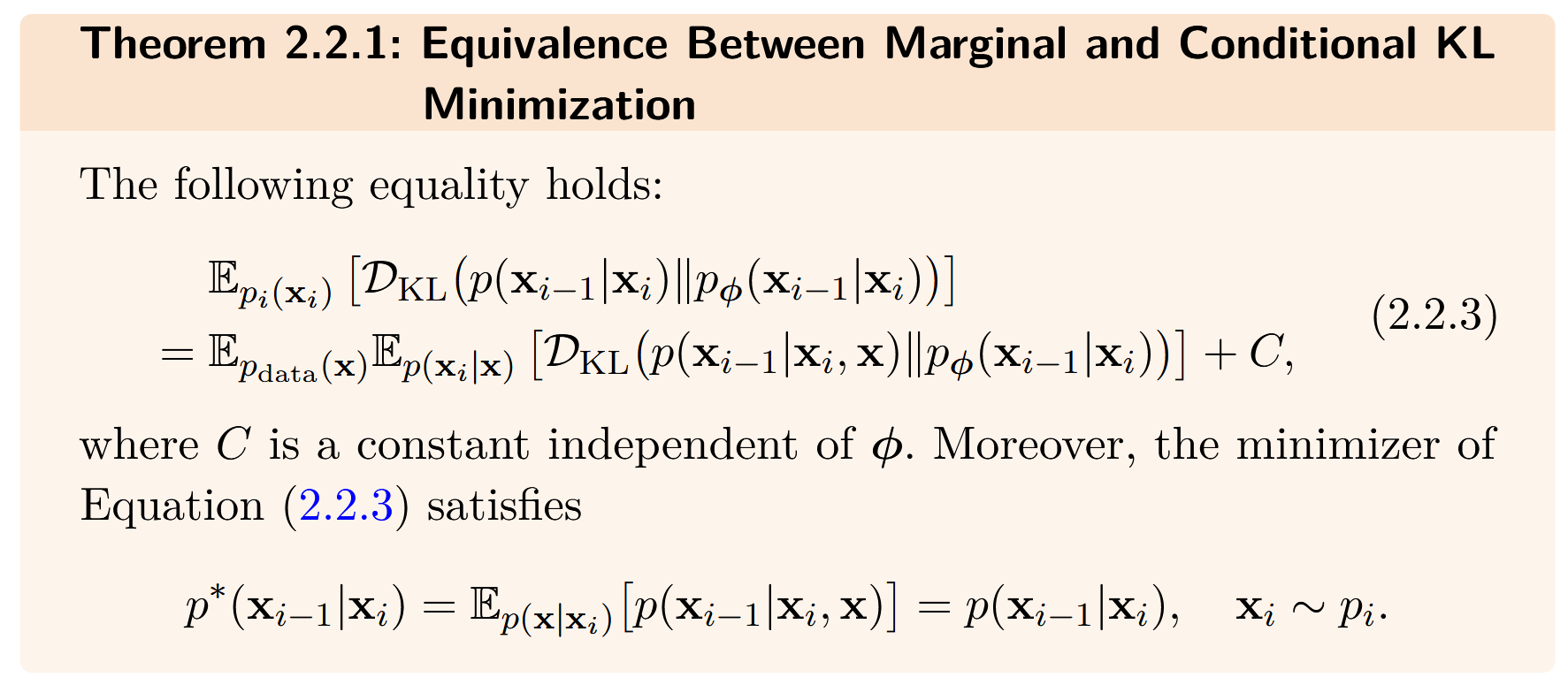

• Sol.)
  • Condition the reverse transition on a clean data sample $\mathbf{x}$
    • i.e.) \(p(\mathbf{x}_{i-1}\mid \mathbf{x}_{i}, \mathbf{x}) = p(\mathbf{x}_{i}\mid \mathbf{x}_{i-1}) \displaystyle\frac{p_{i-1}(\mathbf{x}_{i-1} \mid \mathbf{x})}{p_i(\mathbf{x}_i \mid \mathbf{x})}\).
    • How does this work?
      1. Markov forward process assumption enables \(p(\mathbf{x}_{i}\mid \mathbf{x}_{i-1}, \mathbf{x}) = p(\mathbf{x}_{i}\mid \mathbf{x}_{i-1})\)
      2. Gaussian assumption on all involved distributions.

Tech.) DDPM’s Loss Function

• Def.)
  • \(\mathcal{L}_{\text{DDPM}}(\phi) := \displaystyle\sum_{i=1}^L\frac{1}{2\sigma^2(i)}\mathbb{E}_{\mathbf{x}_0}\mathbb{E}_{p(\mathbf{x}_i\mid\mathbf{x}_0)}\left[ \left\Vert \boldsymbol{\mu}_\phi(\mathbf{x}_i, i) - \boldsymbol{\mu}(\mathbf{x}_i, \mathbf{x}_0, i) \right\Vert_2^2 \right]\).

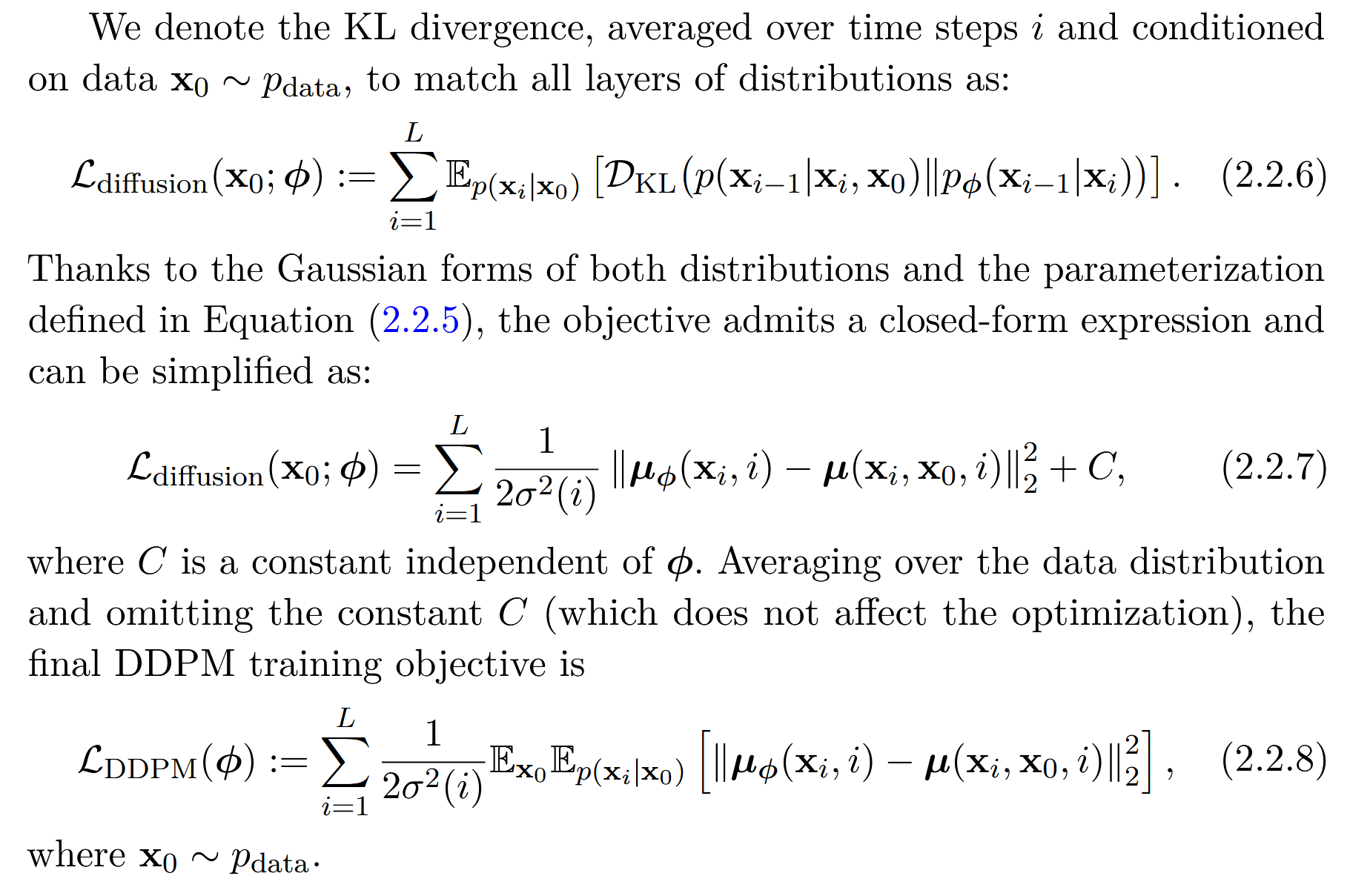

Derivation of the Loss

• Parameterizations of \(\mu_\phi(\mathbf{x}_i, i)\)
  • $\epsilon$-prediction
  • $\mathbf{x}$-prediction
    • cf.) Both are mathematically equivalent.
      • While the true forward process uses ground-truth $\mathbf{x}_0$ and real noise $\epsilon$, our predictions must obey this exact same structural identity:
        \(\begin{aligned} \mathbf{x}_i = \bar{\alpha}_i\mathbf{x}_{\phi}(\mathbf{x}_i, i) + \sqrt{1-\bar{\alpha}_i^2}\epsilon_\phi(\mathbf{x}_i, i) &\Leftrightarrow \mathbf{x}_{\phi}(\mathbf{x}_i, i) = \frac{1}{\bar{\alpha}_i} \left( \mathbf{x}_i - \sqrt{1-\bar{\alpha}_i^2}\epsilon_\phi(\mathbf{x}_i, i) \right) \\ &\Leftrightarrow \epsilon_\phi(\mathbf{x}_i, i) = \frac{1}{\sqrt{1-\bar{\alpha}_i^2}} \left( \mathbf{x}_i - \bar{\alpha}_i\mathbf{x}_{\phi}(\mathbf{x}_i, i) \right) \\ \end{aligned}\)

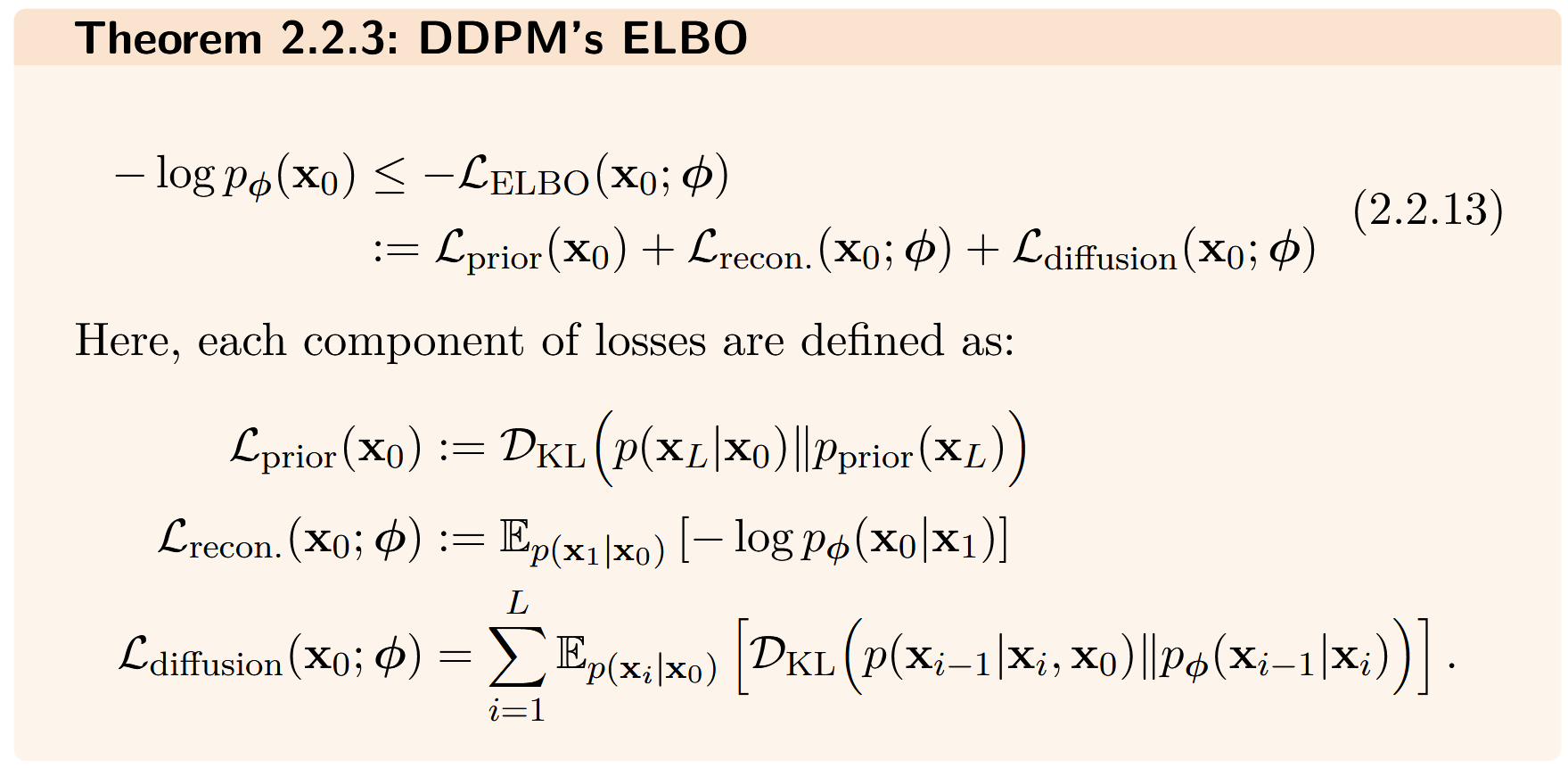

• ELBO

Tech.) ε-prediction

• Goal)
  • Train a neural network to estimate the noise added.
• Def.)
  • \(\mathcal{L}_{\text{simple}}(\phi) := \mathbb{E}_{i}\mathbb{E}_{\mathbf{x}\sim p_{\text{data}}}\mathbb{E}_{\epsilon\sim\mathcal{N}(\mathbf{0,I})} \left[ \Vert \epsilon_\phi(\mathbf{x}_i, i) - \epsilon \Vert_2^2 \right]\).
    • where \(\mathbf{x}_i = \bar{\alpha}_i\mathbf{x}_0 + \sqrt{1-\bar{\alpha}_i^2} \epsilon\) with \(\mathbf{x}_0\sim p_{\text{data}}\).

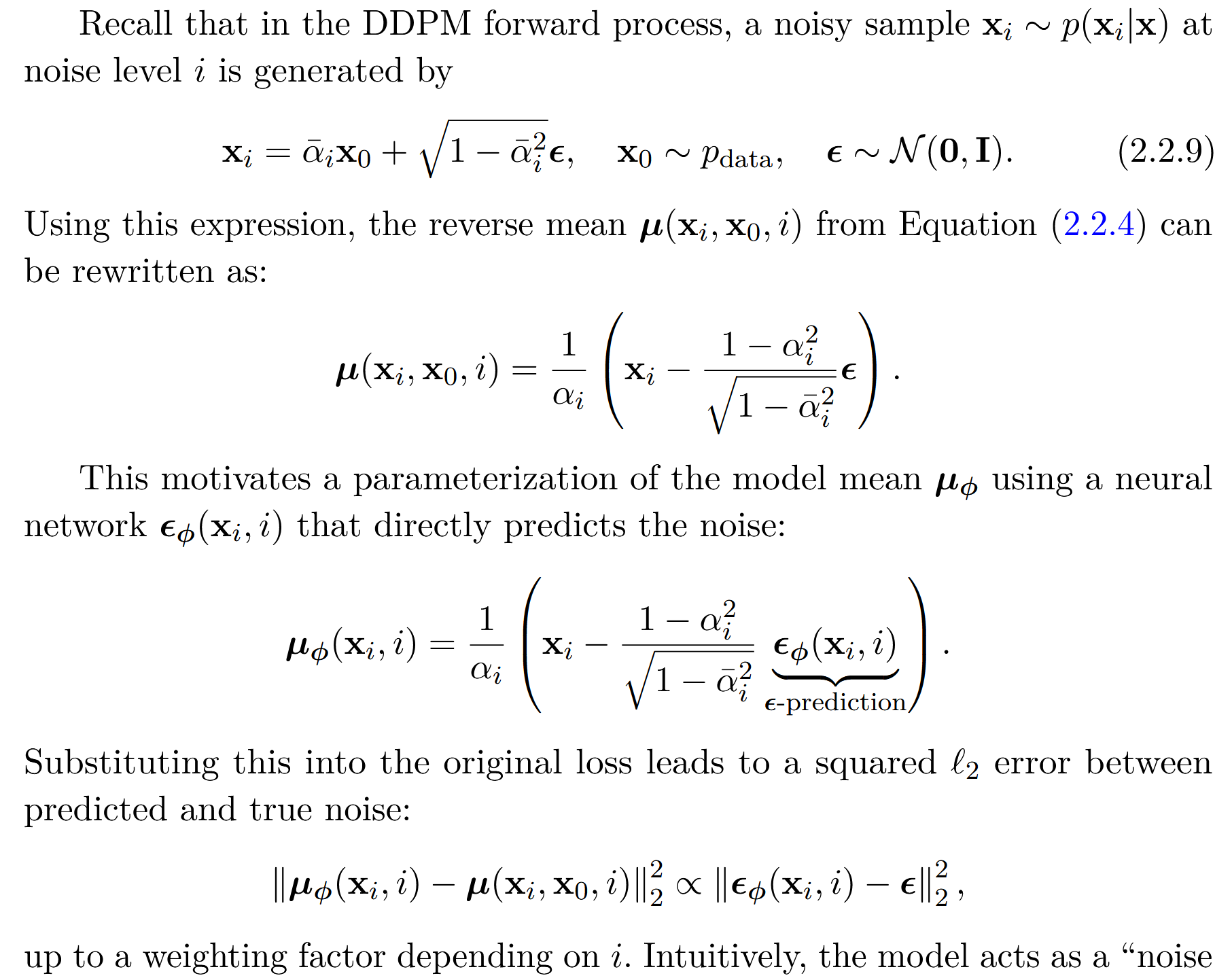

Derivation of the Loss

• Prop.)
  • \(\mathcal{L}_{\text{DDPM}}\) and \(\mathcal{L}_{\text{simple}}\) share the same optimal solution of
    • \(\epsilon^*(\mathbf{x}_i, i) = \mathbb{E}[\epsilon\mid\mathbf{x}_i]\) for \(\mathbf{x}_i\sim p_i\)
      • i.e.) Noise estimated by the ε-prediction coincides with the conditional expectation of the true noise, even though $\mathbf{x}_i$ does not uniquely determine the original clean sample.

Tech.) x-prediction

• Goal)
  • Train a neural network to estimate the clean image from a given noisy input \(\mathbf{x}_i\sim p_i(\mathbf{x}_i)\).
• Def.)
  • \(\mathcal{L}_{\text{x-pred}}(\phi) := \mathbb{E}_{i}\mathbb{E}_{\mathbf{x}_0 \sim p_{\text{data}}}\mathbb{E}_{\epsilon\sim\mathcal{N}(\mathbf{0,I})} \left[ \omega_i \Vert \mathbf{x}_\phi(\mathbf{x}_i, i) - \mathbf{x}_0 \Vert_2^2 \right]\).
    • where
      • \(\mathbf{x}_0\sim p_{\text{data}}\).
      • \(\omega_i\) : some weighting function

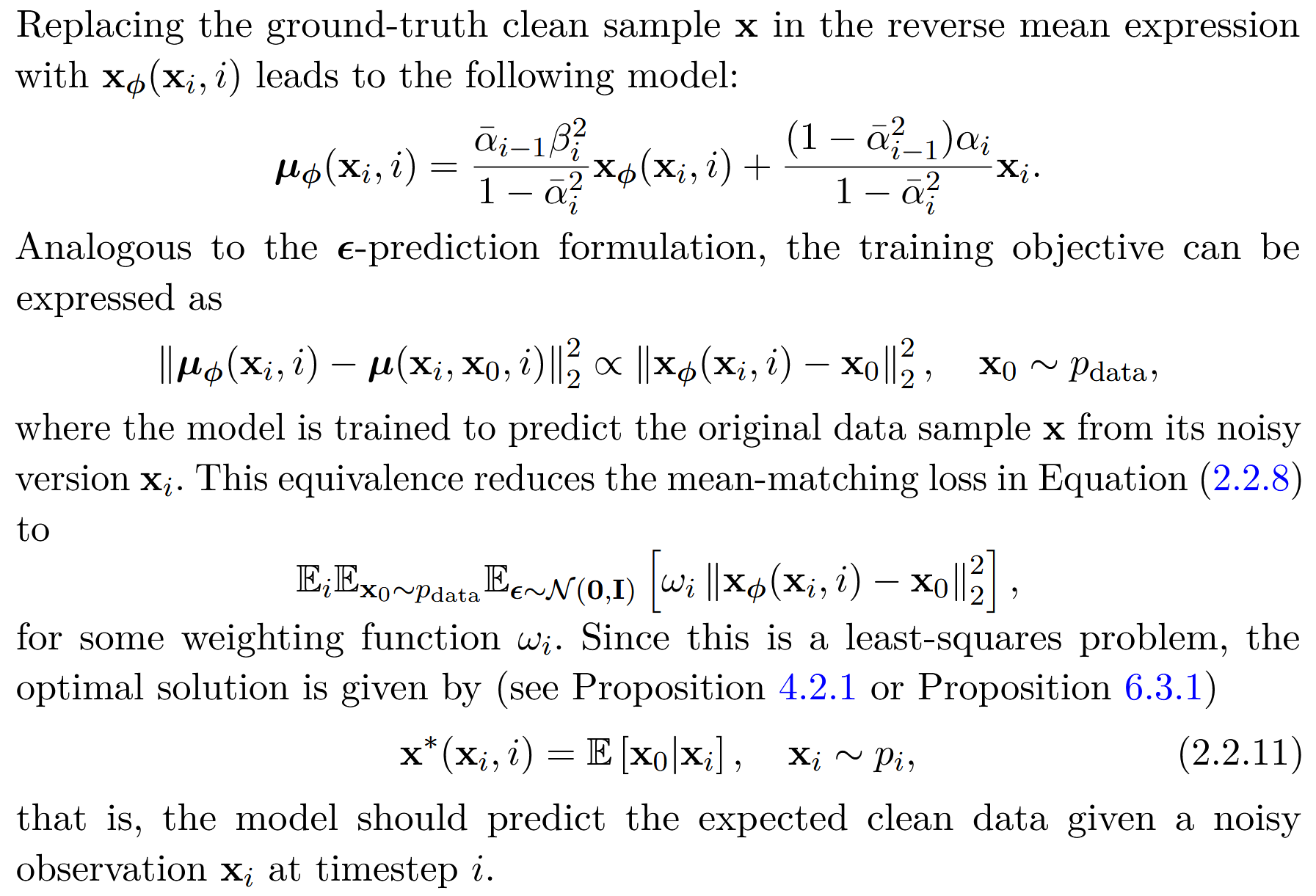

Derivation of the Loss

Tech.) DDPM’s Sampling

• Settings)
  • \(\epsilon_{\phi^\times}(\mathbf{x}_i, i)\) : a trained (frozen) noise
    • assuming the $\epsilon$-prediction
• Procedure)
  • For $i=L,\ldots,1$,
    • \(\mathbf{x}_{i-1} \leftarrow \displaystyle \underbrace{\frac{1}{\alpha_i} \left(\mathbf{x}_{i} - \frac{1-\alpha_i^2}{\sqrt{1-\bar{\alpha}_i^2}}\epsilon_{\phi^\times}(\mathbf{x}_{i}, i)\right)}_{\mu_{\phi^\times}(\mathbf{x}_{i}, i)} + \sigma(i)\epsilon_i\quad\) for \(\epsilon_i\sim\mathcal{N}(\mathbf{0,I})\)
  • cf.) Equivalent to sampling \(\mathbf{x}_{i}\sim p_{\phi^\times}(\mathbf{x}_i\mid\mathbf{x_i})\).

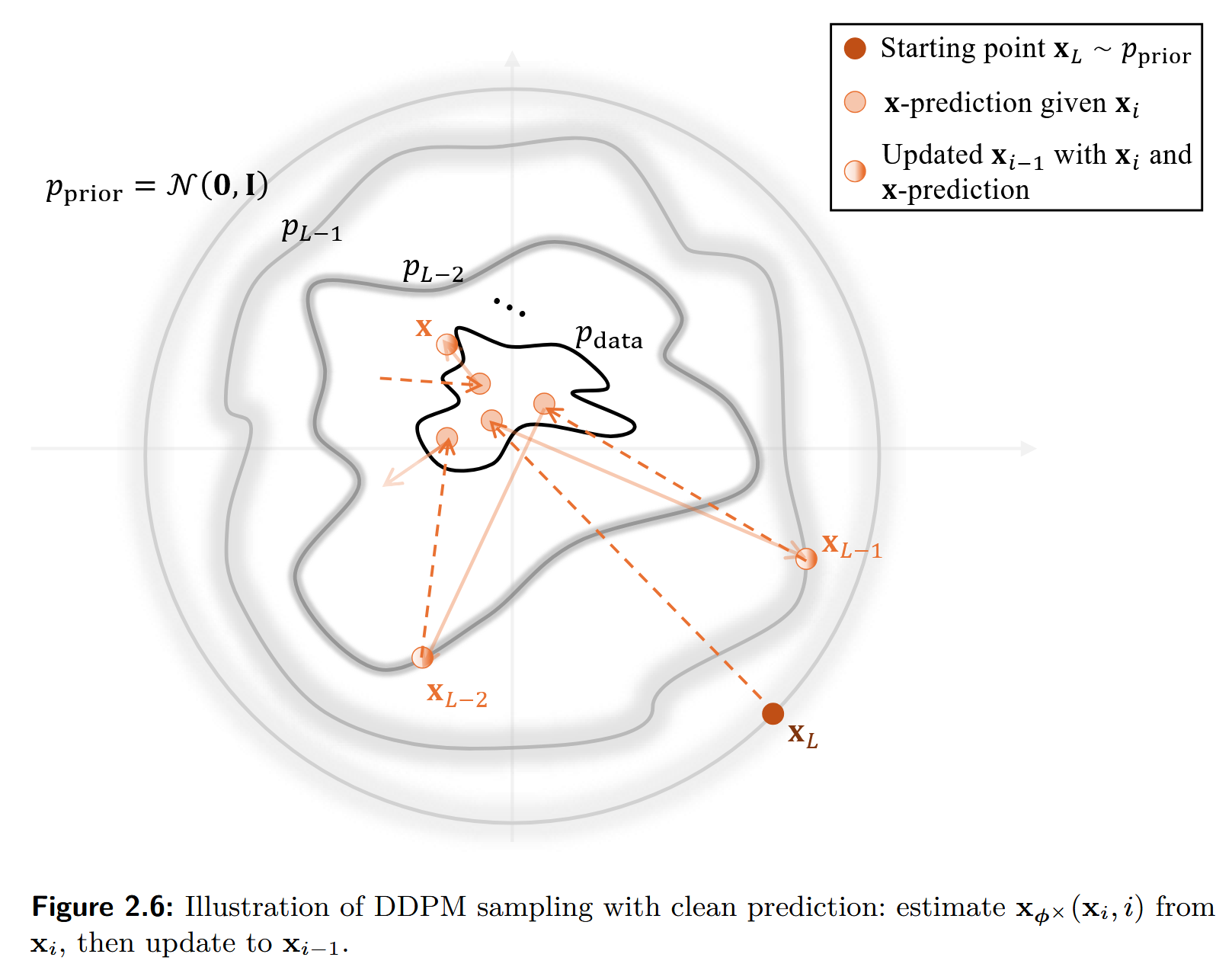

• Interpretation)
  • Plugging in the paramterziation identity \(\epsilon_{\phi^\times}(\mathbf{x}_i, i) = \displaystyle\frac{\mathbf{x}_i - \bar{\alpha}_i\mathbf{x}_{\phi^\times}(\mathbf{x}_i, i)}{\sqrt{1-\bar{\alpha}_i^2}}\), the sampling at step $i$ can be rewritten as
    • \(\mathbf{x}_{i-1} \leftarrow \displaystyle \underbrace{c_1\mathbf{x}_{i} +c_2 \mathbf{x}_{\phi^\times}(\mathbf{x}_i, i)}_{\text{interpolation}} + \sigma(i)\epsilon_i\quad\).
      • i.e.) Each step (\(\mathbf{x}_{i-1}\)) is centered around the predicted clean sample (\(\mathbf{x}_{\phi^\times}(\mathbf{x}_i, i)\)), with added Gaussian noise scaled by \(\sigma(i)\).
      • Decomposed into two steps.
        1. Estimate the clean data \(\mathbf{x}_{\phi^\times}(\mathbf{x}_i, i)\) from the noisy input from the previous step \(\mathbf{x}_i\).
        2. Sample a less noisy latent \(\mathbf{x}_{i-1}\) using \(\mathbf{x}_{\phi^\times}(\mathbf{x}_i, i)\).
• Props.)
  • Early sample stpes set the global structure, and later steps add fine detail.
    • Even if \(\mathbf{x}_{\phi^\times}(\mathbf{x}_i, i)\) is trained as the optimal denoiser, it can only predict the average clean samplle given \(\mathbf{x}_i\).
      • Thus, this leads to the blurry samples particularily at high noise level (\(i\approx L\gg1\))
        • cf.) Gaussian VAE
    • However, as the sampling proceeds to the low noise level (\(i\rightarrow1\)), it pregressively refines an estimate of the clean signal.
  • Slow Sampling
    • Why?)
      • \(p_{\phi}(\mathbf{x}_{i−1}\mid\mathbf{x}_{i})\) is typically modeled as a Gaussian to approximate \(p(\mathbf{x}_{i−1}\mid\mathbf{x}_{i})\), limiting its expressiveness.
      • For small forward noise scales $\beta_i$, the true reverse distribution is approximately Gaussian, enabling accurate approximation.
      • Conversely, large $\beta_i$ induce multimodality or strong non-Gaussianity that a single Gaussian cannot capture.
      • Thus, to maintain the accuracy, DDPM employs many small $\beta_i$ steps.
