Flow Straight and Fast - Learning to Generate and Transfer Data with Rectified Flow (Rectified Flow)

Introduction

Concept) Representation Learning

• Goal)
  • Automatically learn a meaningful low-dimensional representation
• Process)
  • Map high-dimensional data \(X\). to low-dimensional latent space \(A\).
• e.g.)
  • VAE, GAN, NF

Concept) Domain Transfer

• Goal)
  • Translate data from a source domain to a target domain while preserving the core content
• Process)
  • Learn a transport map \(T\). from one distribution to another.

Concept) Transport Map

• Def.)
  • Given empirical observations of two distributions on \(\mathbb{R}^d\).,
    • \(X_0\sim \pi_0\).
    • \(X_1\sim \pi_1\).
  • a transport map \(T:\mathbb{R}^d\rightarrow\mathbb{R}^d\). can be defined as
    • \(Z_1 := T(Z_0)\sim \pi_1\). for \(Z_0\sim\pi_0\).
  • The pair \((Z_0, Z_1)\). is a coupling (transport plan) or \(\pi_0\). and \(\pi_1\)..
• Representations)
  • GAN-Type Minimax Algorithm
    • Drawbacks)
      • Numerical instability, mode collapse issues, and the need for hume fine tuning
    • e.g.) Cycle GAN
  • MLE
    • Drawbacks)
      • Intractability of the objective
        • Thus, approximation methods such as variational or Monte Carlo inference techniques are used.
      • Implementations such as VAE and NF have trade off between expressive poser and computational cost
  • Implicit Continuous Time Process
    • e.g.)
      • Ordinary Differential Equations (ODE)
        • Flow Models
      • Stochastic Differential Equations (SDE)
        • Diffusion Models
    • Advantage)
      • Superb image quality and diversity without instability and mode collapse issues
    • Drawback)
      • High computational cost in inference time
  • Optimal Transport (OT)
    • Desc.)
      • Unifies both generative learning techniques and the domain transfer problem.
        • cf.) Other models treated them separately.
      • Utilizes the cost function \(c:\mathbb{R}^d\rightarrow\mathbb{R}\). and train to minimize the score \(\mathbb{E}[c(Z_1-Z_0)]\)..
    • Drawback)
      • Slow for high dimensional and large volumes of data
      • The cost metric is not perfectly aligned with the actual learning performance.

Concept) Transport Cost

• Def.)
  • The total effort to transform one probability distribution into another according to a specific transport plan or coupling

2. Method (Rectified Flow)

2.1 Overview

Concept) Rectified Flow

• Goal)
  • Provide simple approach to the transport mapping problem
  • Unifiedly solve both generative modeling and domain transfer
• Desc.)
  • An ODE model that transport between \(\pi_0\). and \(\pi_1\). by following straight line path as much as possible
• Methods
  • Settings)
    • Let
      • \(X_0\sim\pi_0\). : empirical observation 1
      • \(X_1\sim\pi_1\). : empirical observation 2
      • \((X_0, X_1)\). : the data pair
        • Arbitrary!
    • The rectified flow induced from the data pair \((X_0,X_1)\). is an ordinary differentiable model (ODE) on time \(t\in[0,1]\).
      • \(\text{d} Z_t = v_\theta(Z_t, t) \text{d}t\).
        • where
          • \(Z_0\sim\pi_0\).
          • \(Z_1\sim\pi_1\).
          • \(\mathbf{Z} = (Z_0, Z_1)\). : the rectified coupling
            • Deterministic!
          • \(v_\theta:\mathbb{R}^d \times \underbrace{[0,1]}_{\text{the time }t}\rightarrow\mathbb{R}^d\). : the drift force that drive the flow to follow the direction to the linear path \(X_1-X_0\).
            • Parameterized as a neural network
      • \((Z_0, Z_1) = \text{Rectify}\big((X_0, X_1)\big)\). : the mapping from the data pair \((X_0, X_1)\). to the rectified coupling \((Z_0, Z_1)\).
      • \(\mathbf{Z} = \text{RectFlow}\big((X_0, X_1)\big)\). : the rectified flow induced from \((X_0, X_1)\)..
  • Training)
    • Model)
      • \(\hat{\theta} = \displaystyle\arg\min_\theta \int_0^1 \mathbb{E}\Big[ \big\Vert \underbrace{(X_1-X_0)}_{\text{Dynamic Instruction!}} - v_{\theta}(X_t, t) \big\Vert^2 \Big]\text{d}t\).
        • where
          • \(X_1 - X_0\). : the dynamic instruction between \(X_0\). and \(X_1\).
            • Desc.)
              • Assume that the datapoints \(X_0\). and \(X_1\). are the vectors.
              • Then, the vector \(X_1 - X_0\). contains the direction and the magnitude between them.
              • We want our velocity model to approximate it.
          • \(v_{\theta}(X_t, t)\). : our velocity model
            • Why velocity?)
              • Velocity is composed of the direction and the magnitude.
              • We want our model to approximate those properties as time \(t\). continues.
          • \(X_t = tX_1 + (1-t)X_0\).
    • Desc.)
      • Sample an arbitrary data pair \((X_0, X_1)\). from distributions \(\pi_0\). and \(\pi_1\)..
      • Following the straight path between \(X_0\). and \(X_1\)., we train the ODE model of \(v_\theta\).
        • Goal)
          • \(v_\theta(X_t, t)\approx X_1-X_0\).
  • Inference / Sampling)
    • Model)
      • Solve \(\text{d}\tilde{X}_t = -v(\tilde{X}_t, t)\text{d}t\).
    • Desc.)
      • Two directional
        • Sample \(Z_0\sim\pi_0\). (\(Z_1\sim\pi_1\).)
        • Use the trained dynamics to find the rectified pair \(Z_1\sim\pi_1\). (\(Z_0\sim\pi_0\).)

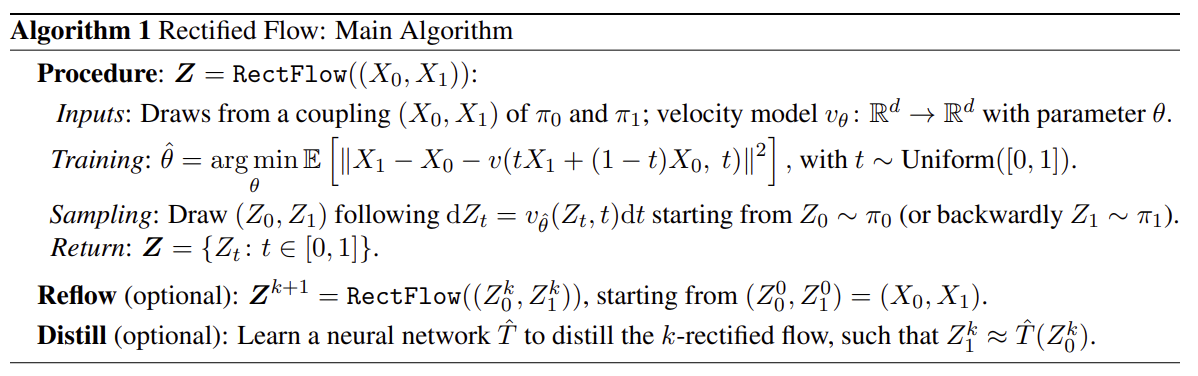

• Algorithm)

• Props.)
  • Flows avoid crossing
  • Rectified flow reduce transport costs

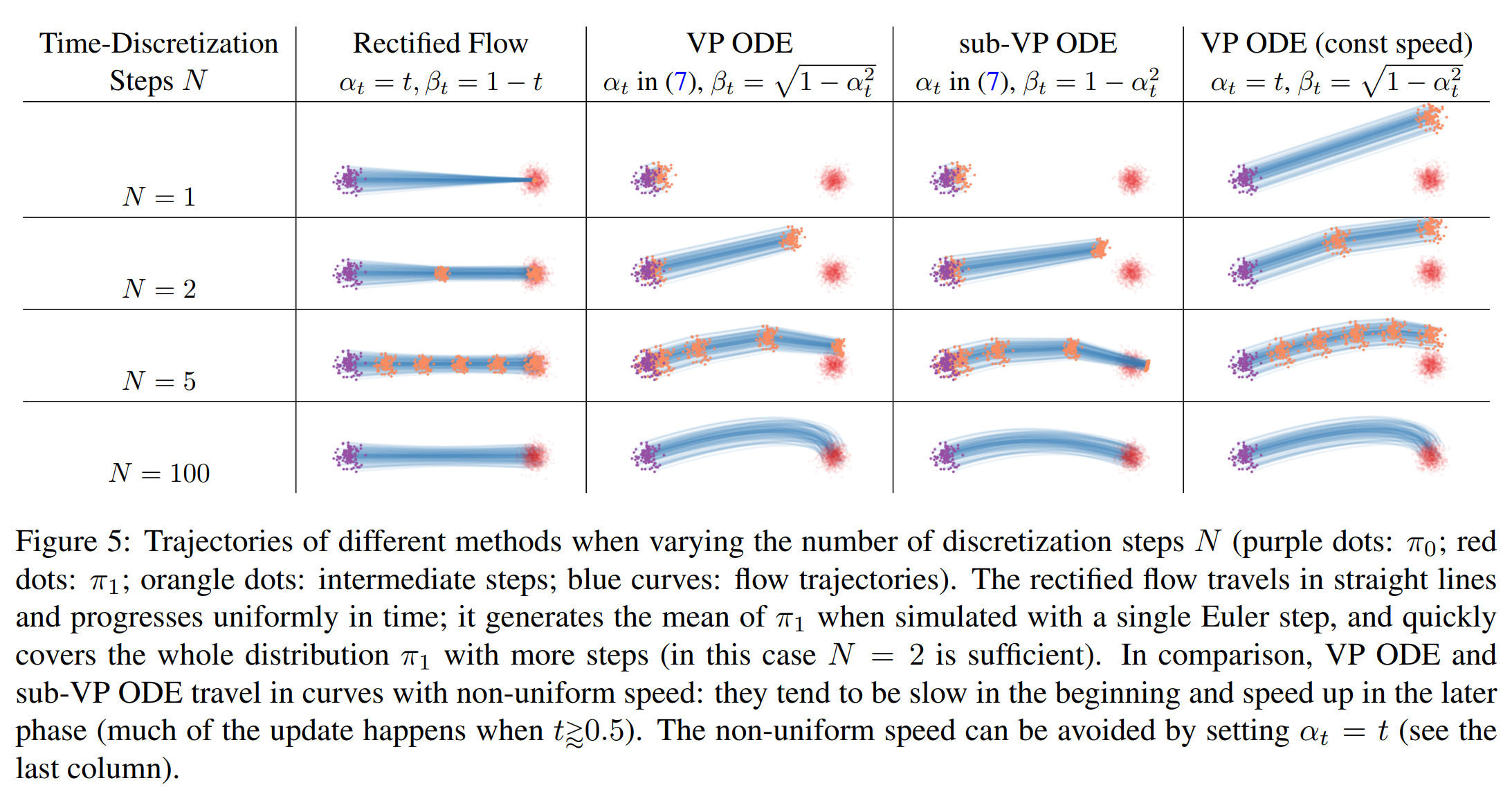

  • Straight line flows yield fast simulation

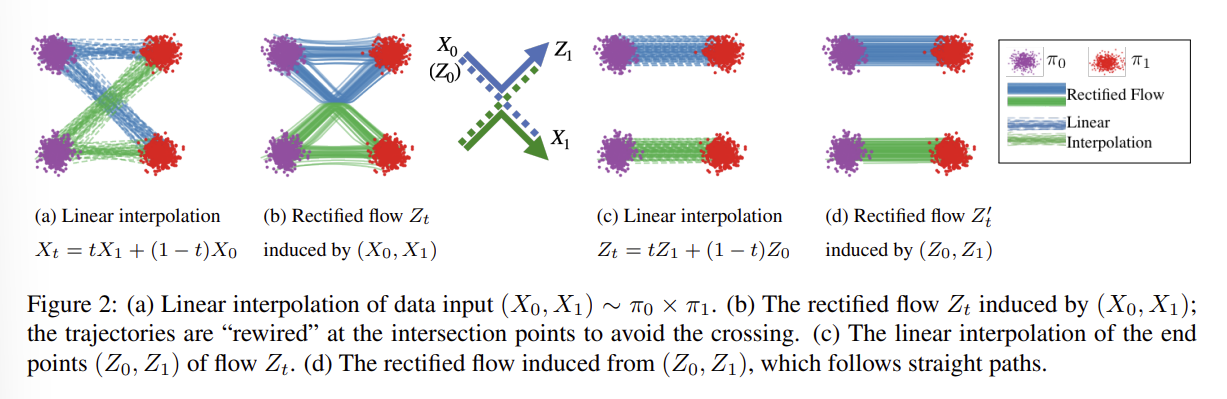

Prop 2.1.1) Flows avoid crossing

• Fundamental Mathematical Requirement
  • ODE must have unique solution for any given starting point
• The Problem with Naive Interpolation
  • When dealing with multi-modal distributions, paths created by simple linear interpolation can intersect.
    • e.g.)
      • Suppose \(\pi_0\). and \(\pi_1\). are multi-modal.
      • We define a linear interpolation \(X_t\)..
        • where the flow is defined by the velocity field \(v(Z_t, t)\).
      • Suppose two paths cross at a point \((Z_\tau, \tau)\)..
      • Then the function \(v\). should output two different velocities for the same input \((Z_\tau, \tau)\)..
      • This is the contradiction.
• The Rectified Flow solution
  • By optimizing a loss that forces the learned velocity field \(v_\theta\). to match the velocity of a straight line \((X_1-X_0)\)., the model learns a globally simple and consistent flow.
  • This optimization implicitly rewires the initial random pairings to find a non-crossing transport plan.
  • This guarantees the unique solution of the ODE.

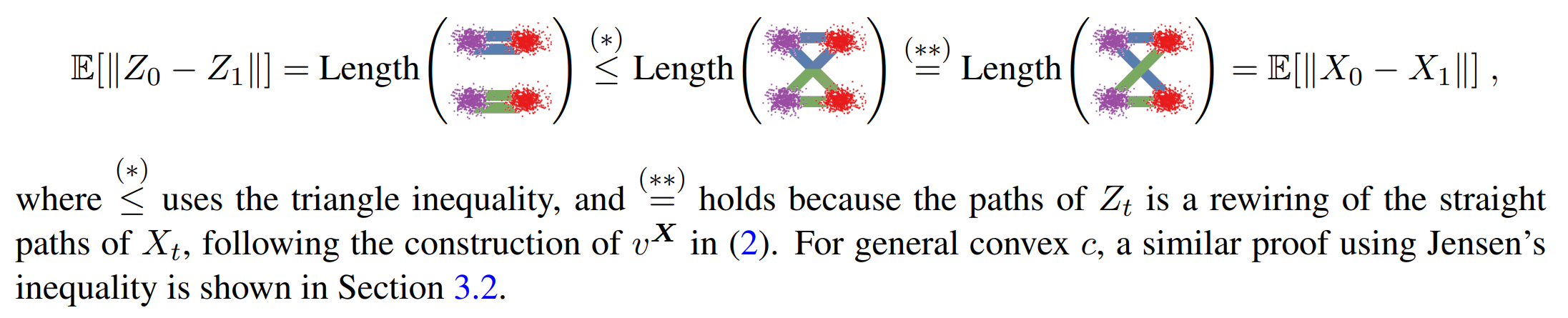

Prop 2.1.2) Rectified flow reduce transport costs

• Key Idea)
  • If \(\displaystyle\min_{v} \int_0^1 \mathbb{E}\Big[ \big\Vert (X_1-X_0) - v(X_t, t) \big\Vert^2 \Big]\text{d}t\). is solved exactly,
    • \((Z_0, Z_1)\). of the rectified flow is guaranteed to be a valid coupling of \(\pi_0, \pi_1\).
      • i.e.) \(Z_1 \sim \pi_1\). if \(Z_0\sim\pi_0\).
      • cf.) Refer to Thm. 3.3
  • The rectified coupling \((Z_0,Z_1)\). guarantees to yield no larger transport cost than the data pair \((X_0,X_1)\). simultaneously for all convex cost functions \(c\)..
    • Here, the convex cost function come from the OT model.
    • cf.) Refer to Thm. 3.5
  • The rectified coupling \((Z_0,Z_1)\). has deterministic dependency as it is constructed from an ODE model.
    • cf.) Whereas the data pair \((X_0,X_1)\). may be an arbitrary coupling of \(\pi_0,\pi_1\).
      • i.e.) Less meaning fully paired observations in practical problems.

Prop 2.1.3) Reflow (Rectification)

• Def.)
  • Suppose we recursively apply rectified flow as
    \(\begin{aligned} (Z_0^0, Z_1^0) &= \text{RectFlow}\big((X_0,X_1)\big) \\ (Z_0^1, Z_1^1) &= \text{RectFlow}\big((Z_0^0, Z_1^0)\big) \\ &\vdots \\ (Z_0^k, Z_1^k) &= \text{RectFlow}\big((Z_0^{k-1}, Z_1^{k-1})\big) \\ \end{aligned}\).
  • We may denote
    • \(\mathbf{Z}^0\). : a rectified flow
    • \(\mathbf{Z}^k\). : a \(k\).-rectified flow
• Desc.)
  • Recursively apply the rectified flow.
  • Maintain the model \(v_\theta\). that we trained in the previous rectification stage.
  • Input
    • \((Z_0^{k-1},Z_1^{k-1})\). : the \((k-1)\).-rectified coupling
      • How to get)
        • Draw \(Z_0^{k-1}\sim\pi_0\quad \big(Z_1^{k-1}\sim\pi_1\big)\).
        • Using \(v_\theta\)., infer \(Z_1^{k-1}\quad \big(Z_0^{k-1}\big)\).
  • Output
    • \((Z_0^{k},Z_1^{k})\).
• Prop.)
  • Reflow procedure…
    • decreases transport cost
    • straighten paths of rectified flows
  • Perfectly straight paths can be simulated exactly with a single Euler step.
    • i.e.) one-step model
  • Different from the distillation process that attempts the one-shot inference.

2.2 Main Results and Properties

Def.) Optimal Model

• For a given coupling \((X_0,X_1)\)., the exact minium of the objective can be achieved if
  • \(v^X(x,t) = \mathbb{E}[X_1-X_0\mid X_t = x]\).
    • i.e) Optimal Velocity Field
• Optimal rectified flow
  • \(\text{d}Z_t = v^X(Z_t, t)\text{d}t\). with \(Z_0\sim\pi_0\).

2.2.1 Marginal Preserving Property

• Prop.)
  • \(\text{Law}(Z_t) = \text{Law}(X_t),\quad \forall t\in[0,1]\).
    • i.e.) The marginal law of \(Z_t\). equals that of \(X_t\). at every time \(t\).
    • where \(\text{Law}\). denotes the marginal probability
• Desc.)
  • The joint distribution of \(X_t\). is in general non-causal, non-Markov.
    • Why?)
      • \((X_0,X_1)\). is just an arbitrary pairing.
      • There can be multiple cross points among different \(X_t\).s.
  • However, if you take the expectation of them, a nice shaped transportation that causalizes, Markovianizes, and derandomizes the \(X_t\)..
  • The optimal model, \(v^X\). approximates such paths.
  • And additionally, if we marginalize out with \(t\)., the distributions of \(X_t\). and \(Z_t\). may be identical.
    • e.g.) Flow case
      • Assume that \(Z_t\). is the laminar flow and \(X_t\). is the turbulent flow.
      • Although \(X_t\). seems random and chaotic, there is a trend in general of flowing rightward.
      • \(Z_t\). can be a structured flow that learned the simplified version of this trend.

2.2.2 Reducing Transport Costs

• Prop.)
  • The rectified coupling \((Z_0, Z_1)\). yields lower or equal convex transport costs than input \((X_0, X_1)\). in that \(\mathbb{E}\big[ c(Z_1-Z_0) \big] \le \mathbb{E}\big[ c(X_1-X_0) \big]\). for any convect cost \(c:\mathbb{R}^d\rightarrow\mathbb{R}\).
• Convex Cost Function
  • e.g.)
    • \(c(\cdot) = \Vert\cdot\Vert^\alpha,\quad \alpha\ge 1\).
    • \(c(\cdot) = \Vert\cdot\Vert\).

2.2.4 Distillation

• Goal)
  • We want to perform a one-shot inference model that approximates the final stage \(k\).-rectified model.
  • We may fine tune the existing \(k\).-rectified flow model \(v_{\hat{\theta}}^k\). to do that task.
• Model)
  • \(\hat{T}\). : a neural network s.t.
    • \(\hat{T}(z_0) = z_0 + v_{\hat{\theta}}^k(z_0, 0)\). : the one-shot inference of \(z_1\). given \(z_0\).
• Training)
  • \(\displaystyle\min_{\hat{\theta}} \mathbb{E}\Big[\big\Vert(Z_1^k-Z_0^k) - v_{\hat{\theta}}^k(Z_0^k, 0)\big\Vert^2\Big]\).
    • where \((Z_0^k, Z_1^k)\). is the k-rectified coupling
• Prop.)
  • Reflow (Rectification) vs Distillation
    • Distillation attempts to faithfully approximate the coupling \((Z_0^k, Z_1^k)\)..
      • Thus, the input and the output are all \((Z_0^k, Z_1^k)\)..
    • Reflow (Rectification) yields different coupling with lower transport cost and more straight flow.
      • Input : \((Z_0^k, Z_1^k)\).
      • Output : \((Z_0^{k+1}, Z_1^{k+1})\).

2.2.5 Exact Calculation on the Velocity Field

• Model)
  • Let \(\rho(x_0\mid x_1)\). be a conditional density function of \(X_0\). given \(X_1=x_1\)..
  • If such \(\rho\). exists, we may denote the optimal velocity field \(v^X\). as
    • \(v^X(z,t) = \displaystyle\mathbb{E}\left[ \frac{X_1 - z}{1-t} \eta_t(X_1, z) \right]\).
      • where
        • \(\eta_t(X_1, z) = \displaystyle\frac{\rho\left(\frac{z-tX_1}{1-t}\mid X_1\right)}{\mathbb{E}\left[ \rho\left( \frac{z-tX_1}{1-t} \mid X_1 \right) \right]}\).
• Derivation)
  • Put \(z = tX_1 + (1-t)X_0 = X_t\)..
  • Thus, we may rewrite as
    • \(X_0 = \displaystyle\frac{z-tX_1}{1-t},\quad X_1-X_0 = \displaystyle\frac{X_1-z}{1-t}\).
  • From the optimal velocity field, we may get
    \(\begin{aligned} v^X(x,t) &= \mathbb{E}[X_1-X_0\mid X_t = z] \\ &= \mathbb{E}\left[\frac{X_1-z}{1-t} \Big\vert X_t = z \right] \\ &= \int \frac{x_1-z}{1-t} \cdot p(x_1\mid z) \text{d} x_1 \\ &= \int \frac{x_1-z}{1-t} \cdot \frac{p(z\mid x_1) \; p(x_1)}{p(z)} \text{d} x_1 & (\because\text{Bayes Rule}) \\ \end{aligned}\).
  • We may rewrite \(p(z\mid x_1)\). as
    \(\begin{array}{lll} p(z\mid x_1) &= \rho\left( X_0\mid X_1=x_1 \right) \cdot \left\vert\frac{\text{d} X_0}{\text{d} z}\right\vert & (\because X_0\text{ is the only randomness in } z) \\ &= \rho\left( \frac{z-tX_1}{1-t} \Big\vert x_1 \right) \cdot \frac{1}{1-t} & \cdots (A) \end{array}\).
  • Also, we may rewrite \(p(z)\). as
    \(\begin{array}{lll} p(z) &= \int p(z\mid x_1) \cdot p(x_1) \; \text{d} x_1 \\ &= \mathbb{E}_{X_1} \left[ p(z\mid x_1) \right] \\ &= \mathbb{E}_{X_1} \left[ \rho\left( \frac{z-tX_1}{1-t} \Big\vert x_1 \right) \cdot \frac{1}{1-t} \right] & \cdots (B) \\ \end{array}\).
  • Plugging (A) and (B), we may get
    \(\begin{aligned} v^X(x,t) &= \int \frac{x_1-z}{1-t} \cdot \frac{p(z\mid x_1) p(x_1)}{p(z)} \text{d} x_1 \\ &= \int \frac{x_1-z}{1-t} \cdot \frac{\rho\left( \frac{z-tX_1}{1-t} \Big\vert x_1 \right) \cdot \frac{1}{1-t}}{\mathbb{E}_{X_1} \left[ \rho\left( \frac{z-tX_1}{1-t} \Big\vert x_1 \right) \cdot \frac{1}{1-t} \right]} p(x_1) \text{d} x_1 \\ &= \mathbb{E}\left[ \frac{X_1 - z}{1-t} \eta_t(X_1, z) \right] & \left(\text{Put }\eta_t(X_1,z) = \frac{\rho\left(\frac{z-tX_1}{1-t}\mid X_1\right)}{\mathbb{E}\left[ \rho\left( \frac{z-tX_1}{1-t} \mid X_1 \right) \right]}\right) \\ \end{aligned}\).
• Prop.)
  • If \(\rho(x_0\mid x_1)\). is positive and continuous \(\forall (X_0\mid X_1)\).
    • then \(v^X\). is well defined and continuous on \(\mathbb{R}^d\times[0,1)\).
  • Further if \(\log\eta_t\). is continuously differentiable w.r.t. \(z\).
    • \(\nabla_z v^X(z,t) = \displaystyle\frac{1}{1-t} \mathbb{E}\Big[ ((X_1-z)\nabla_z\log\eta_t(X_1,z) - 1)\;\eta_t(X_1,z) \Big]\).
  • If \(v^X\). is uniformly Lipschitz continuous on \([0,a],\;\forall a\lt1\).
    • \(\text{d} Z_t = v^X(Z_t, t)\text{d}t\). is guaranteed to have a unique solution
  • Consider the case that \(\pi_0\). is discrete where \(X_0\sim\pi_0\).
    • Then \(X_0\mid X_1=x_1\). does not yield any conditional density function
    • As a result, \(v^X(z,t)\). may be undefined or discontinuous.
    • Consequently, the ODE \(\text{d} Z_t = v^X(Z_t, t)\text{d}t\). will ill-behave.
      • Sol.) Add \(X_0\). with a Gaussian noise \(\xi\sim\mathcal{N}(0,\sigma^2I)\)..
        • Then \(\tilde{X}_0 = X_0 + \xi\).

2.2.6 Smooth Function Approximation

• Key Idea)
  • We saw that we can get the closed form solution of \(v^X\)..
  • However, this may cause overfit to the data \(X\)..
  • Thus, it is important to take smooth function approximation, instead of directly using \(v^X\)..
  • In case of high-dimensional and large scale problem, the deep neural network perfectly serves as a smooth approximation of \(v^X\)..
  • However, if the problem setting is low-dimensional, neural network may not be efficient, considering its training cost, or may cause overfit to the data.
  • Instead, we may use alternative simpler models.
• Alternative for Low-Dimensional Problem
  • Nadaraya-Watson style Non-Parametric Estimator of \(v^X\).
    • \(v^{X,h}(z,t) = \displaystyle\mathbb{E}\left[ \frac{X_1-z}{1-t}\omega_h(X_t, z) \right]\).
      • where
        • \(\omega_h(X_t, z) = \displaystyle\frac{\kappa_h(X_t,z)}{\mathbb{E}[\kappa_h(X_t,z)]}\).
        • \(\kappa_h(x,z)\). is a smoothing kernel with a bandwidth parameter \(h\gt0\). that measures the similarity between \(x\). and \(z\)..
          • e.g.) RBF Kernel \(\kappa_h(x,z) = \exp(-\Vert x-z\Vert^2/2h^2)\).

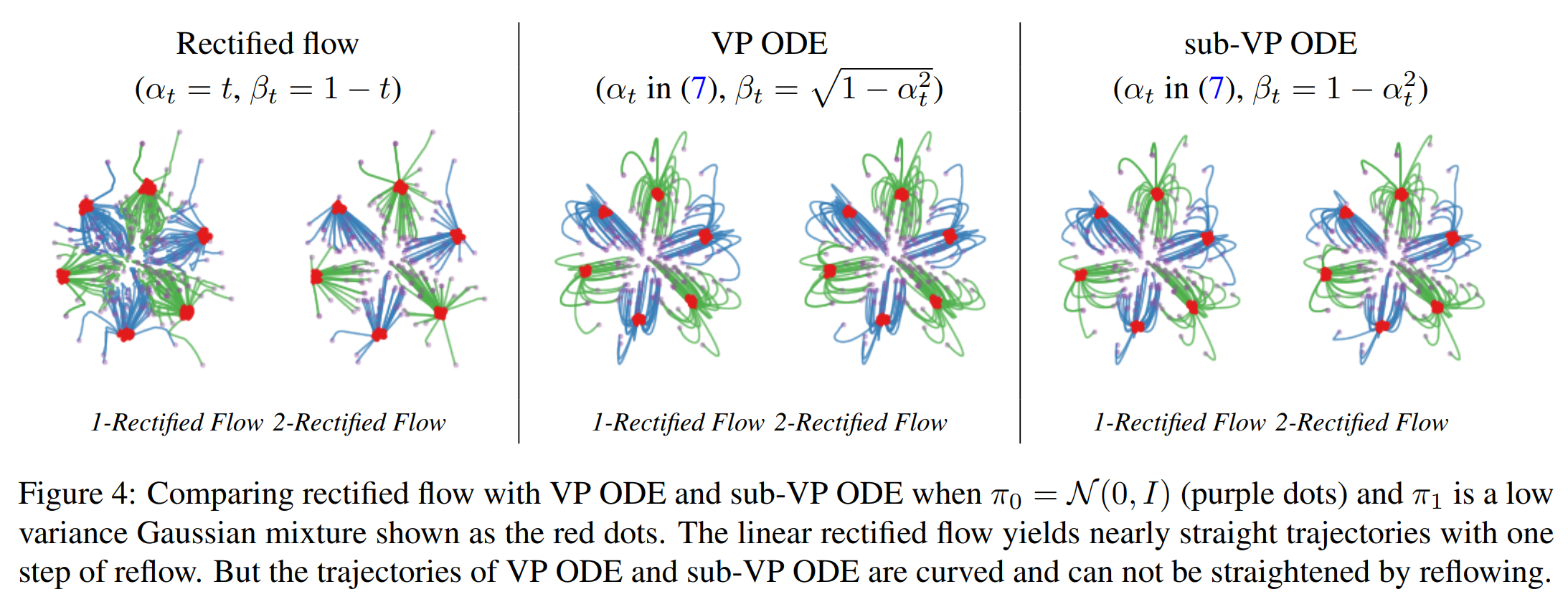

2.3 A Nonlinear Extension

• Key Idea)
  • Previous rectification used the linear interpolation \(X_t\).
    • i.e.) \(X_t = tX_1 + (1-t)X_0\).
  • What if we try non-linear curves connecting \(X_0\). and \(X_1\).?
    • Thm 3.3 shows that they can still transport \(\pi_0\). to \(\pi_1\).
    • However, they do not guarantee the decrease in convex transport costs or straightening effects.
    • Probability Flow and DDIM can be viewed as ones that used this approach.
• Model)
  • Let
    • \(\mathbf{X} = \{X_t:t\in[0,1]\}\). : any time-differentiable random process that connects \(X_0\). and \(X_1\).
    • \(\dot{X_t}\). : the time derivative of \(X_t\).
  • The non-linear rectified flow induced from \(\mathbf{X}\). is defined as
    • \(\text{d}Z_t = v^X(Z_t,t)\text{d}t\).
      • where
        • \(Z_0 = X_0\).
        • \(v^X(z,t) = \mathbb{E}\left[ \dot{X_t} \mid X_t = t \right]\).
  • Optimization)
    • \(\displaystyle\min_v \int_0^1 \mathbb{E}\left[ w_t \Big\Vert v(X_t, t) - \dot{X_t} \Big\Vert^2 \right]\text{d}t\).
      • where
        • \(w_t:(0,1)\rightarrow(0,+\infty)\). : a positive weighting sequence
          • cf.) \(w_t = 1\). by default.
• Prop.)
  • \(\text{Law}(Z_t) = \text{Law}(X_t),\quad\forall t\in[0,1]\).
    • Thus, \((Z_0,Z_1)\). remains to be a coupling of \(\pi_0,\pi_1\).
  • If \(\mathbf{X}\). is not straight, \((Z_0,Z_1)\). no longer guarantees to decrease the convex transport cost over \((X_0, X_1)\).
• e.g.)
  • Linear Interpolation)
    • If \(\dot{X_t} = X_1-X_0\). and \(w_t=1\).
      • the model is the linear interpolation \(X_t = tX_1 + (1-t)X_0\).
  • Probability Flow ODE (PF-ODE)
    • Desc.)
      • All variants of PF-ODEs can be viewed as instances of the non-linear rectified flow
        • when using
          • \(X_t = \alpha_t X_1 + \beta_t\xi\).
          • \(\exists \alpha_t, \beta_t\).
          • \(\alpha_1=1,\beta_1 = 0\).
          • \(\xi\sim\mathcal{N}(0,I)\).
    • Types)
      • VE ODE
      • VP ODE
      • sub-VP ODE
    • Props.)
      • Non-straight paths
      • Non-uniform speed

3. Theoretical Analysis

3.1 The Marginal Preserving Property

Def. 3.1)

Def. 3.2)

Thm. 3.3)

3.2 Reducing Convex Transport Costs

Def. 3.4)

Thm. 3.5)

3.3 The Straightening Effect

Thm. 3.6)

Thm. 3.7)

3.4 Straight vs. Optimal Couplings

Thm. 3.8)

Lemma 3.9)

Thm. 3.10)

3.5 Denoising Diffusion Models and Probability Flow ODEs

Prop. 3.11)

Back to Main
