Flow Matching for Generative Modeling (CFM)

Created on September 23, 2025

2025   ·   flow_matching   continuous_normalizing_flow   CNF   ·   diffusion_model

2. Preliminaries: Continuous Normalizing Flows

Concept) Continuous Normalizing Flows (CNF)

Chen et al. 2018

  • Model)
    • Let
      • \(\mathbb{R}^d\). : the data space
        • with datapoints \(x = (x^1,\cdots,x^d)\in\mathbb{R}^d\).
      • \(t\in[0,1]\). : time
      • \(p:[0,1]\times\mathbb{R}^d\rightarrow\mathbb{R}_{\gt 0}\). : the probability density path
        • where
          • \(\displaystyle\int p_t(x)\text{d}x = 1\).
            • i.e.) the time dependent probability density function
          • \(p_0\). is a prior
            • cf.) We may assume it to be the pure noise.
      • \(v:[0,1]\times\mathbb{R}^d\rightarrow\mathbb{R}^d\). : the time dependent vector field
        • where \(v_t\). can be used to construct a flow (time-dependent diffeomorphic map)
      • \(\phi:[0,1]\times\mathbb{R}^d\rightarrow\mathbb{R}^d\). : the flow which is defined by ODE as
        • \(\displaystyle\frac{\text{d}}{\text{d}t}\phi_t(x) = v_t(\phi_t(x))\).
        • \(\phi_0(x) = x\).
    • Then, we may model the vector field \(v_t\). with a neural network \(v_t(x;\theta)\).
      • where \(\theta\in\mathbb{R}^p\). are its learnable parameters
    • The deep parametric model of the flow \(\phi_t\). is called a Continuous Normalizing Flow (CNF)
    • The vector field \(v_t\). is said to generate a probability density path \(p_t\)., if
      • \(p_t = [\phi_t]_* p_0\).
        • where the push-forward (change of variable) operator \(*\). is defined by
          • \([\phi_t]_* p_0 = \displaystyle p_0\left( \phi_t^{-1}(x) \right) \det\left[\frac{\partial \phi_t^{-1}}{\partial x}(x)\right]\).
  • Drawbacks)
    • ODE simulations for the forward and backward propagation are computationally expensive.
      • cf.) ODE simulation refers to simulating \(x_t, \forall t\in[0,1]\).
      • Later works that tried to mitigate this by
        • regularizing the ODE to be easier to solve
          • Dupont et al. 2018
          • Yang et al. 2019
          • Finlay et al. 2020
          • Onken et al 2021
          • Tong et al 2020
          • Kelly et al 2020
          • Du et al 2022
        • developing simulation free CNF training
          • Rozen et al 2021
          • Ben-Hamu et all 2022
      • Diffusion models utilized simulation-free trainings.
        • The target probability path is indirectly defined.
        • Training is done by the denoising process, a conditional objective that provides unbiased gradients w.r.t. the score matching object.
        • CFM is inspired by this idea.



3. Flow Matching

Problem Setting)

  • Let
    • \(x_1\sim q(x_1)\). : a random variable distributed according to some unknown data distribution \(q\).
      • Here, we have access to the data samples from \(q(x_1)\)..
      • But we don’t have access to the density function \(q\)..
    • \(p_t\). : a probability path s.t.
      • \(p_0=p\). : a simple distribution
        • e.g.) \(p(x) = \mathcal{N}(x\mid0,I)\).
      • \(p_1 \approx q\).
  • We want to construct the path of \(p_t\). s.t. \(p_1=q\)..
    • How?)
      • Get a nice \(v_t\). that generates such \(p_t\).


Concept) Flow Matching Objective

  • Def.)
    • Let
      • \(u_t\). : a vector field s.t. generates \(p_t\)..
    • Then, we may define the Flow Matching (FM) objective as
      • \(\mathcal{L}_{\text{FM}}(\theta) = \mathbb{E}_{t, p_t(x)} \Big[\Vert v_t(x) - u_t(x) \Vert^2\Big]\).
        • where
          • \(\theta\). : the learnable parameters of the CNF vector field \(v_t\).
          • \(t\sim\mathcal{U}[0,1]\). : the time drawn from the Uniform distribution
          • \(x\sim p_t(x)\).
  • Drawback)
    • Intractability!
      • We have no prior knowledge on \(p_t\). and \(u_t\)..
      • There can be many paths that satisfies \(p_1(x) = q(x)\)., but what to choose?
      • We don’t have access to a closed form \(u_t\). that generates \(p_t\).
  • Alternative)


3.1 Constructing Conditional Probability Paths and Vector Fields

  • Idea)
    • Let’s utilize the existing datapoint \(x_1\). by conditioning \(x\). on it
      • i.e.) \(x\mid x_1\)..

Concept) Conditional Probability Path

  • Def.)
    • Let \(x_1\). be a particular data sample
    • Then, we may get a conditional probability path \(p_t(x\mid x_1)\). s.t.
      • At \(t=0\).
        • \(p_0(x\mid x_1) = p(x)\). : the simple prior that we set
      • At \(t=1\).
        • \(p_1(x\mid x_1)\). is a distribution concentrated around \(x=x_1\).
          • e.g.) \(p_1(x\mid x_1) = \mathcal{N}(x; x_1, \sigma^2 I)\). with
            • the mean of \(x_1\).
            • sufficiently small std. dev. of \(\sigma\gt0\).

Concept) Marginal Probability Path

  • Def.)
    • Consider the the conditional probability path \(p_t(x\mid x_1)\).
    • Marginalizing \(p_t(x\mid x_1)\). over the unknown distribution \(q(x_1)\)., we may get the marginal probability path as
      • \(p_t(x) = \displaystyle\int p_t(x\mid x_1) \; q(x_1) \; \text{d}x_1\).
        • where
          • \(p_1(x) = \displaystyle\int p_1(x\mid x_1)\; q(x_1)\; \text{d}x_1 \approx q(x)\).

Concept) Marginal Vector Field

  • Def.)
    • Consider a conditional vector field \(u_t(x\mid x_1)\)..
    • Marginalizing it over posterior conditional distribution \(p_t(x_1\mid x)\)., we may get we may get the marginal vector field as
      • \(u_t(x) = \displaystyle\int u_t(x\mid x_1) \frac{p_t(x\mid x_1)\; q(x_1)}{p_t(x)}\text{d}x_1\).
        • where
          • \(u_t(\cdot\mid x_1):\mathbb{R}^d\rightarrow\mathbb{R}^d\). : a conditional vector field that generates the conditional probability path \(p_t(\cdot\mid x_1)\).
  • Derivation)
    • We may marginalize \(u_t(x\mid x_1)\). over the posterior probability of \(p_t(x_1\mid x)\). as
      \(\begin{aligned} u_t(x) &= \displaystyle\int u_t(x\mid x_1) p_t(x_1\mid x) \text{d}x_1 \\ &= \int u_t(x\mid x_1) \frac{p_t(x\mid x_1) p_t(x_1)}{p_t(x)} \text{d}x_1 & (\because\text{Bayes Rule}) \\ &= \int u_t(x\mid x_1) \frac{p_t(x\mid x_1) q(x_1)}{p_t(x)} \text{d}x_1 & (\because p_t(x_1)\triangleq q(x_1)) \\ \end{aligned}\).
  • Prop.)


Theorem 1)



3.2 Conditional Flow Matching

  • Key Idea)
    • Although we marginalized \(u_t\). using the conditional distribution \(p(x\mid x_1)\)., \(u_t\). is still intractable.
    • Thus, we cannot train on the Flow Matching Objective \(\mathcal{L}_{\text{FM}}\)..
    • What if we use \(u_t(x\mid x_1)\). instead?
      • Why?) We may arbitrarily choose \(p_t(x\mid x_1)\). and calculate \(u_t(x\mid x_1)\). based on it.
  • Training) Conditional Flow Matching (CFM) Objective
    • \(\mathcal{L}_{\text{CFM}}(\theta) = \mathbb{E}_{t,q(x_1), p_x(x\mid x_1)}\left[ \big\Vert v_t(x) - \underbrace{u_t(x\mid x_1)}_{\text{modification!}} \big\Vert^2 \right]\).
      • where
        • \(t\sim\mathcal{U}[0,1]\). (uniform)
        • \(x_1\sim q(x_1)\). : the sample drawn from the unknown data distribution
        • \(x\sim p_t(x\mid x_1)\). : Modified to the conditional distribution!
  • Prop.)
    • The Flow Matching Objective \(\mathcal{L}_{\text{FM}}(\theta)\). and the Conditional Flow Matching Objective \(\mathcal{L}_{\text{CFM}}(\theta)\). have identical gradients w.r.t. \(\theta\).
  • e.g.)
    • We may choose \(p_t(x\mid x_1)\). be the interpolation \(x_t = tx_1 + (1-t)x_0\). where
      • \(x_1\). : is the data sample
      • \(x_0\sim\mathcal{N}(0,I)\). : noise
    • Then the conditional vector field can be derived as
      • \(u_t(x\mid x_1) = \frac{\text{d}}{\text{d}t} x_t = x_1 - x_0\).



4. Conditional Probability Paths and Vector Fields

Concept) Gaussian Conditional Probability Path Family

  • Desc.)
  • Def.)
    • \(p_t(x\mid x_1) = \mathcal{N}(x ;\; \mu_t(x_1), \sigma_t(x_1)^2 I)\).
      • where
        • \(\mu : [0,1]\times\mathbb{R}^d\rightarrow\mathbb{R}^d\). : the time-dependent mean of Gaussian distribution
        • \(\sigma : [0,1]\times\mathbb{R}\rightarrow\mathbb{R}_{\gt0}\). : the time-dependent scalar standard deviation of Gaussian distribution
      • At \(t=0\).,
        • \(p_0(x) = \mathcal{N}(x\mid0,\;I^2)\). : pure Gaussian noise
          • \(\mu_0(x_1) = 0\).
          • \(\sigma_0(X_1) = 1\).
      • At \(t=1\).
        • \(p_1(x\mid x_1)\). is a concentrated Gaussian distribution centered at \(x_1\).
          • \(\mu_1(x_1) = x_1\).
          • \(\sigma_1(X_1) = \sigma_{\min}\).

Concept) Simplest Gaussian Probability Path

  • Why simplest?)
    • There are infinitely many vector fields in the Gaussian family.
    • However, the vast majority are made by the components that leave the underlying distribution invariant.
      • e.g.) Rotational components
        • Since the Gaussian distribution has the perfect sphere shape, rotational components cannot affect the underlying distribution.
    • They only result in unnecessary extra computations.
    • Thus, we may consider the simplest form only.
  • Model)
    • For
      • \(x\sim\mathcal{N}\).
      • \(p_t(x\mid x_1) = \mathcal{N}(x ;\; \mu_t(x_1), \sigma_t(x_1)^2 I)\). : the conditional probability path
        • where \(\mu_t\). and \(\sigma_t\). are differentiable by \(t\).
    • Consider the flow that satisfies the CFM as
      • \(\psi_t(x) = \sigma_t(x_1) x + \mu_t(x_1)\). s.t.
        • \(\displaystyle\frac{\text{d}}{\text{d}t} \psi_t(x) = u_t(\psi_t(x)\mid x_1)\).
          • i.e.) The target vector field is the conditional vector field for the CFM
        • \([\psi_t]_* p(x) = p_t(x\mid x_1)\).
    • Props.)
      • If \(x\sim\mathcal{N}(0,I)\)., then \(\psi_t(x)\sim\mathcal{N}(\mu_t(x_1), \sigma_t(x_1)^2 I)\).
        • Why?)
          • Since \(x\sim\mathcal{N}\)., the affine transformation of \(x\). is also Gaussian.
          • Considering that \(\sigma_t(x_1)\). and \(\mu_t(x_1)\). are given,
            • \(\psi_t(x) = \sigma_t(x_1) x + \mu_t(x_1)\). is also a affine transformation of \(x\)..
          • Thus, \(\psi_t(x)\sim\mathcal{N}\).
            • cf.) \(\psi_t(\cdot)\). itself is just a deterministic vector field.
      • Various models are available depending on how \(\mu_t\). and \(\sigma_t\). are defined
  • CFM Loss)
    • \(\displaystyle\mathcal{L}_{\text{CFM}}(\theta) = \mathbb{E}_{t,q(x_1),p(x_0)}\left[ \Big\Vert v_t(\psi_t(x_0)) - \underbrace{\frac{\text{d}}{\text{d}t} \psi_t(x_0)}_{u_t(\psi_t(x_0)\mid x_1)} \Big\Vert^2 \right]\).
      • where
        • \(x_0\sim p(x_0) = \mathcal{N}(0,I)\).
          • cf.) Recall that we want \(x\sim\mathcal{N}\Rightarrow\psi_t(x)\sim\mathcal{N}\).


Theorem 3.)

  • Thm.)
    • Let
      • \(p_t(x \mid x_1)\). : a Gaussian conditional probability path
        • i.e.) \(p_t(x\mid x_1) = \mathcal{N}(x ;\; \mu_t(x_1), \sigma_t(x_1)^2 I)\).
      • \(\psi_t\). : the corresponding flow map of \(p_t(x\mid x_1)\). and \(u_t(\psi_t(x)\mid x_1)\).
    • Then the unique vector field that defines \(\psi_t\). has the form:
      • \(\displaystyle u_t(x\mid x_1) = \frac{\sigma_t'(x_1)}{\sigma_t(x_1)} (x-\mu_t(x_1)) + \mu_t'(x_1)\).
  • Pf.)
    • For simplicity, put \(w_t(x) = u_t(x\mid x_1)\).
    • By definition of the flow, we have
      • \(\displaystyle\frac{\text{d}}{\text{d}t} \psi_t(x) = w_t(\psi_t(x)) \quad \cdots \quad (A)\)..
    • Since \(\psi_t(x) = \sigma_t(x_1)x + \mu_t(x_1)\). is the affine transformation, it is invertible.
      • Put \(x = \psi^{-1}(y) \quad \cdots \quad (B)\)..
    • Putting \(\psi' = \frac{\text{d}}{\text{d}t}\psi^{-1}(y)\). and plugging (B) into (A), we may get
      \(\frac{\text{d}}{\text{d}t} \psi_t(x) = \psi'(\psi^{-1}(y)) = w_t(y) \quad \cdots \quad (C)\)..
    • Also, from \(\psi_t(x) = \sigma_t(x_1)x + \mu_t(x_1)\)., we have
      • \(\psi_t^{-1}(y) = \displaystyle\frac{y-\mu_t(x_1)}{\sigma_t(x_1)} \quad \cdots \quad (D)\).
      • \(\psi_t'(x) = \sigma_t'(x_1) x + \mu_t'(x_1) \quad \cdots \quad (E)\).
    • From (C), we have
      \(\begin{aligned} w_t(y) &= \psi'(\psi^{-1}(y)) \\ &= \psi'\left(\frac{y-\mu_t(x_1)}{\sigma_t(x_1)}\right) & \because (D) \\ &= \sigma_t'(x_1) \cdot \left(\frac{y-\mu_t(x_1)}{\sigma_t(x_1)}\right) + \mu_t'(x_1) & \because (E) &= \frac{\sigma_t'(x_1)}{\sigma_t(x_1)} (x-\mu_t(x_1)) + \mu_t'(x_1) & \text{QED} \end{aligned}\).


e.g.) Diffusion Conditional VFs

  • Reversed Variance Exploding (VE) path
    • \(p_t(x) = \mathcal{N}(x;\; x_1, \sigma_{1-t}^2 I)\).
      • where \(\sigma_t\). is an increasing function and
        • \(\sigma_0 = 0\).
        • \(\sigma_1 \gg 1\).
      • i.e.)
        • \(\mu_t(x_1) = x_1\).
        • \(\sigma_t(x_1) = \sigma_{1-t}\).
    • Then by Thm.3, we may get the conditional vector field as
      \(\begin{aligned} u_t(x\mid x_1) &= \frac{\sigma_t'(x_1)}{\sigma_t(x_1)} (x-\mu_t(x_1)) + \mu_t'(x_1) \\ &= -\frac{\sigma_{1-t}'}{\sigma_{1-t}} (x-x_1) & \because \frac{\text{d}}{\text{d}t}\mu_t(x_1)=0,\; \frac{\text{d}}{\text{d}t}\sigma_t(x_1)= -\sigma_{1-t}' \\ \end{aligned}\).
  • Reversed Variance Preserving (VP) path
    • \(p_t(x) = \mathcal{N}(x;\; \alpha_{1-t} x_1, (1-\alpha_{1-t}^2) I)\).
      • where
        • \(\alpha_{t} = e^{-\frac{1}{2}T(t)}\).
        • \(T(t) = \displaystyle\int_0^t \beta(s)\text{d}s\).
        • \(\beta\). is the noise scale function.
      • i.e.)
        • \(\mu_t(x_1) = \alpha_{1-t} x_1\).
        • \(\sigma_t(x_1) = \sqrt{1-\alpha_{1-t}^2}\).
    • Then by Thm.3, we may get the conditional vector field as
      \(\begin{aligned} u_t(x\mid x_1) &= \frac{\sigma_t'(x_1)}{\sigma_t(x_1)} (x-\mu_t(x_1)) + \mu_t'(x_1) \\ &= \frac{-\frac{-2 \alpha_{1-t} \alpha_{1-t}'}{2\sqrt{1-\alpha_{1-t}^2}}}{\sqrt{1-\alpha_{1-t}^2}} (x-\alpha_{1-t} x_1) - \alpha_{1-t}' x_1 \\ &= \frac{\alpha_{1-t}\alpha_{1-t}'}{1-\alpha_{1-t}^2} (x - \alpha_{1-t} x_1) - \alpha_{1-t}' x_1 \\ &= \alpha_{1-t}' x_1 \left(\frac{\alpha_{1-t}^2}{1-\alpha_{1-t}^2} - 1\right) + \frac{\alpha_{1-t}\alpha_{1-t}'x}{1-\alpha_{1-t}^2} \\ &= -\frac{\alpha_{1-t}' x_1}{1-\alpha_{1-t}^2} + \frac{\alpha_{1-t}\alpha_{1-t}'x}{1-\alpha_{1-t}^2} \\ &= \frac{\alpha_{1-t}'}{1-\alpha_{1-t}^2} (\alpha_{1-t} x - x_1) \\ & \vdots \\ &= -\frac{T'(1-t)}{2} \left[\frac{e^{-T(1-t)}x - e^{-\frac{1}{2}T(1-t)}x_1}{1-e^{-T(1-t)}}\right] \end{aligned}\).
  • Prop.)
    • Coincides with the vector field in the deterministic probability flow from the Score-Based Models
    • Combining the diffusion conditional VF with the FM objective offers more stable and robust results.
    • Diffusion processes cannot reach a true noise distribution in finite time
      • i.e.) \(x_T\). is not pure noise but the approximation.
      • However, in CFM, since \(p_0(x)\). is deterministically set to be pure Gaussian noise, this problem never happens.

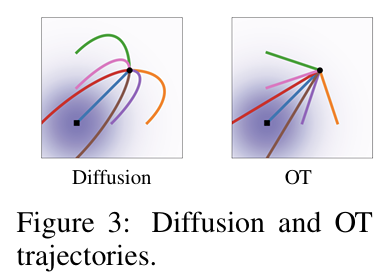

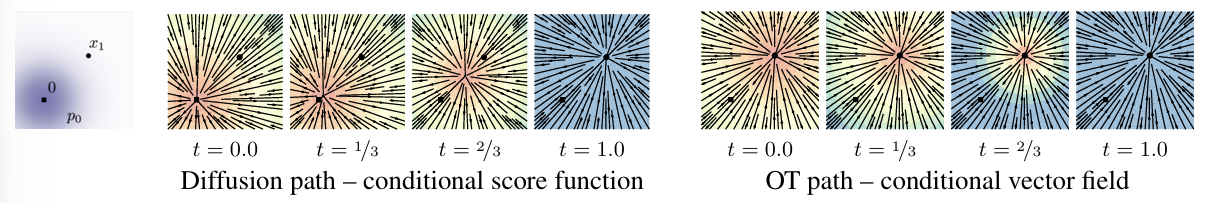

e.g.) Optimal Transport Conditional VFs

  • Idea)
    • Define the mean and the std to simply change linearly in time \(t\).
      • Why?)
        • Recall that the Optimal Transport (OT) attempts to minimize the cost function.
        • The McCann’s Theorem proved that the affine transformation is the optimal transportation map between two Gaussian distributions.
          • cf.) McCann’s Displacement Interpolation
            \(\begin{aligned} \psi_t(x_0) &= (1-t)x_0 + t\psi_1(x_1) \\ &= (1-t)x_0 + t(\sigma_{\min}x_0 + x_1) \\ &= \underbrace{[1-(1-\sigma_{\min})t]}_{\sigma_t} x_0 + \underbrace{t x_1}_{\mu_t} \end{aligned}\).
            • where \(x_0\). is the pure noise.
          • i.e.) \(\mu_t\). and \(\sigma_t\). are linear to \(t\).
  • Model)
    • Following the OT above, we may set the flow \(\psi_t(x_0)\). as
      • \(\psi_t(x_0) = \underbrace{[1-(1-\sigma_{\min})t]}_{\sigma_t(x_1)} x_0 + \underbrace{t x_1}_{\mu_t(x_1)}\).
    • Conditional Probability Path
      • \(p_t(x\mid x_1) = \mathcal{N}\left(x;\; tx_1, (1-(1-\sigma_{\min})t)^2 I\right)\).
      • i.e.)
        • \(\mu_t(x) = tx_1\).
        • \(\sigma_t(x) = 1-(1-\sigma_{\min})t\).
    • Then by Thm.3, we may get the conditional vector field as
      \(\begin{aligned} u_t(x\mid x_1) &= \frac{\sigma_t'(x_1)}{\sigma_t(x_1)} (x-\mu_t(x_1)) + \mu_t'(x_1) \\ &= \frac{\sigma_{\min}-1}{1-(1-\sigma_{\min})t} (x-tx_1) + x_1 \\ &= \frac{(\sigma_{\min}-1)x + x_1}{1-(1-\sigma_{\min})t} \\ \end{aligned}\).
      • Pf.)
        • The value \(x\). at time \(t\). is \(\psi_t(x_0)\).
        • Thus, \(x = \psi_t(x_0) = [1-(1-\sigma_{\min})t] x_0 + t x_1\).
        • We may rewrite it as
          • \(x_0 = \displaystyle\frac{x-tx_1}{1-(1-\sigma_{\min})t}\).
        • Then, we may get
          \(\begin{aligned} u_t(x\mid x_1) &= \frac{\text{d}}{\text{d}t} \psi_t(x_0) \\ &= -(1-\sigma_{\min})x_0 + x_1 &\cdots x_0 \text{ notation} \\ &= -(1-\sigma_{\min}) \left(\frac{x-tx_1}{1-(1-\sigma_{\min})t}\right) + x_1 \\ &= \frac{(\sigma_{\min}-1)x + x_1}{1-(1-\sigma_{\min})t}&\cdots x \text{ notation} \\ \end{aligned}\).
    • CFM Loss)
      • \(\mathcal{L}_{\text{CFM}}(\theta) = \mathbb{E}_{t,q(X_1),p(x_0)}\left[ \Big\Vert v_t(\psi_t(x_0)) - \underbrace{\big( x_1 - (1-\sigma_{\min}) x_0 \big)}_{x_0 \text{ notation}} \Big\Vert^2 \right]\).
  • Prop.)
    • The conditional flow \(\phi_t(x)\). is the Optimal Transport (OT) displacement map between \(p_0(x\mid x_1)\). and \(p_1(x\mid x_1)\).


Analysis) Diffusion vs OT Conditional VFs

  • Particles under the OT displacement map always move in straight line trajectories with constant speed.
  • OT paths’s conditional vector field has constant direction in time.
    • The arrows are the score functions \(\nabla\log p_t(x\mid x_1)\).
  • Sampling trajectory from diffusion paths can “overshoot” the final sample, resulting in unnecessary backtracking
    • Whilst the OT paths are guaranteed to stay straight.



6. Experiments

6.1 Density Modeling and Sample Quality on ImageNet

  • Experiment
    • Data)
      • CIFAR 10, ImageNet \(32^2, 64^2, 128^2\).
    • Model Architecture)
      • UNet
    • Compared Algorithms
    • Result)
      • Flow Matching with OT was the best.
        • lowest negative log-likelihood (NLL)
        • lowest FID
        • lowest number of function evaluation (NFE)

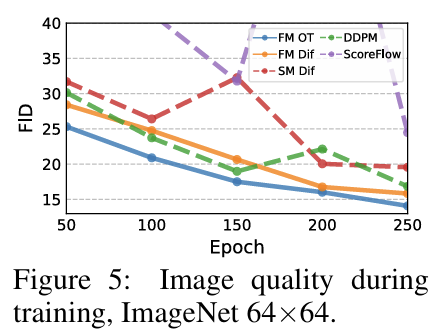

        • converged much faster than diffusion models.

6.2 Sampling Efficiency

6.3 Conditional Sampling from Low-Resolution Images



Back to Main



Enjoy Reading This Article?

Here are some more articles you might like to read next:

  • Flow Straight and Fast - Learning to Generate and Transfer Data with Rectified Flow (Rectified Flow)
  • (DM Reconst.) Ch.3 Score-Based Perspective - From EBMs to NCSN
  • Score-Based Generative Modeling through Stochastic Differential Equation
  • Denoising Diffusion Probabilistic Models (DDPM)
  • (DM Reconst.) Ch.5 Flow-Based Perspective - From NFs to Flow Matching
