Generative Adversarial Nets (GAN)

[@goodfellowGenerativeAdversarialNetworks2014]

1. Introduction

Concept) Adversarial Nets Framework

• Desc.)
  • Two Agents
    • Generative Model
      • Goal)
        • Sample by passing random noise through multilayer perceptron
    • Discriminative Model
      • Goal)
        • Determine whether a sample is from the model distribution or the data distribution
      • Desc.)
        • This is also a multilayer perceptron.
• Prop.)
  • We can train both models using backpropagation and dropout algorithm.
  • We can sample from the generative model using only forward propagation.
  • No approximate inference or Markov chains are necessary.

3. Adversarial Nets

Concept) Two-Player Minimax Game

• Setting)
  • Generator
    • $G(\boldsymbol{z}; \theta_g)$.
      • Input
        • $\boldsymbol{z}$ : the noise
          • where
            • $\boldsymbol{z}\sim p_{\boldsymbol{z}}(\boldsymbol{z})$.
            • $p_{\boldsymbol{z}}(\boldsymbol{z})$ is a prior.
      • Output
        • $p_g$ : the generator’s distribution over data $\boldsymbol{x}$.
      • Props.)
        • MLP with parameters $\theta_g$
        • Differentiable function
  • Discriminator
    • $D(\boldsymbol{x}; \theta_d)$ : ‘s mapping
      • Input
        • $\boldsymbol{x}$ : the data from either $p_{\text{data}}(\boldsymbol{x})$ or $p_g(\boldsymbol{x})$
      • Output
        • the probability that $\boldsymbol{x}$ came from $p_{\text{data}}(\boldsymbol{x})$
          • cf.) $\displaystyle D^*(\boldsymbol{x}) = \frac{p_{\text{data}}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_g(\boldsymbol{x})}$
      • Props.)
        • MLP with parameters $\theta_d$
        • Differentiable function
• Problem Def.)
  • $\displaystyle \min_G\max_D\; V(D,G) = \mathbb{E}{\boldsymbol{x}\sim p{\text{data}}(\boldsymbol{x})} \left[ \log D(\boldsymbol{x}) \right] + \mathbb{E}{\boldsymbol{z}\sim p{\boldsymbol{z}}(\boldsymbol{z})} \left[ \log (1 - D(G(\boldsymbol{z}))) \right]$.
    • Desc.)
      • We train…
        • $D$ to maximize the probability of assigning the correct label to both training examples and samples from $G$.
        • $G$ to minimize $\log(1-D(G(\boldsymbol{z})))$

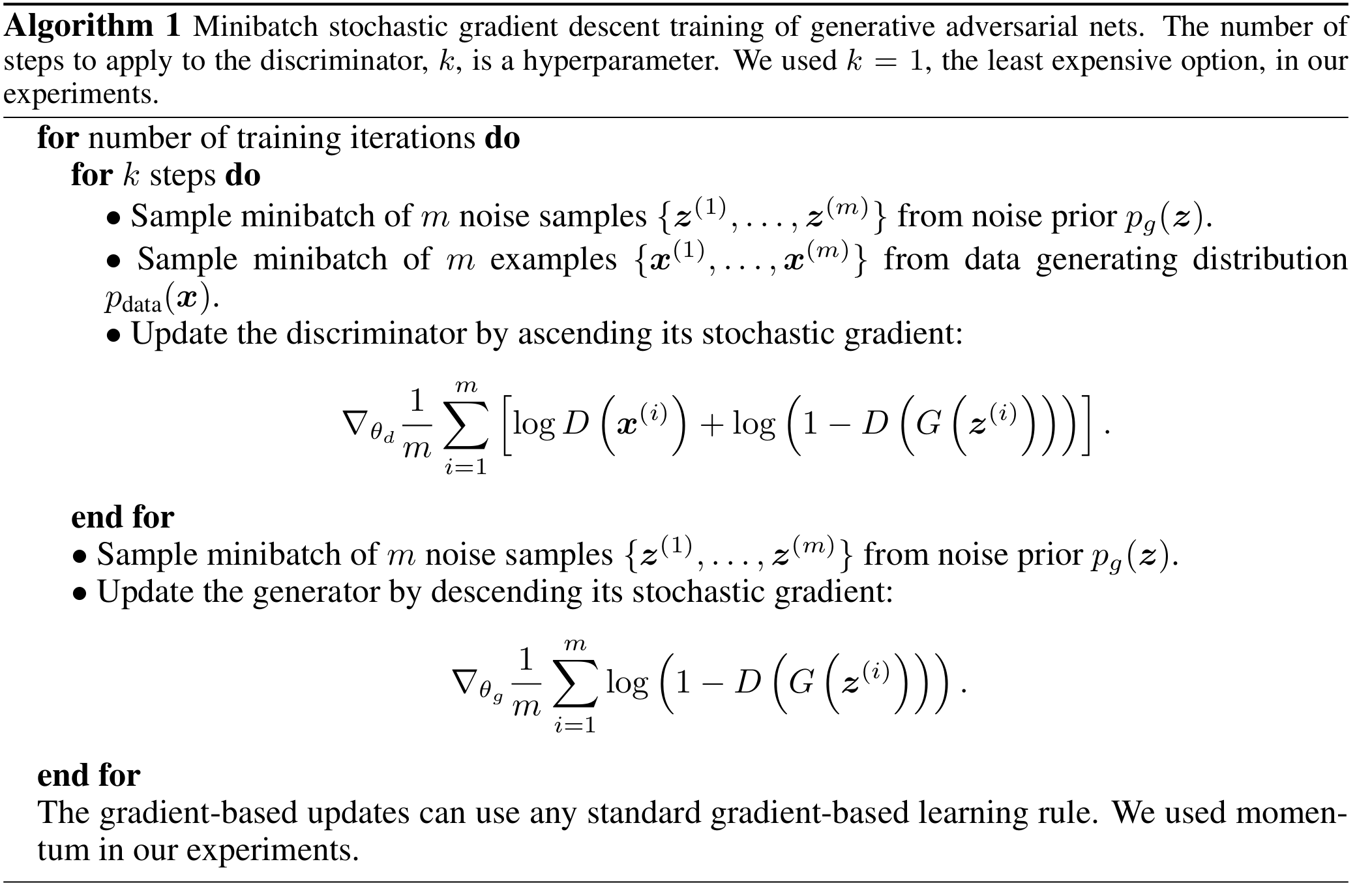

Algorithm 1)

• Implementation)

• Desc.)
  • One iteration
    • Optimize $D$ for $k$ times and optimize $G$ once.
      • Why doing this?)
        • Optimizing $D$ to completion would result in overfitting!
  • $G$’s optimization target in the early stage
    • $\displaystyle\max_G \log D(G(\boldsymbol{z}))$ instead of $\displaystyle\min_G \log (1-D(G(\boldsymbol{z})))$
      • Why?)
        • Early in learning, $G$ may be poor, so that $D$ can reject samples with high confidence.
        • Then $\log (1-D(G(\boldsymbol{z})))$ saturates.
          • Why?)
            • Suppose $\boldsymbol{x}$ is from $G$ and $D$ works well.
            • Then, $D(G(\boldsymbol{z})) \approx 0 \Rightarrow \log (1-D(G(\boldsymbol{z}))) \approx \log(1) = 0$

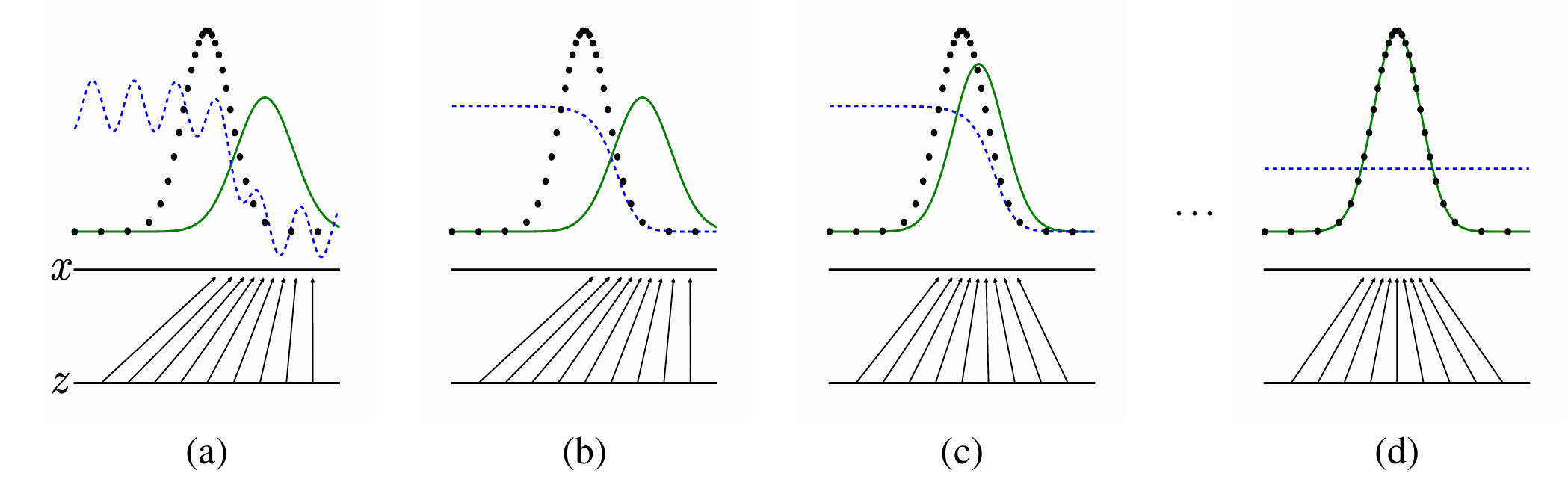

• Learning in Steps
  • Settings)
    • Blue dashed line : the discriminative distribution $D$
    • Black dotted line : data generating distribution $p_{\text{data}}$
    • Green solid line : the generative distribution $p_g$

4. Theoretical Results

4.1 Global Optimality

Prop. 1)

• Theorem)
  • For $G$ fixed, the optimal discriminator $D^*$ is
    • $\displaystyle D^*G (\boldsymbol{x}) = \frac{p{\text{data}}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}$.
• pf.)
  • Recall that
    $\begin{aligned} V(G,D) &= \mathbb{E}{\boldsymbol{x}\sim p{\text{data}}(\boldsymbol{x})} \left[ \log D(\boldsymbol{x}) \right] + \mathbb{E}{\boldsymbol{z}\sim p{\boldsymbol{z}}(\boldsymbol{z})} \left[ \log (1 - D(G(\boldsymbol{z}))) \right]
    &= \int_x p_{\text{data}}(\boldsymbol{x}) \log D(\boldsymbol{x}) \text{d}\boldsymbol{x} \;+\; \int_z p_{\boldsymbol{z}}(\boldsymbol{z}) \log (1-D(g(\boldsymbol{z}))) \text{d} \boldsymbol{z}
    \end{aligned}$
  • Putting $p_g(\boldsymbol{x}) = \displaystyle\int \delta(x-G(z)) p_z(z) \text{d}z$ for the dirac-delta distribution $\delta(\cdot)$, we get
    • $\displaystyle\int_z p_{\boldsymbol{z}}(\boldsymbol{z}) \log (1-D(g(\boldsymbol{z}))) \text{d} \boldsymbol{z} = \int_x p_g(x)\log(1-D(x))\text{d}x$.
  • Thus,
    • $V(G,D) = \displaystyle \int_x p_{\text{data}}(\boldsymbol{x}) \log D(\boldsymbol{x}) + p_g(x)\log(1-D(x)) \text{d}\boldsymbol{x}$.
  • Consider a function $y\rightarrow a\log(y) + b\log(1-y)$
    • Then $\displaystyle\max_{y\in[0,1]} y = \frac{a}{a+b},\quad \forall (a,b) \in\mathbb{R}^2 \backslash {0,0}$
  • Therefore,
    $\begin{aligned} D^*G (\boldsymbol{x}) &= \arg\max_D V(G,D)
    &= \arg\max_D \int_x p{\text{data}}(\boldsymbol{x}) \log D(\boldsymbol{x}) + p_g(x)\log(1-D(x)) \text{d}\boldsymbol{x}
    &= \frac{p_{\text{data}}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})} \end{aligned}$.
• Prop.)
  • The training objective for $D$ can be interpreted as maximizing the log-likelihood for estimating the conditional probability $P(Y=y\mid x)$
    • where $Y = \begin{cases} 1 & \text{if } x \text{ comes from } p_{\text{data}} \ 0 & \text{if } x \text{ comes from } p_{g} \end{cases}$.
  • The problem goes
    $\begin{aligned} \max_D V(G,D) &= \mathbb{E}{x\sim p{\text{data}}} [\log D^_G(x)] + \mathbb{E}_{z\sim p_z} [\log(1- D^G(G(z)))]
    &= \mathbb{E}{x\sim p_{\text{data}}} [\log D^_G(x)] + \mathbb{E}_{x\sim p_g} [\log(1- D^G(x))]
    &= \mathbb{E}{x\sim p_{\text{data}}} \left[\log\frac{p_{\text{data}}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}\right] + \mathbb{E}{x\sim p_g} \left[\log\frac{p{g}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}\right]
    \end{aligned}$.

Theorem 1)

• Theorem)
  • The global minium of the virtual training criterion $C(G)$ is achieved iff. $p_g = p_{\text{data}}$.
    • where
      • $C(G) = V(D^*_G, G)$.
      • $\displaystyle D^*G (\boldsymbol{x}) = \frac{p{\text{data}}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}$.
  • At that point $C(G)$ achieves the value $-\log4$.
• pf.)
  • By Definition,
    $\begin{aligned} C(G) = V(D^*G, G) &= \mathbb{E}{x\sim p_{\text{data}}} \left[\log\frac{p_{\text{data}}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}\right] + \mathbb{E}{x\sim p_g} \left[\log\frac{p{g}(\boldsymbol{x})}{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}\right]
    &= \mathbb{E}{x\sim p{\text{data}}} \left[\log\left( \frac{1}{2}\cdot \frac{p_{\text{data}}(\boldsymbol{x})}{\frac{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}{2}} \right)\right] + \mathbb{E}{x\sim p_g} \left[ \log\left( \frac{1}{2}\cdot \frac{p{g}(\boldsymbol{x})}{\frac{p_{\text{data}}(\boldsymbol{x}) + p_{g}(\boldsymbol{x})}{2}} \right)\right]
    &= -\log4 + D_{KL}\left(p_{\text{data}} \left\Vert\frac{p_{\text{data}}+p_g}{2} \right. \right) + D_{KL}\left(p_g \left\Vert\frac{p_{\text{data}}+p_g}{2} \right. \right)
    &= -\log4 + 2\cdot JSD(p_{\text{data}} \Vert p_{g}) \end{aligned}$.
  • The optimal case will be
    • $p_g = p_{\text{data}} \Rightarrow D^*_G(x) = 0.5$.
  • Thus,
    $\begin{aligned} C(G) = \max_D V(G,D^_G) &= \mathbb{E}_{x\sim p_{\text{data}}} [\log D^G(x)] + \mathbb{E}{x\sim p_g} [\log(1- D^*G(x))]
    &= \mathbb{E}{x\sim p_{\text{data}}} [\log 0.5] + \mathbb{E}_{x\sim p_g} [\log 0.5]
    &= -\log4
    \end{aligned}$.

4.2 Convergence of Algorithm 1

Prop 2)

• Theorem)
  • If $G$ and $D$ have enough capacity, and at each step of Algorithm 1, the discriminator is allowed to reach its optimum given $G$, and $p_g$ is updated so as to improve the criterion
    • $\mathbb{E}{x\sim p{\text{data}}} [\log D^_G(x)] + \mathbb{E}_{x\sim p_g} [\log(1- D^_G(x))]$.
  • then, $p_g$ converges to $p_{\text{data}}$

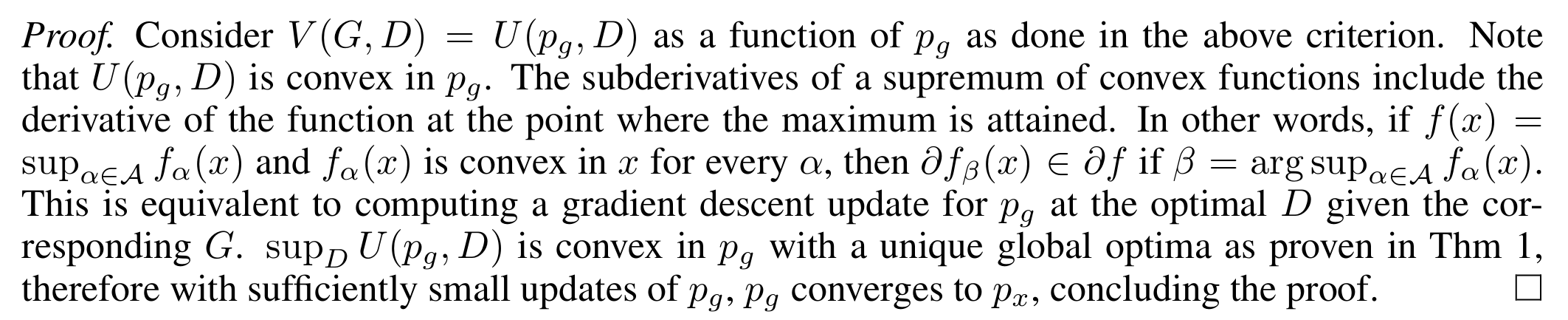

• pf.)

Practical Props.)

• Adversarial nets represent a limited family of $p_g$ distributions via the function $G(z;\theta_g)$
• Optimize $\theta_g$ rather than $p_g$ itself.
