Improved Denoising Diffusion Probabilistic Models (Improved DDPM)

Created on September 12, 2025

2025   ·   DDPM   log_likelihood   noise_schedule   gradient_noise   ·   diffusion_model

hozy Summary

  • DDPM was unable to achieve competitive log likelihood.
    • cf.) Why log-likelihood?
      • Razavi et al.,2019
        • Optimizing log-likelihood forces generative models to capture all of the modes of the data distribution
      • Henighan et al.,2020
        • Small improvements in log-likelihood can have a dramatic impact on sample quality and learnt feature representations
    • cf.) Smaller log-likelihood is better
      • Why?)
        • Recall that \(p_\theta(x)\in[0,1]\)..
        • Thus, \(\log p_\theta(x) \le 0\)..
        • Hence, we use \(-\log p_\theta(x) \ge 0\).
        • Then, \(\displaystyle\frac{\partial (-\log p_\theta(x))}{\partial p_\theta(x)} \lt 0\).
          • i.e.) \(p_\theta(x) \uparrow \; \Rightarrow -\log p_\theta(x) \downarrow\).
    • Section 3 find ways to improve this by modifying DDPM.
      • How?)
        • 3.1 Learning reverse process variance
          • \(L_{\text{hybrid}} = L_{\text{simple}} + \lambda L_{\text{vlb}}\).
          • \(\Sigma_\theta(x_t, t) = \exp( v\log\beta_t + (1-v)\log\tilde{\beta}_t)\).
        • 3.2 Improving the Noise Schedule
          • \(\bar{\alpha}_t = \displaystyle\frac{f(t)}{f(0)},\quad \text{s.t. } f(t) = \cos\left( \frac{t/T + s}{1+s} \cdot \frac{\pi}{2} \right)^2\).
          • \(\beta_t = \displaystyle 1-\frac{\bar{\alpha}_t}{1-\bar{\alpha}_t}\).
        • 3.3. Reducing Gradient Noise
          • \(L_{\text{vlb}} = \displaystyle\mathbb{E}_{t\sim p_t} \left[\frac{L_t}{p_t}\right]\).
          • \(p_t\varpropto\sqrt{\mathbb{E}[L_t^2]}\).



2. Denoising Diffusion Probabilistic Models

2.1 Definitions

  • \(x_0\sim q(x_0)\). : a given dataset
  • Forward Process
    • Def.)
      • \(q\). : the forward noising process which produces latents \(x_1,\cdots,x_T\). by adding Gaussian noise at time \(t\). with variance \(\beta_t\in(0,1)\). as
        • \(q(x_1,\cdots,x_T\mid x_0) := \displaystyle\prod_{t=1}^T q(x_t\mid x_{t-1})\).
          • where \(q(x_t\mid x_{t-1}) := \displaystyle\mathcal{N}(x_t;\; \sqrt{1-\beta_t} x_{t-1}, \beta_t\mathbf{I})\).
      • Prop.)
        • Given sufficiently large \(T\). and well behaved schedule of \(\beta_t\)., we have
          • \(x_T\sim\mathcal{N}(0,\mathbf{I})\).
        • Directly sampling an arbitrary \(t\).-th step
          • \(q(x_t\mid x_0) = \mathcal{N}(x_t;\; \sqrt{\bar{\alpha}_t} x_0, (1-\bar{\alpha}_t)\mathbf{I})\).
            • where
              • \(\alpha_t := 1-\beta_t\).
              • \(\bar{\alpha}_t := \displaystyle\prod_{s=0}^t \alpha_s\).
          • \(x_t = \sqrt{\bar{\alpha}_t}x_0 + \sqrt{1-\bar{\alpha}_t}\epsilon\).
            • where \(\epsilon\sim\mathcal{N}(0,\mathbf{I})\).
        • \(1-\bar{\alpha}_t\). tells us the variance of the noise for an arbitrary step.
        • Posterior \(q(x_{t-1}\mid x_t, x_0)\).
          • Let
            • \(q(x_{t-1}\mid x_t, x_0) = \mathcal{N}(x_{t-1};\;\tilde{\mu}(x_t, x_0), \tilde{\beta}_t\mathbf{I})\).
              • \(\tilde{\mu}(x_t, x_0)\). : the posterior mean
              • \(\tilde{\beta}_t\). : the posterior variance.
          • By the Bayes rule, we have
            • \(q(x_{t-1}\mid x_t, x_0)\varpropto q(x_t\mid x_{t-1}, x_0)q(x_{t-1}\mid x_0)\).
          • Thus, we may denote the moments of the posterior \(q\). as
            • \(\tilde{\beta}_t := \displaystyle\frac{1-\bar{\alpha}_{t-1}}{1-\bar{\alpha}_t} \beta_t\).
            • \(\tilde{\mu}_t(x_t,x_0) := \displaystyle\frac{\sqrt{\bar{\alpha}_{t-1}}\beta_t}{1-\bar{\alpha}_t} x_0 + \frac{\sqrt{\alpha_{t}}(1-\bar{\alpha}_{t-1})}{1-\bar{\alpha}_t} x_t\).
  • Reverse Process
    • Def.)
      • \(p_\theta\). : approximate \(q\). as
        • \(p_\theta(x_{t-1}\mid x_t) := \mathcal{N}(x_{t-1};\; \mu_\theta(x_t,t), \Sigma_\theta(x_t, t))\).
          • where \(p_\theta(x_{t-1}\mid x_t) \approx \underbrace{q(x_{t-1}\mid x_{t})}_{\text{reverse order!}}\).
  • Variational Lower Bound
    • Def.)
      • \(L_{\text{vlb}} := L_0 + L_1 + \cdots + L_{T-1} + L_T\).
        • where
          • \(L_0 := -\log p_\theta(x_0\mid x_1)\).
          • \(L_{t-1} := D_{KL}\left( q(x_{t-1}\mid x_t, x_0) \;\Vert\; p_\theta(x_{t-1}\mid x_t) \right)\).
          • \(L_{T} := D_{KL}\left( q(x_{T}\mid x_0) \;\Vert\; p(x_{T}) \right)\).
            • cf.) \(L_T\). is independent of \(\theta\).
              • Why?) \(x_T\). is a pure noise if the forward process has done its job properly.
    • Prop.)
      • If \(q,p_\theta\). are all Gaussians, we may get the closed form solutions for \(\forall L\)..
      • DDPM used discretization to calculate the likelihood \(p_\theta(x_{0}\mid x_1)\).


2.2 Training in Practice

  • Sampling \(t\).
    • \(t\sim\text{Uniform}(1,T)\). for each image in each mini-batch
  • Parameterizing \(\mu_\theta(x_t,t)\).
    • We may derived closed form Gaussian posterior of the forward process \(q(x_{t-1}\mid x_t,x_0)\)..
    • And, we may use the posterior mean \(\tilde{\mu}\). for the \(p_\theta\).’s mean parameterization.
      • \(\tilde{\mu}(x_t,t) = \displaystyle\frac{1}{\sqrt{\alpha_t}}\left( x_t - \frac{\beta_t}{\sqrt{1-\bar{\alpha}_t}} \epsilon_\theta(x_t,t) \right) = \mu_\theta(x_t,t)\).
  • Best optimization target
    • \(L_{\text{simple}} = \mathbb{E}_{t,x_0,\epsilon}\left[ \Vert \epsilon - \epsilon_\theta(x_t,t) \Vert^2 \right]\).


2.3 Weakness

  • DDPM was unable to achieve competitive log likelihood.
    • cf.) Why log-likelihood?
      • Razavi et al.,2019
        • Optimizing log-likelihood forces generative models to capture all of the modes of the data distribution
      • Henighan et al.,2020
        • Small improvements in log-likelihood can have a dramatic impact on sample quality and learnt feature representations
    • cf.) Smaller log-likelihood is better
      • Why?)
        • Recall that \(p_\theta(x)\in[0,1]\)..
        • Thus, \(\log p_\theta(x) \le 0\)..
        • Hence, we use \(-\log p_\theta(x) \ge 0\).
        • Then, \(\displaystyle\frac{\partial (-\log p_\theta(x))}{\partial p_\theta(x)} \lt 0\).
          • i.e.) \(p_\theta(x) \uparrow \; \Rightarrow -\log p_\theta(x) \downarrow\).
    • Section 3 find ways to improve this by modifying DDPM.
      • How?)
        • 3.1 Learning reverse process variance
          • \(L_{\text{hybrid}} = L_{\text{simple}} + \lambda L_{\text{vlb}}\).
          • \(\Sigma_\theta(x_t, t) = \exp( v\log\beta_t + (1-v)\log\tilde{\beta}_t)\).
        • 3.2 Improving the Noise Schedule
          • \(\bar{\alpha}_t = \displaystyle\frac{f(t)}{f(0)},\quad \text{s.t. } f(t) = \cos\left( \frac{t/T + s}{1+s} \cdot \frac{\pi}{2} \right)^2\).
          • \(\beta_t = \displaystyle 1-\frac{\bar{\alpha}_t}{1-\bar{\alpha}_t}\).
        • 3.3. Reducing Gradient Noise
          • \(L_{\text{vlb}} = \displaystyle\mathbb{E}_{t\sim p_t} \left[\frac{L_t}{p_t}\right]\).
          • \(p_t\varpropto\sqrt{\mathbb{E}[L_t^2]}\).



3. Improving the Log-Likelihood

  • Training datasets used
    • ImageNet \(64\times64\).
    • CIFAR-10
  • Settings)
    • Original DDPM
      • Settings)
        • Optimize \(L_{\text{simple}}\).
        • \(\sigma_t^2 = \beta_t\).
        • \(T = 1000\).
        • 200K training iterations
      • Result)
        • log-likelihood of 3.99 bits/dim
    • Improved DDPM
      • Settings)
        • Optimize \(L_{\text{simple}}\).
        • \(\sigma_t^2 = \beta_t\).
        • \(T = 4000\).
        • 200K training iterations
      • Result)
        • log-likelihood of 3.77 bits/dim


3.1 Learning Reverse Process Variance

  • Key Idea)
    • Use the geometric interpolation between \(\beta_t\). and \(\tilde{\beta_t}\). as the reverse process variance parameterization of
      • \(\Sigma_\theta(x_t, t) = \exp( v\log\beta_t + (1-v)\log\tilde{\beta}_t)\).
        • where
          • \(v\). : a vector containing one component per dimension
            • cf.) This is learned by the network!
          • \(\beta_t\). : the original schedule that we assign
          • \(\tilde{\beta}_t\). : the posterior variance term of \(q\).
            • cf.) \(q(x_{t-1}\mid x_t, x_0) = \mathcal{N}(x_{t-1};\;\tilde{\mu}(x_t, x_0), \tilde{\beta}_t\mathbf{I})\).
              • where \(\tilde{\beta}_t := \displaystyle\frac{1-\bar{\alpha}_{t-1}}{1-\bar{\alpha}_t} \beta_t\).
      • cf.) Geometric Interpolation
        • \({\beta_t}^v \cdot {\tilde{\beta}_t}^{1-v} = \exp(\log({\beta_t}^v \cdot {\tilde{\beta}_t}^{1-v})) = \exp( v\log\beta_t + (1-v)\log\tilde{\beta}_t)\).
    • Then, by replacing the existing \(\Sigma_\theta\). with the above interpolation in the original DDPM’s loss, we may get a new objective function \(L_{\text{vlb}}\). s.t.
      • \(L_{\text{vlb}} = \displaystyle\mathbb{E}_q \left[ \underbrace{D_{KL}({q(\mathbf{x}_T\mid\mathbf{x}_0)}\Vert{p(\mathbf{x}_T)})}_{L_T} + \sum_{t=2}^T \underbrace{D_{KL}({q(\mathbf{x}_{t-1}\mid\mathbf{x}_t,\mathbf{x}_0)}\Vert{p_\theta(\mathbf{x}_{t-1}\mid\mathbf{x}_t)})}_{L_{t-1}} - \underbrace{\log p_\theta(\mathbf{x}_0\mid\mathbf{x}_1)}_{L_0} \right]\).
        • where
          • \(p_\theta(\mathbf{x}_{t-1}\mid\mathbf{x}_t) = \mathcal{N}(\mathbf{x}_t;\; \mu_\theta(\mathbf{x}_t,t), \underbrace{\Sigma_\theta(\mathbf{x}_t, t)}_{\text{Here!}})\).
    • Modify the learning objective into
      • \(L_{\text{hybrid}} = L_{\text{simple}} + \lambda L_{\text{vlb}}\).
        • where
          • \(L_{\text{vlb}}\). guides \(\Sigma_\theta(x_t,t)\).
            • Why needed?)
              • \(L_{\text{simple}}\). is independent of \(\Sigma_\theta(x_t,t)\).
                • cf.) \(L_{\text{simple}} = \mathbb{E}_{t,x_0,\epsilon}\left[ \Vert \epsilon - \epsilon_\theta(x_t,t) \Vert^2 \right]\).
          • \(\lambda \in\mathbb{R}\).
            • cf.) Improved DDPM used \(\lambda = 0.001\). to prevent \(L_{\text{vlb}}\). overwhelming \(L_{\text{simple}}\).
  • Why doing this?)

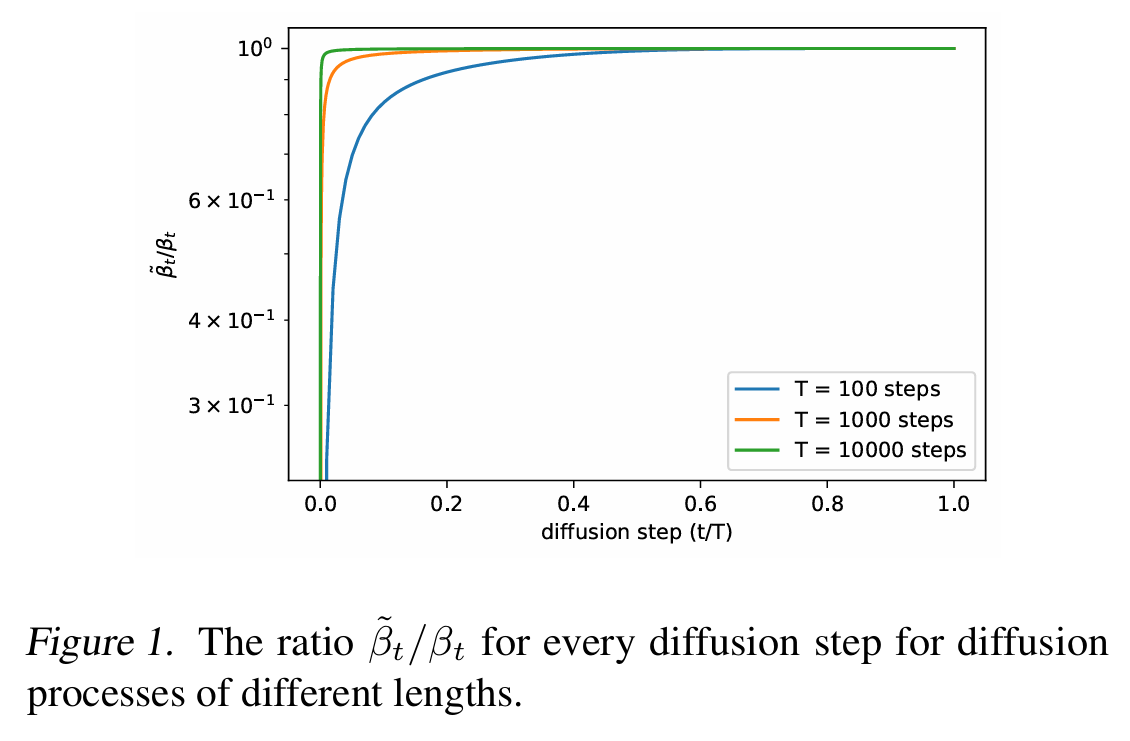

    • Original DDPM showed that using either \(\beta_t\). or \(\tilde{\beta_t}\). does not affect the sample quality.
    • This may be due to the fact that \(\beta_t\). and \(\tilde{\beta_t}\). are almost equal except near \(t=0\)..
    • Nevertheless, we should take the steps near \(t=0\). into account
      • Why?)
        • Most perceptible details are learned near, \(t=0\)..

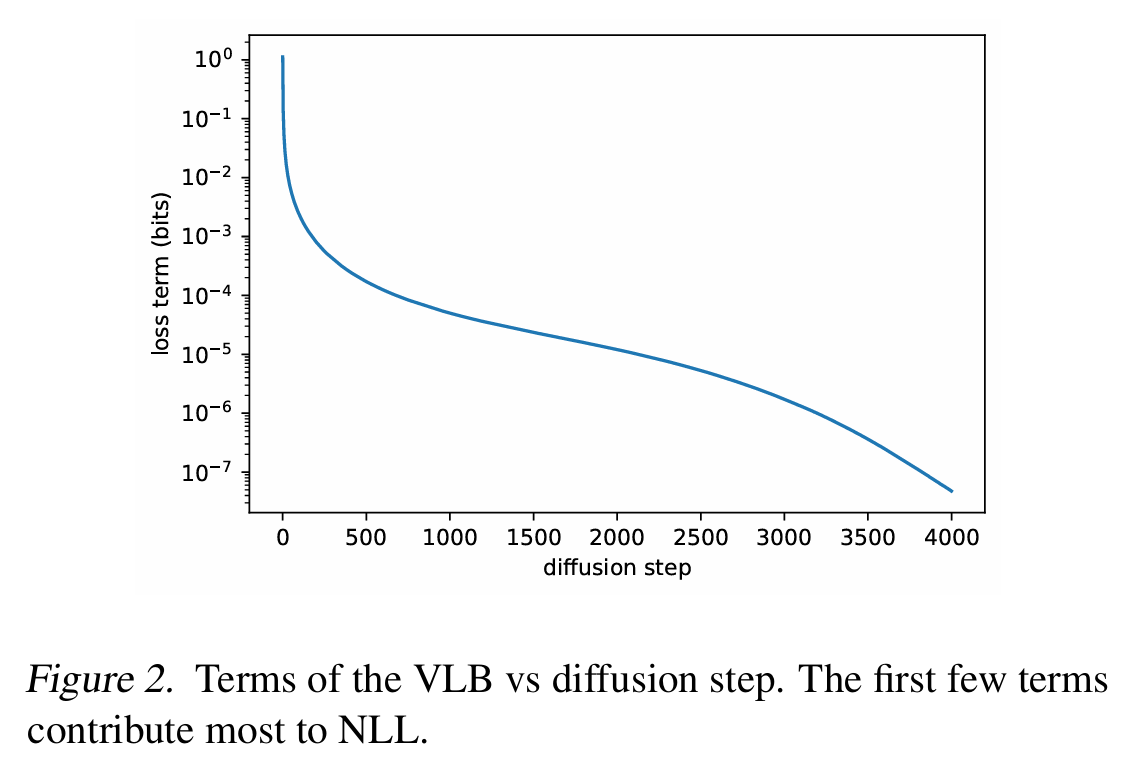

        • The graph below shows that the first few steps of the diffusion process contribute the most to the variational lower bound (ELBO).
    • The log-space interpolation provides a smooth trade-off between using $\beta_t$ and $\tilde{\beta}_t$, instead of picking one arbitrarily.
      • i.e.) Learning \(v\).!


3.2. Improving the Noise Schedule

  • Key Idea)
    • Use the cosine noise schedule of
      • \(\bar{\alpha}_t = \displaystyle\frac{f(t)}{f(0)},\quad \text{s.t. } f(t) = \cos\left( \frac{t/T + s}{1+s} \cdot \frac{\pi}{2} \right)^2\).
        • where
          • \(s\). : a small offset that prevents \(\beta_t\). from being too small near \(t=0\)..
            • Why needed?)
              • Authors found having tiny amounts of noise at the beginning of the process made it hard for the network to predict \(\epsilon\). accurately enough.
            • In practice, \(s=0.008\).
              • where \(\sqrt{\beta_0}\). being slightly smaller than the pixel bin size \(\frac{1}{127.5}\).
      • \(\beta_t = \displaystyle \min\left(1-\frac{\bar{\alpha}_t}{1-\bar{\alpha}_t}, 0.999\right)\).
        • cf.)
          • In the original DDPM, the \(\beta_t\). was set to be linear from \(10^{-4}\). to \(0.02\)..
            • Then it derived \(\bar{\alpha}_t\). from \(\beta_t\)..
          • In the Improved DDPM, we set \(\bar{\alpha}_t\). first, and then derive \(\beta_t\). from it.
        • Prop.)
          • \(\beta_t \lt 0.999\). : clipped!
            • Why?)
              • To prevent singularities at the end of the diffusion process near \(t=T\)..
              • \((\beta_t \rightarrow 1) \Rightarrow (\bar{\alpha} \rightarrow 0) \Rightarrow \tilde{\mu}_t(x_t,x_0) \rightarrow \infty\).
                • cf.) \(\tilde{\mu}_t(x_t,x_0) := \displaystyle\frac{\sqrt{\bar{\alpha}_{t-1}}\beta_t}{1-\bar{\alpha}_t} x_0 + \frac{\sqrt{\alpha_{t}}(1-\bar{\alpha}_{t-1})}{1-\bar{\alpha}_t} x_t\).
  • Purpose)
    • Original DDPM’s linear noise schedule
      • Schedule
        • Linear schedule between \(\beta_1 = 10^{-4}\). and \(\beta_T = 0.02\)..
      • Drawbacks)
        • Its linear noise schedule was sub-optimal for image resolution \(64\times64\). and \(32\times32\)..
        • At the end of the forward process it was too noisy that didn’t contribute very much to sample quality.

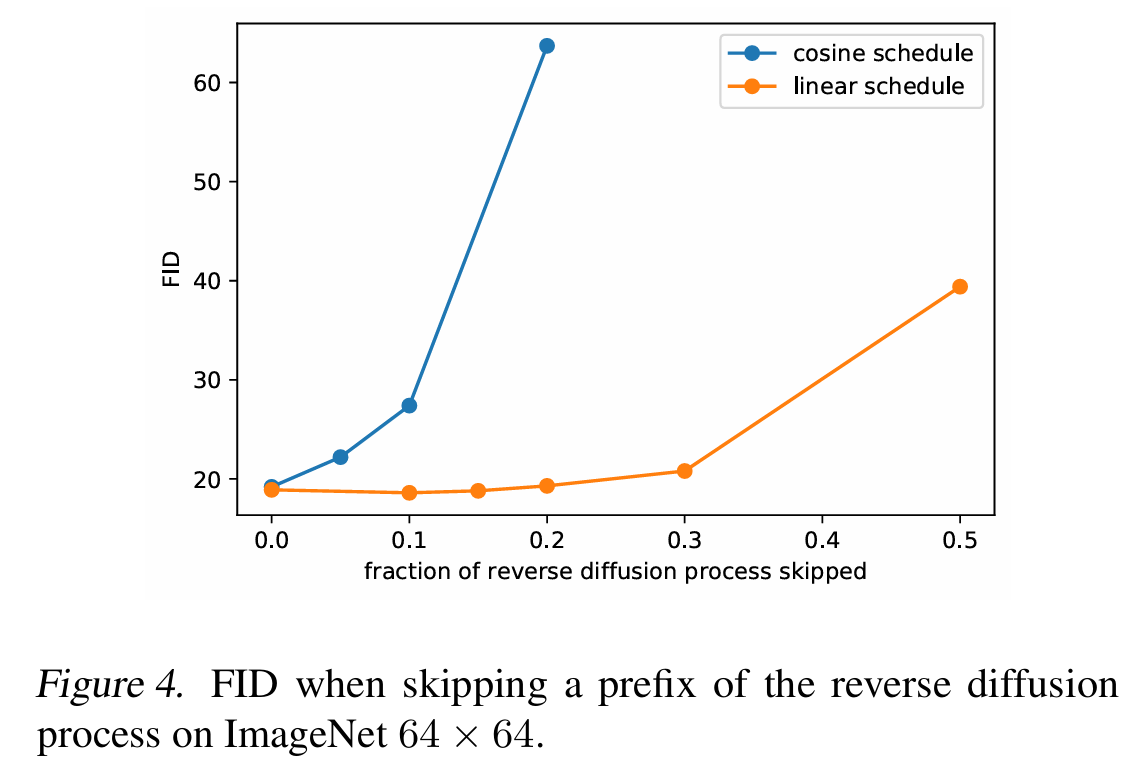

  • Pf.) The graph below shows that skipping significant portion of the diffusion process does not affect the FID score (orange line!)
  • Props.)

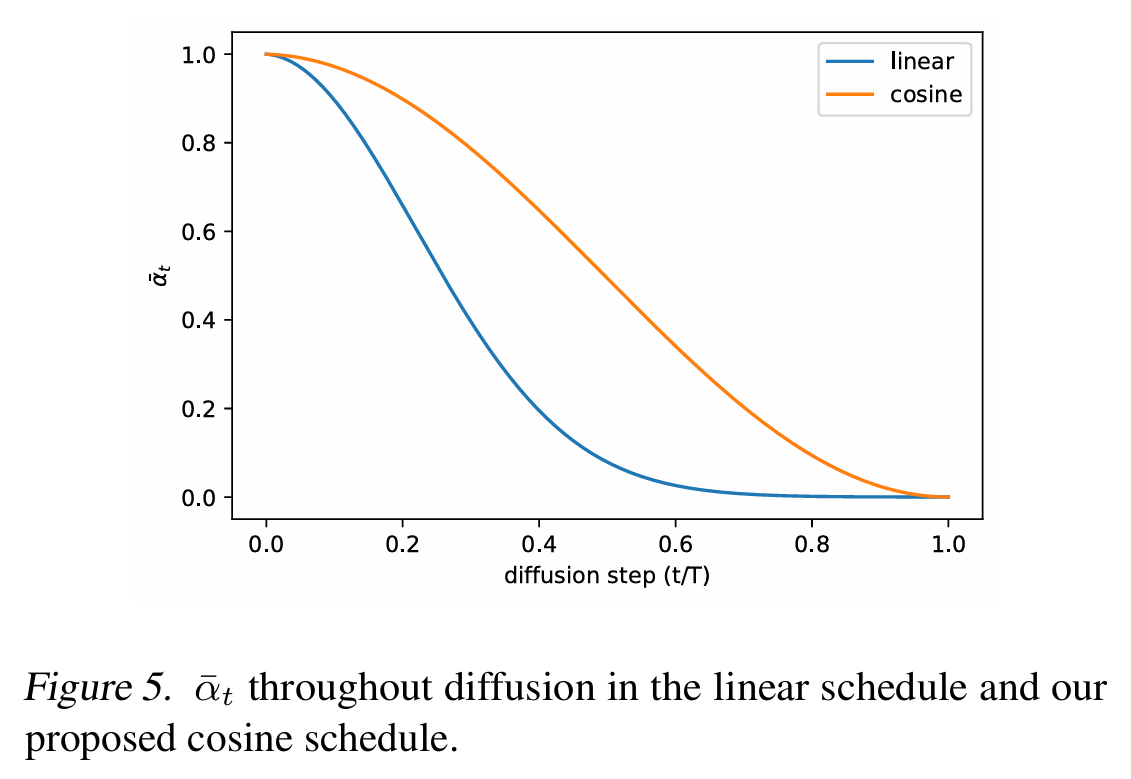

    • \(\bar{\alpha}_t\). is designed to have
      • a linear drop-off in the middle of the process
      • very little changes near extremes of \(t=0, t=T\).
    • The choice of the cosine function \(\cos^2\). is arbitrary.
      • Any other function with similar shape would work as well.


3.3. Reducing Gradient Noise

  • Problem)
    • \(L_{vlb}\). was difficult to optimize in practice.
      • Why?)
        • ELBO is the lower bound, not the likelihood itself.
          • Recall that the loss function \(L_{vlb}\). utilizes the variational lower bound (ELBO).
          • This is the lower bound of the likelihood, not itself.
          • Thus, there can be chance that the loss increase after an iteration.
        • Noise and variance from MC sampling
          • ELBO is estimated using the Monte Carlo sampling.
  • Sol.)
    • Sample \(t\sim p_t\).
      • where
        • \(p_t\varpropto\sqrt{\mathbb{E}[L_t^2]}\).
          • where \(\mathbb{E}[L_t^2]\). is the expected loss at \(t\).
          • i.e.) Greater the loss \(L_t\)., higher the chance of drawing \(t\).
        • \(\sum p_t = 1\).
      • Prop.)
        • \(\mathbb{E}[L_t^2]\). is unknown beforehand and may change throughout training.
      • How?)
        • At the beginning of the training, sample \(t\). uniformly until draw 10 samples for \(\forall t\in[0,T-1]\).
        • Then, maintain a history of the previous 10 values for each loss term, and update dynamically during training.
        • Make \(p_t\). give higher probability to the step \(t\). that has the higher expected loss \(\mathbb{E}[L_t]\).
    • Put \(L_{\text{vlb}} = \displaystyle\mathbb{E}_{t\sim p_t} \left[\frac{L_t}{p_t}\right]\).
      • i.e.) Adjust by dividing \(L_t\). with \(p_t\)..
        • Why?)
          • Due to \(p_t\)., the step \(t\). with greater loss has higher probability to be drawn.
          • By dividing \(L_t\). with \(p_t\)., we may normalize the effect of being biased by drawing them frequently.
