Scaling Rectified Flow Transformers for High-Resolution Image Synthesis (Stable Diffusion 3)

2. Simulation-Free Training of Flows

• Problem Settings)
  • \(x_0\sim p_0\). : a sample from a data distribution \(p_0\).
  • \(x_1\sim p_1\). : a sample from a noise distribution \(p_1\).
    • where
      • \(p_1=\mathcal{N}(0,1)\).
  • \(\text{d} y_t = v_{\Theta}(y_t, t) \text{d}t\). : an ordinary differential equation (ODE) that maps \(x_0\). and \(x_1\).
    • where
      • \(v\). is parameterized by the weights \(\Theta\). of a neural network
    • Sol.)
      • Directly regress a vector field \(u_t\). below.
  • \(u_t\). : a vector field that generates a probability path \(p_t\). between \(p_0\). and \(p_1\).
  • \(z_t = a_t x_0 + b_t \epsilon\). : a forward process set to construct \(u_t\).
    • where
      • \(\epsilon\sim\mathcal{N}(0,I)\).
    • Prop.)
      • For \(a_0=1, b_0=0\quad \Rightarrow\quad z_0 = x_0\).
      • For \(a_1=0, b_1=1\quad \Rightarrow\quad z_1 = \epsilon\).
      • Thus,
        • \(p_t(z_t) = \mathbb{E}_{\epsilon\sim\mathcal{N}(0,I)} p_t(z_t\mid\epsilon)\).
  • \(\psi_t\). : the flow that relates \(z_t, x_0\). and \(\epsilon\).
    • s.t.
      • \(\psi_t(\cdot\mid\epsilon) : x_0\rightarrow \underbrace{a_tx_0 + b_t \epsilon}_{z_t}\).
      • \(u_t(z\mid\epsilon) := \psi_t'\left( \psi_t^{-1}(z\mid\epsilon) \mid\epsilon \right)\).
        • Prop.)
          • Putting \(z_0 = x_0\).
            • \(z_t' = u_t(z_t\mid\epsilon)\). is the solution to the ODE
            • \(u_t(\cdot\mid\epsilon)\). generates \(p_t(\cdot\mid\epsilon)\).
        • Explicit Form)
          • \(\displaystyle u_t(z_t \mid\epsilon) = \frac{a_t'}{a_t}z_t -\frac{b_t}{2} \lambda_t' \epsilon\).
            • where \(\lambda_t := \log\frac{a_t^2}{b_t^2}\). is the log signal-to-noise ratio (SNR)
            • Derivation)
              • Consider that
                • (A) : \(\psi_t'(x_0\mid\epsilon) = \frac{\text{d}}{\text{d}t}(a_tx_0 + b_t\epsilon) = a_t'x_0 + b_t'\epsilon\).
                • (B) : \(\displaystyle\psi_t^{-1}(z) = \frac{z-b_t\epsilon}{a_t}\).
                • (C) : \(\displaystyle z_t = a_t x_0 + b_t \epsilon \quad\Leftrightarrow\quad x_0 = \frac{z_t-b_t\epsilon}{a_t}\).
                • (D) : \(\displaystyle \lambda_t' = \frac{\text{d}}{\text{d}t}\lambda_t= \left( \frac{b_t^2}{a_t^2} \right)\left( \frac{2a_t a_t'}{b_t^2} - \frac{2a_t^2 b_t'}{b_t^3} \right) = \frac{2a_t'}{a_t} - \frac{2b_t'}{b_t} = \frac{2}{b_t}\left( \frac{a_t'b_t}{a_t} - b_t' \right)\).
              • Thus,
                \(\begin{aligned} u_t(z_t\mid\epsilon) &= \psi_t'\left( \psi_t^{-1}(z_t\mid\epsilon) \mid\epsilon \right) \\ &= \psi_t'\left( \frac{z_t-b_t\epsilon}{a_t} \mid\epsilon \right) & \because(B) \\ &= \psi_t'\left( \frac{z_t -b_t\epsilon}{a_t} \right) \\\ &= a_t' \left(\frac{z_t-b_t\epsilon}{a_t}\right) + b_t'\epsilon &\because (A),(C) \\ &= \frac{a_t'}{a_t} z_t - \left(\frac{a_t'b_t}{a_t} - b_t'\right) \epsilon \\ &= \frac{a_t'}{a_t} z_t - \frac{b_t}{2}\lambda_t'\epsilon & \because (D) \end{aligned}\).

Concept) Flow Matching Objective

• \(\mathcal{L}_{\text{FM}} = \mathbb{E}_{t,p_t(z)}\left[ \big\Vert v_\Theta(z,t) - u_t(z) \big\Vert_2^2 \right]\).
  • where
    • \(\displaystyle u_t(z) = \mathbb{E}_{\epsilon\sim\mathcal{N}(0,I)}\left[ u_t(z\mid\epsilon) \frac{p_t(z\mid\epsilon)}{p_t(z)} \right]\). : the marginal vector field
  • Problem)
    • \(u_t\). is intractable

Concept) Conditional Flow Matching Objective)

\(\begin{aligned} \mathcal{L}_{\text{CFM}} &= \mathbb{E}_{t,p_t(z\mid\epsilon),p(\epsilon)}\left[ \big\Vert v_\Theta(z,t) - \underbrace{u_t(z\mid\epsilon)}_{\text{cond'l VF}} \big\Vert_2^2 \right] \\ &= \mathbb{E}_{t,p_t(z\mid\epsilon),p(\epsilon)}\left[ \bigg\Vert v_\Theta(z,t) - \underbrace{\left(\frac{a_t'}{a_t}z_t -\frac{b_t}{2} \lambda_t' \epsilon\right)}_{\text{Explicit Form}} \bigg\Vert_2^2 \right] \\ &= \mathbb{E}_{t,p_t(z\mid\epsilon),p(\epsilon)}\left[ \bigg\Vert \left(v_\Theta(z,t) - \frac{a_t'}{a_t}z_t\right) + \frac{b_t}{2} \lambda_t' \epsilon \bigg\Vert_2^2 \right] \\ &= \mathbb{E}_{t,p_t(z\mid\epsilon),p(\epsilon)} \left(-\frac{b_t}{2} \lambda_t'\right)^2 \left[ \Big\Vert \epsilon_\Theta(z,t) - \epsilon \Big\Vert_2^2 \right] & \text{Put } \epsilon_\Theta(z,t) = \frac{-2}{b_t\lambda_t'}\left(v_\Theta(z,t) - \frac{a_t'}{a_t}z_t\right) \\ \end{aligned}\).

• Prop.)
  • The gradient of the CFM objective is equivalent to that of the Flow Matching objective.
    • \(\nabla_\Theta \mathcal{L}_{\text{CFM}} = \nabla_\Theta \mathcal{L}_{\text{FM}}\).

Concept) min-SNR Weighting Scheme (Kingma & Gao, 2023)

• \(\displaystyle \mathcal{L}_w(x_0) = -\frac{1}{2}\mathbb{E}_{t\sim\mathcal{U}(t), \epsilon\sim\mathcal{N}(0,I)} \left[ w_t\lambda_t' \underbrace{\Big\Vert \epsilon_\Theta(z,t) - \epsilon \Big\Vert_2^2}_{\text{Same objective!}} \right]\).
  • Idea)
    • Previous \(\mathcal{L}_{\text{CFM}}\). had the weight of \(\left(-\frac{b_t}{2} \lambda_t'\right)^2\)..
    • Setting any other time-dependent weight other than \(\left(-\frac{b_t}{2} \lambda_t'\right)^2\). does not change the global optimum of the objective function.
    • However, it may affect the gradient that we care for the gradient descent solution.
    • Kingma & Gao suggested that clipping as \(w_t = \min(\text{SNR}_t, \gamma)\). stabilizes the training.
      • where \(\text{SNR}_t = \frac{a_t^2}{b_t^2} = \exp(\lambda_t)\).

3. Flow Trajectories

Concept) Rectified Flow

• Def.)
  • \(z_t = (1-t)x_0 + t\epsilon\). : the forward process
• Desc.)
  • Forward process is defined as straight paths between the data distribution and a standard normal distribution
  • Uses the CFM Objective \(\mathcal{L}_{\text{CFM}}\). with \(w_t^{\text{RF}} = \frac{t}{1-t}\).

Concept) EDM

• Def.)
  • \(z_t = x_0 + b_t \epsilon\). : the forward process
    • where
      • \(b_t = \exp F_{\mathcal{N}}^{-1} (t\mid P_m, P_s^2)\).
      • \(F_{\mathcal{N}}^{-1}\). : the quantile function of the normal distribution with
        • \(P_m\). : mean
        • \(P_s^2\). : variance
• Desc.)
  • The network is parameterized through an \(\mathbf{F}\).-prediction
  • The loss can be written as \(\mathcal{L}_{w_t^{\text{EDM}}}\). with
    • \(w_t^{\text{EDM}} = \mathcal{N}(\lambda_t; -2P_m, (2P_s)^2) (e^{-\lambda_t} + 0.5^2)\).

Concept) Cosine

• Def.)
  • \(z_t = \displaystyle\cos\left(\frac{\pi t}{2}\right)x_0 + \sin\left(\frac{\pi t}{2}\right) \epsilon\). : the forward process
    • cf.) Corresponds to a weighting \(w_t = \text{sech}(\lambda_t / 2)\).
• Desc.)
  • When combined with a \(\mathbf{v}\).-prediction loss, the weighting is given by \(w_t = e^{-\lambda_t/2}\).

Concept) LDM

• Desc.)
  • Variance preserving schedules
    • \(b_t = \sqrt{1-a_t^2}\).
    • \(a_t = \sqrt{\prod_{s=0}^t (1-\beta_s)}\).
      • where \(\beta_t\). is the diffusion coefficient for \(t=1,\cdots,T\).
        • DDPM : \(\beta_t = \beta_0 + \frac{t}{T-1}(\beta_{T-1}-\beta_0)\).
        • LDM : \(\beta_t = \left(\sqrt{\beta_0} + \frac{t}{T-1}\left( \sqrt{\beta_{T-1} - \beta_{0}} \right)\right)^2\).

Concept) Tailored SNR Samplers for RF Models

• Purpose)
  • Get more frequent samples for the intermediate time samples in \(t\in[0,1]\).
    • Why?)
      • For \(t=0\). and \(t=1\)., we have \(p_0\). and \(p_1\). that we can easily predict the mean.
      • However, for the intermediate steps, it’s more difficult to predict \(\epsilon-x_0\). for the velocity \(v_\Theta\).
• How?)
  • Instead of drawing \(t\sim\mathcal{U}(t)\)., use a density \(\pi(t)\). that has higher density on the intermediate steps.
    • Candidates for \(\pi(t)\).
      • Logit-Normal Sampling
      • Mode Sampling with Heavy Tails
      • CosMap
  • Utilizing the weight \(w_t^\pi\). on the objective \(\mathcal{L}_{w_t^\pi}\). has the same effect.
    • \(\displaystyle w_t^\pi = \frac{t}{1-t}\pi(t)\).

Concept) Logit-Normal Sampling

• Def.)
  • \(\displaystyle\pi_{\ln}(t;m,s) = \frac{1}{s\sqrt{2\pi}} \frac{1}{t(1-t)} \exp\left(-\frac{(\text{logit}(t)-m)^2}{2s^2}\right)\).
    • where
      • \(\text{logit}(t) = \log\frac{t}{1-t}\).
      • \(m\). : the location parameter
        • It enables us to bias the training timesteps towards either data \(p_0\). (negative \(m\).) or noise \(p_1\). (positive \(m\).)
      • \(s\). : the scale parameter
• Drawback)
  • The logit-normal density always vanishes at the endpoints 0 and 1.
• Implementation)
  • Sample \(u\sim\mathcal{N}(u;m,s)\)..
  • Map it through the standard logistic function.

Concept) Mode Sampling with Heavy Tails

• Def.)
  • \(\displaystyle\pi_{\text{mode}}(t;s) = \left\vert \frac{\text{d}}{\text{d}t} f_{\text{mode}}^{-1}(t) \right\vert\).
    • where
      • \(\displaystyle f_{\text{mode}}(u;s) = 1-u-s\cdot\left(\cos^2\frac{\pi u}{2} -1 + u\right)\).
        • which is strictly positive density on \([0,1]\).
      • \(s\). : the scale parameter
        • Set \(-1 \le s \le \frac{2}{\pi-2}\). to make \(f_{\text{mode}}\). monotonic
        • If \(s=0\)., then \(\pi_{\text{mode}}(t;s=0) = \mathcal{U}(t)\).

Concept) CosMap

• Def.)
  • \(\displaystyle\pi_{\text{CosMap}}(t) = \left\vert \frac{\text{d}}{\text{d}t} f^{-1}(t) \right\vert = \frac{2}{\pi-2\pi t + 2\pi t^2}\).
    • where
      • \(f:u\rightarrow f(u) = t\). for \(u\in[0,1]\). s.t.
        • \(\displaystyle t = f(u) = 1-\frac{1}{\tan\left(\frac{\pi u}{2}\right) + 1}\).

4. Text-to-Image Architecture

• Goal)
  • Text-conditional sampling of images
• Requirements
  • Multi modality : text and image
• General Setup)
  • LDM
    • Pretrained autoencoder
    • Encode the text conditioning \(c\). using pretrained, frozen text models.

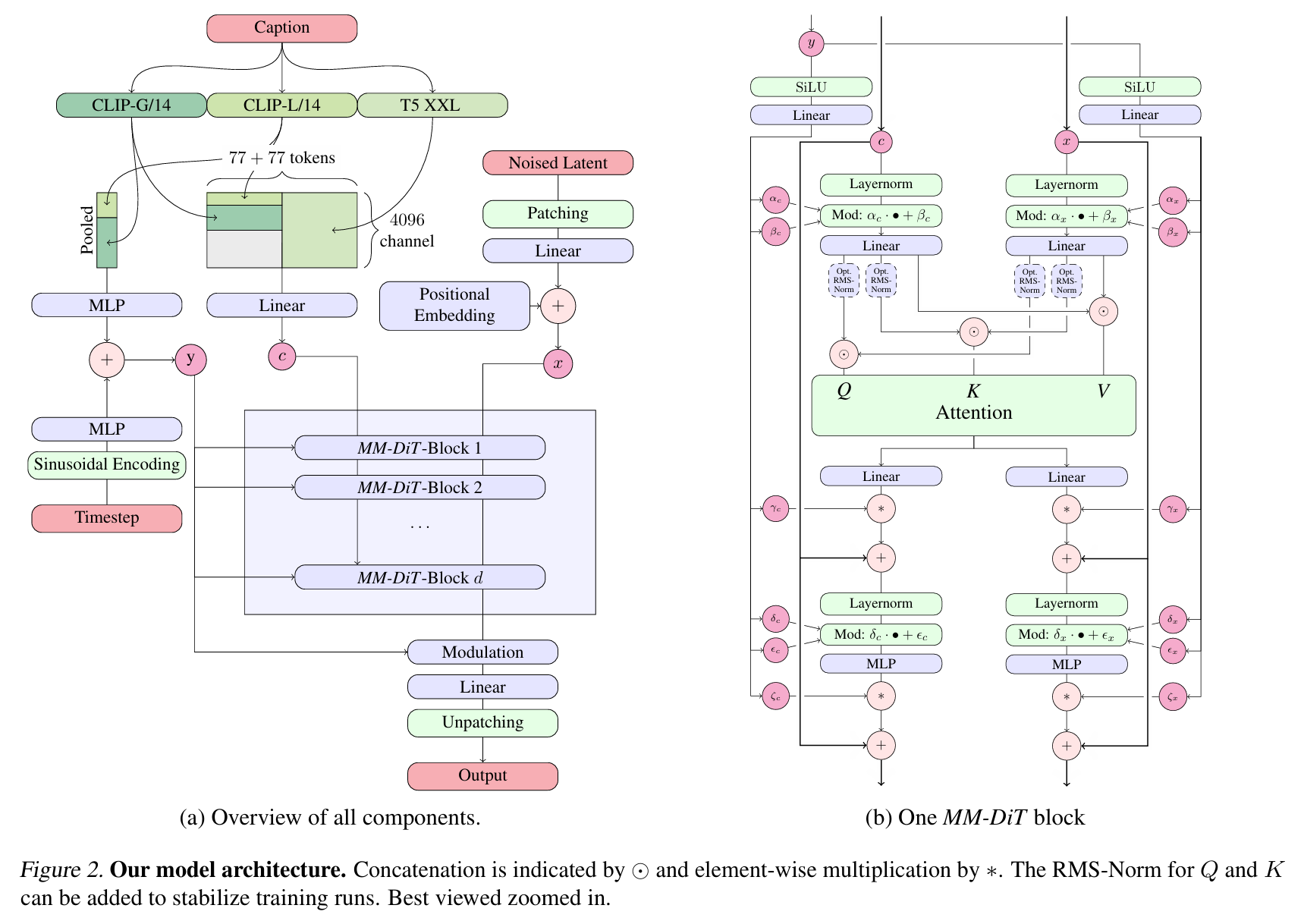

• Architecture)
  • DiT
    • Only considers class conditional image generation
    • Uses a modulation mechanism to condition the network on both the timestep of the diffusion process and the class label.
      • \(t\). : timestep
      • \(c_{\text{vec}}\). : inputs to the modulation mechanism
      • \(c_{\text{ctxt}}\).
    • Construct a sequence of embeddings of the text and image inputs.
      • Positional encodings
      • Flatten \(2\times 2\). patches of the latent pixel representation \(x\in\mathbb{R}^{h\times w\times c}\). to a patch encoding sequence of length \(\frac{1}{2}\cdot h \cdot \frac{1}{2}\cdot w\).
