(Presentation PDF) A Style-Based Generator Architecture for Generative Adversarial Networks (Style GAN)

@karrasStyleBasedGeneratorArchitecture2019

History

• GAN
  • Latent Space and Latent Variable
    • DCGAN (2015)
      • Introduced
        • Convolution (CNN)
        • Latent space
    • InfoGAN (2016)
      • Disentangled the latent factor
        • $z = (z_{\text{noise}}, z_{\text{latent}})$.
          • where
            • $z_{\text{noise}}$ : incompressible noise
              • Unstructured randomness that provides sample diversity
            • $z_{\text{latent}}$ : interpretable latent code
              • Semantically meaningful factors of variation we want to learn
              • e.g.) From Info GAN

  • High-Resolution Image Synthesis
    • Progressive GAN (2018)
      • Progressive Growing :
        • Stabilized generating high-resolution 1024×1024 photo realistic image
          • $(8\times8)\rightarrow(16\times16)\rightarrow\cdots\rightarrow(1024\times1024)$.

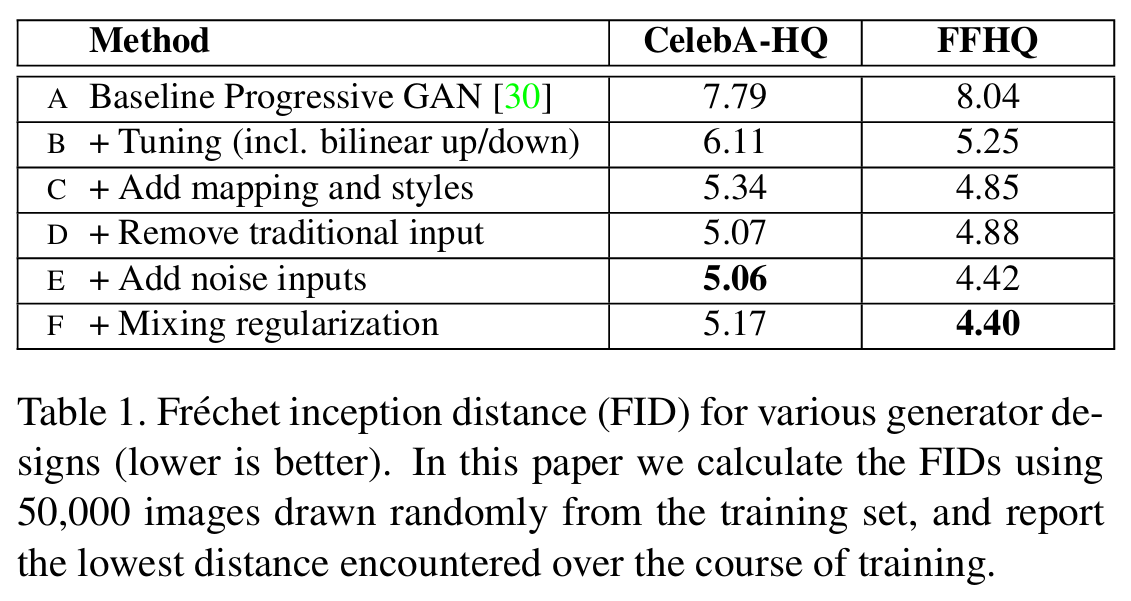

      • Introduced FID as a GAN performance score
      • From ProGAN to Style-GAN

• Style Transfer
  • AdaIN (2017)

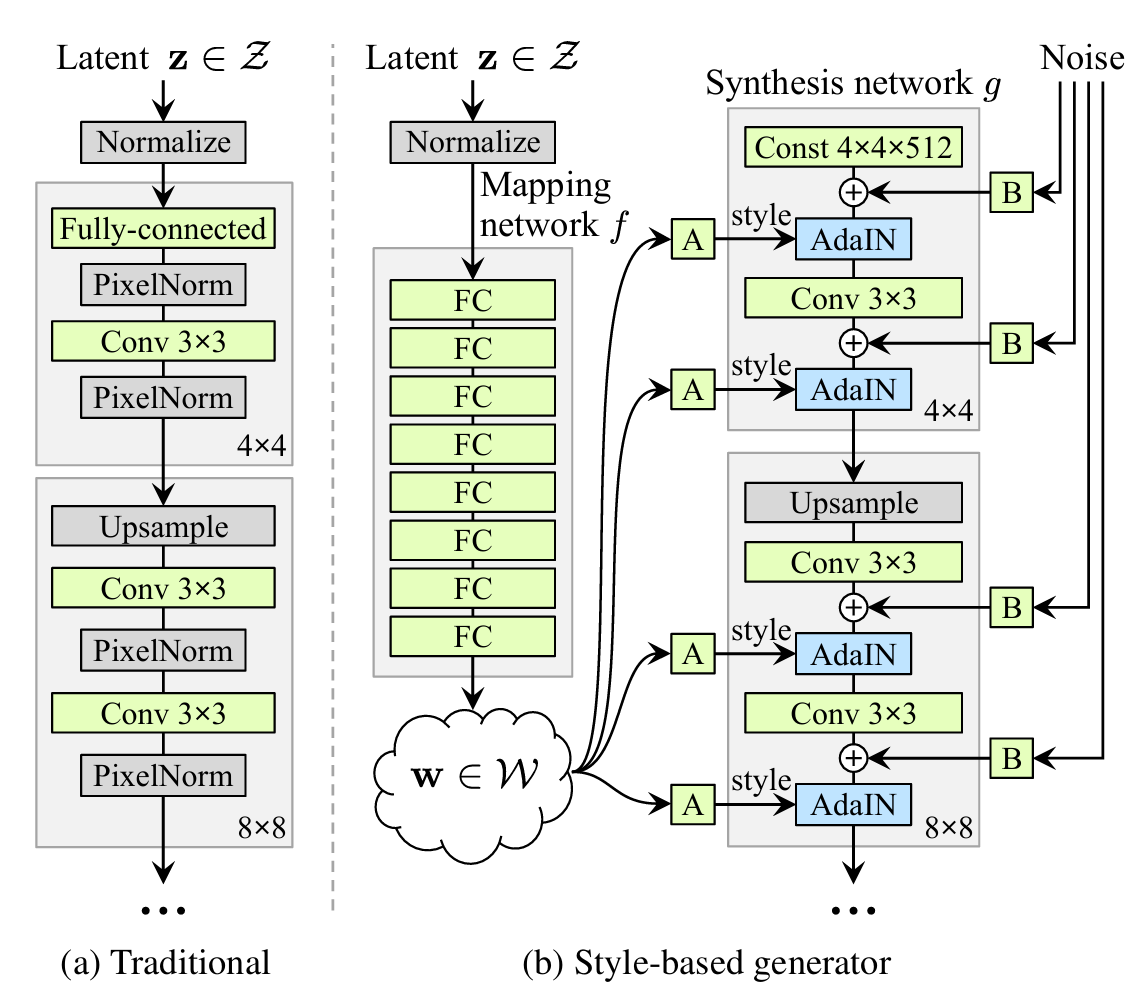

2. Style-based generator

• Model)
  • $\mathbf{z} \in \mathcal{Z}$ : a latent code
    • $\dim(\mathcal{Z}) = 512$.
  • $f$ : Mapping network
    • $f(\mathbf{z}) = \mathbf{w}$ :
      • where
        • $f:\mathcal{Z}\rightarrow\mathcal{W}$ : a non-linear mapping network
        • $f$ is implemented using 8-layer MLP
        • $\dim(\mathcal{W}) = 512$.
        • The truncation trick is performed at $\mathcal{W}$, not $\mathcal{Z}$
    • $A_{\ell}(\mathbf{w}) = { (\mathbf{y}{s,\ell, i}, \mathbf{y}{b,\ell, i}) }{i=1}^{C\ell}$ : a learned affine transformation inputted into the $\ell$-th AdaIN layer
      • where
        • $A_\ell : \mathcal{W} \rightarrow \mathcal{Y}_\ell$.
        • $(\mathbf{y}{s,\ell, i}, \mathbf{y}{b,\ell, i})$ : the styles
          • where
            • $\mathbf{y}_{s,\ell, i}$ : $\ell$-th layer and $i$-th channel’s scale parameter
            • $\mathbf{y}_{b,\ell, i}$ : $\ell$-th layer and $i$-th channel’s bias parameter
  • $g$ : Synthesis network
    • $\text{AdaIN}(\mathbf{x}i, \mathbf{y}) = \displaystyle\mathbf{y}{s,i}\,\frac{\mathbf{x}i - \mu(\mathbf{x}_i)}{\sigma(\mathbf{x}_i)} + \mathbf{y}{b,i}$ : Adaptive Instance Normalization
      • where
        • $\mathbf{x}_i$ : the $i$-th channel (feature map) of the activation $\mathbf{x}$
      • Desc.)
        • AdaIN is a concept from style transfer.
        • The normalization $\left(\displaystyle\frac{\mathbf{x}_i - \mu(\mathbf{x}_i)}{\sigma(\mathbf{x}_i)}\right)$ removes the original style, leaving only the content.
        • The scale $\mathbf{y}{s,i}$ and bias $\mathbf{y}{b,i}$ reintroduce a new style.
    • $B_\ell$ : the noise input to the $\ell$-th AdaIN layer
      • Desc.)
        • Single-channel images consisting of uncorrelated Gaussian noise
        • The noise image is broadcasted to all feature maps using learned per feature map (channel) scaling factors and then added to the output of the corresponding convolution
    • $\text{Const } 4\times4\times512$ : a learned constant tensor
      • Desc.)
        • In traditional GAN models, the latent code is the first input to the first convolution layer.
        • However, the authors figured out that when AdaIN operation is added, the network no longer benefitted from feeding the latent code into the first convolution layer.
        • Thus, the substituted the latent code with the $\text{Const } 4\times4\times512$.
        • This constant tensor is also optimized during training via backpropagation.

3. Properties of the style-based generator

Concept) Style Localization

• Desc.)
  • Style-GAN’s generator controls the image synthesis via scale-specific modifications to the styles.
    • How?)
      • The mapping network $f$ and the affine transformation $A$ draw samples for each style
      • The synthesis network $g$ generates a novel image based on a collection of styles.
  • The effect of each style is localized in the network
    • i.e.) Each style affects only one convolutional layer before being overridden by the next AdaIN
      • i.e.) the specific aspect of the image
    • Why?)
      • Recall the AdaIN operation of $\text{AdaIN}(\mathbf{x}i, \mathbf{y}) = \displaystyle\mathbf{y}{s,i}\,\frac{\mathbf{x}i - \mu(\mathbf{x}_i)}{\sigma(\mathbf{x}_i)} + \mathbf{y}{b,i}$.
      • It first normalizes each channel to zero mean and unit variance, and then applies scales and bias based on style $(\mathbf{y}{s,i}, \mathbf{y}{b,i})$.
      • Thus, each channel has new statistics dictated by the style $\mathbf{y}$.
        • cf.) These new statistics are independent of the original statistics of $\mathbf{x}_i$
          • Why?) Normalization!
      • Then, they modify the relative importance of features for the subsequent convolution operation.

3.1 Style Mixing

• Goal)
  • Regularization on styles
    • Encourage style localizations
    • Prevent the network from assuming that adjacent styles are correlated
• How?)
  • Utilize two latent codes $\mathbf{z_1,z_2}$.
  • Set a crossover point in the synthesis network $g$.
  • For AdaINs
    • before the crossover point, use $A(\mathbf{w}_1) = A(f(\mathbf{z}_1))$
    • after the crossover point, use $A(\mathbf{w}_2) = A(f(\mathbf{z}_2))$

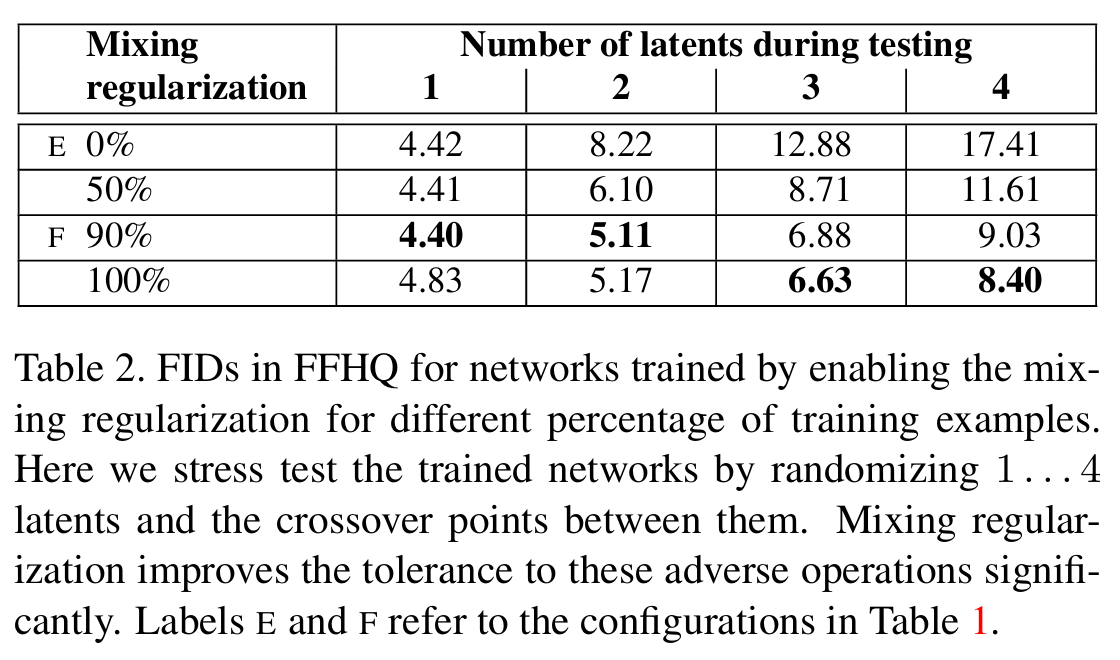

• Result)
  • Improved FID scores.

• Experiment)

  • Depending on the position of the crossover point we can transfer styles corresponding to

    Level	Portrait Example
    Coarse style ($4^2 - 8^2$)	high-level aspects such as pose, general hair style, face shape, eyeglasses
    Middle style ($16^2 - 32^2$)	smaller scale facial features, hair style, eye open/closed
    Fine style ($64^2 - 1024^2$)	color scheme and microstructure

3.2 Stochastic Variation

Concept) Noise (Stochasticity)

• Desc.)

• Analysis) Noise vs Style

  	Noise	Style
  Effect	only inconsequential stochastic variations	global effects
  e.g.	placement of hairs, stubble, freckles, etc	changing pose, identity, etc.
  Why?	the noise is added independently to each pixel	Complete feature maps are scaled and biased with the same values

• e.g.)
  • Video Demonstration (Noise)
    • Controlling the strength of the noise
      • $B$ injected in the high resolution level $\rightarrow$ Coarse noise
      • $B$ injected in the lowe resolution level $\rightarrow$ Fine noise

4. Disentanglement studies

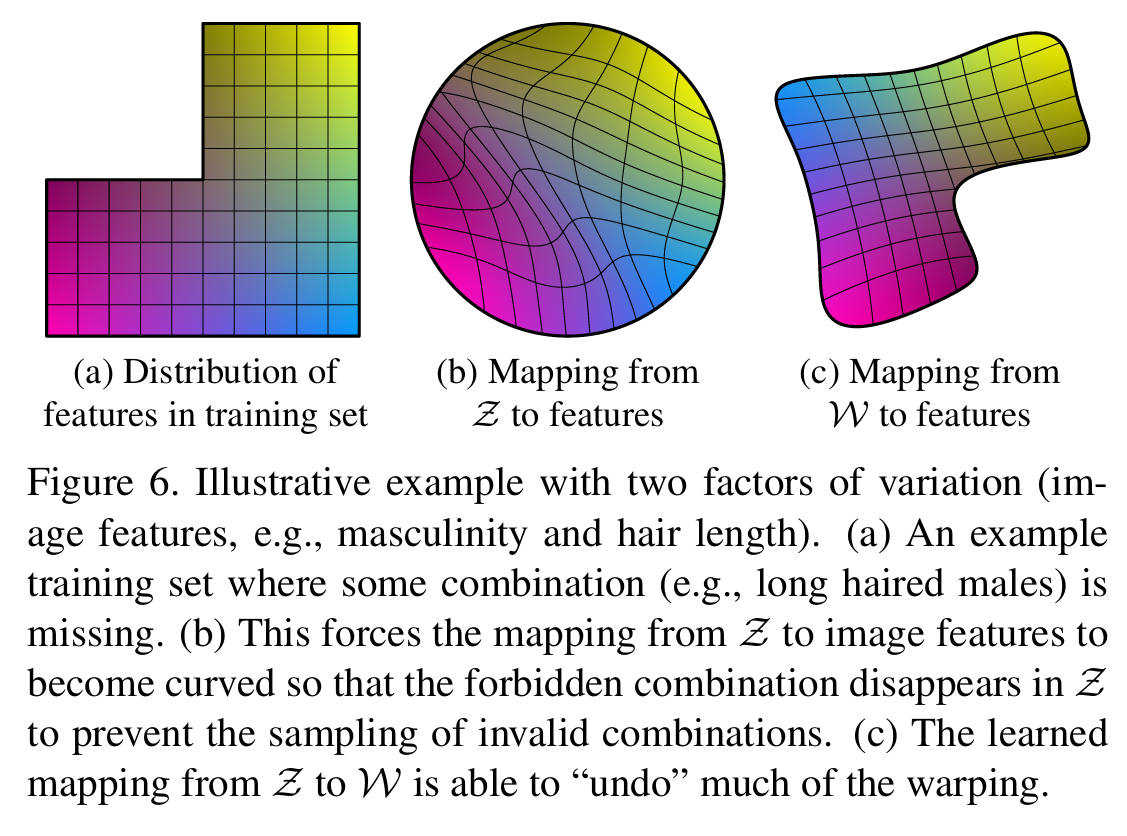

• e.g.)
  • Desc.)
    • Why features being curved in (b) matters?
      • If so, the generator learns warped mapping to avoid missing area in the training example.
      • Then the features get entangled, and we may not be able to control styles.
    • By mapping $f:\mathcal{Z}\rightarrow\mathcal{W}$, we undo the warping.
      • This disentangles the latent factors.
      • Style GAN can control individual styles independently.

4.1 Perceptual path length
