(Presentation PDF) High Resolution Image Synthesis with Latent Diffusion Models (Latent Diffusion)

Created on October 01, 2025

2025   ·   diffusion_model   latent_diffusion   ·   diffusion_model

Rombach et al. 2022

1. Introduction

Concept) Rate-Distortion Trade-Off

  • Concepts)
    • Rate
      • How many bits are used to represent data
        • i.e.) Compression efficiency
      • Lower rate = stronger compression
    • Distortion
      • How much information is lost compared to the original
      • Lower distortion = reconstruction is closer to the original
    • Trade-Off
      • High compression usually increase distortion
  • Desc.)
    • Relation with the Diffusion Models
      • In pixel space, diffusion models must handle all pixel-level details.
      • This includes high-frequency noise that is perceptually meaningless.
      • However, most bits in a digital image correspond to imperceptible details.
      • Thus, LDM tries
        • Perceptual Compression
          • Train an autoencoder to remove redundant high-frequency details while keeping perceptual equivalence
          • This reduces rates significantly.
        • Semantic Compression
          • Train the diffusion model in the latent space of the autoencoder

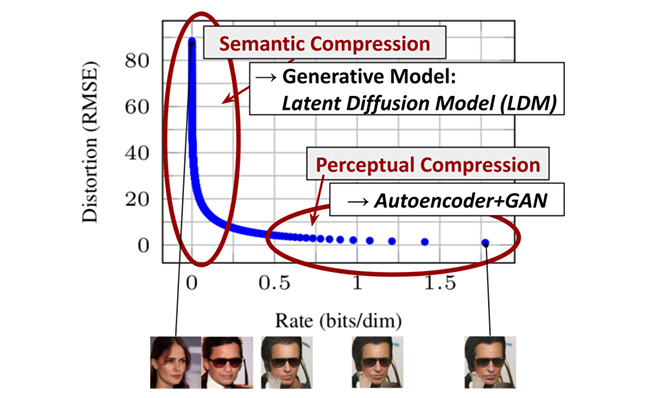

    • Comparison with other models
      • Desc.)
        • Autoencoder + GAN preserves nearly all pixel details.
        • LDM use
          • autoencoder for perceptual compression
          • diffusion in the latent space for semantic compression


Concept) Diffusion Probabilistic Models (DM)

  • Strength)
    • Achieved state-of-the-art results in
      • density estimation
        • Desc.)
          • Suppose we trained \(p_\theta(x)\approx p(x)\)..
          • Here, we use methods such as MLE or ELBO, which maximize the likelihood in the training dataset.
          • Then, evaluate \(\log p_\theta(x')\)., which is the average test log-likelihood, where \(x'\). is the test dataset.
          • Compare it with other models to have greater values.
      • sample quality
        • e.g.) IS, FiD scores
    • The generative power of these models stems from a natural fit to the inductive biases of image-like data
      • when implemented with UNet
      • when a reweighted objective is used for training.
        • cf.) reweighted objective
          • Recall that DDPM used \(t\sim\text{Uniform}[1,T]\)..
          • Instead, Improved DDPM used different step schedule to decrease noise in loss.
            • \(t\sim p_t,\quad p_t = \sqrt{\mathbb{E}[L_t^2]}\).
  • Weakness)
    • Low inference speed
      • Mitigated with
        • advanced sampling strategies
        • hierarchical approaches
        • LDM!
    • High training cost
      • Mitigated with
        • LDM!



3. Method

  • Goal)
    • Circumvent DM’s costly function evaluations in the pixel space.
  • How?)
    • Utilize an autoencoding model that learns a space that is…
      • perceptually equivalent to the image space
      • but offers significantly reduced computational complexity
    • This explicitly separate the compressive from the generative learning phase.
  • Advantage)
    • DMs become more computationally efficient
      • Why?)
        • Sampling is performed on a low-dimensional space
    • Capable of exploiting the inductive bias of DMs
      • cf.) Previous approaches needed aggressive, quality-reducing compression levels
        • e.g.) Zeroshot T2I using VQ-VAE/VQGAN
    • Obtains general-purpose compression models…
      • whose latent space can be used to train multiple generative models
      • which can also be utilized for other downstream applications such as single-image CLIP-guided synthesis


3.1 Perceptual Image Compression

Concept) Perceptual Compression Model

  • Model)
    • \(x\in\mathbb{R}^{H\times W\times3}\). : an image data in RGB space
    • \(\mathcal{E} : \mathbb{R}^{H\times W\times3}\rightarrow\mathbb{R}^{h\times w\times3}\). : the encoder
      • \(f = H/h = W/w\). : a factor that \(\mathcal{E}\). downsamples by
        • where \(f = 2^m,\quad m\in\mathbb{N}\).
      • \(z = \mathcal{E}(x)\in\mathbb{R}^{h\times w\times3}\). : a latent variable
    • \(\mathcal{D}: \mathbb{R}^{h\times w\times3}\rightarrow\mathbb{R}^{H\times W\times3}\). : the decoder
      • \(\tilde{x} = \mathcal{D}(z) = \mathcal{D}(\mathcal{E}(x)) \in\mathbb{R}^{H\times W\times3}\).
    • Regularization
      • KL-reg
        • What it does)
          • Imposes a slight KL-penalty towards a standard normal on the learned latent
        • cf.) VAE
      • VQ-reg
        • What it does)
          • Uses a vector quantization layer within the decoder
        • cf.) VQGAN
  • Prop.)
    • Relative mild compression rate suffices achieving sound reconstruction.
      • Wny?)
        • The subsequent DM is designed to work with the two-dimensional structure of our learned latent space \(z=\mathcal{E}(x)\).
    • Compared to the pixel space s.t. \(x\in\mathcal{X}\). the latent space \(z\in\mathcal{Z}\)….
      • is low-dimensional
      • abstracted away high-frequency and imperceptible details

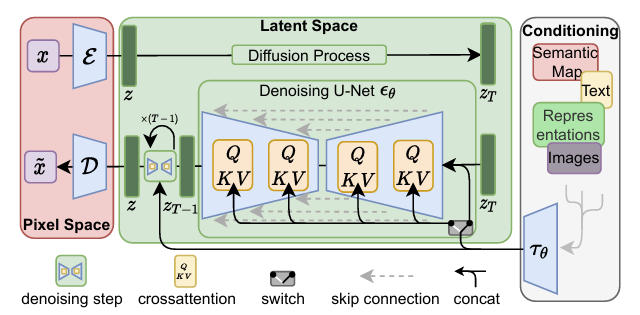

3.2 Latent Diffusion Models

  • Objective Function
    • \(L_{LDM} = \mathbb{E}_{\mathcal{E}(x), \epsilon\sim\mathcal{N}(0,1), t} \left[ \Vert \epsilon - \epsilon_\theta(z_t, t) \Vert_2^2 \right]\).
      • where
        • \(t\sim\text{Uniform}(1,T)\).
        • \(\epsilon_\theta(\cdot, t)\). : a time-conditional UNet
    • Input)
      • \(z\). : the latent variable from the perceptual compression model’s encoder \(\mathcal{E}\)..
        • Advantage)
          • DM can…
            • focus on important, semantic bits of the data
            • train in a lower dimensional, computationally more efficient space
    • Output)


3.3 Conditioning Mechanisms

  • Goal)
    • Modeling conditional distribution of the form \(p(z\mid y)\).
  • Idea)
    • Augment DM’s UNet backbone with the cross-attention mechanism
  • Model)
    • \(\epsilon_\theta(z_t, t, \tau_\theta(y))\). : the conditional denoising autoencoder
      • where
        • \(\tau_\theta: \mathcal{Y}\rightarrow\mathbb{R}^{M\times d_\tau}\). : a domain specific encoder that projects the label \(y\). to an intermediate presentation.
          • \(\tau_\theta(y)\). is mapped to the intermediate layers of the UNet via a cross-attention layer \(\text{Attention}(Q,K,V)\).
    • \(\text{Attention}^{(i)}\left(Q^{(i)},K^{(i)},V^{(i)}\right) = \displaystyle \text{Softmax}\left(\frac{Q^{(i)}{K^{(i)}}^\top}{\sqrt{d}}\right)\cdot V^{(i)}\). : the cross-attention layer
      • where
        • \(Q^{(i)} = W_Q^{(i)} \cdot \varphi_i (z_t)\).
          • where
            • \(\varphi_i (z_t)\in\mathbb{R}^{N\times {d_\epsilon}^i}\). : a flattened intermediate representation of the UNet implementing \(\epsilon_\theta\).
            • \(W_Q^{(i)}\in\mathbb{R}^{d\times d_\tau}\).
        • \(K^{(i)} = W_K^{(i)} \cdot \tau_\theta(y)\).
          • where
            • \(W_K^{(i)}\in\mathbb{R}^{d\times d_\tau}\).
        • \(V^{(i)} = W_V^{(i)} \cdot \tau_\theta(y)\).
          • where
            • \(W_V^{(i)}\in\mathbb{R}^{d\times {d_\epsilon}^i}\).
      • Props.)
        • \(\left[ Q^{(i)}{K^{(i)}}^\top \right]_{(k,l)}\). : the similarity between the \(k\).-th query from the latent spatial position and the \(l\).-th key from the label embedding.
  • Loss Function)
    • \(L_{LDM} = \mathbb{E}_{\mathcal{E}(x), y, \epsilon\sim\mathcal{N}(0,1), t} \Bigg[ \Big\Vert \epsilon - \epsilon_\theta(z_t, t, \tau_\theta(y)) \Big\Vert_2^2 \Bigg]\).
    • Props.)
      • \(\tau_\theta\). and \(\epsilon_\theta\). can be jointly optimized
      • \(\tau_\theta\). can be parameterized with domain-specific experts
        • e.g.) (unmasked) transformer if \(y\). is a text prompt.
  • Props)
    • Weakness)
      • Does not support
        • conditioning beyond class-labels
        • training with blurred variants of the input image



4. Experiments

4.1 On Perceptual Compression Tradeoffs

  • Goal)
    • Compare LDM-\(f\).s with different downsampling factors \(f\in\{1,2,4,8,16,32\}\).
      • cf.) LDM-1 corresponds to pixel-based DMs.

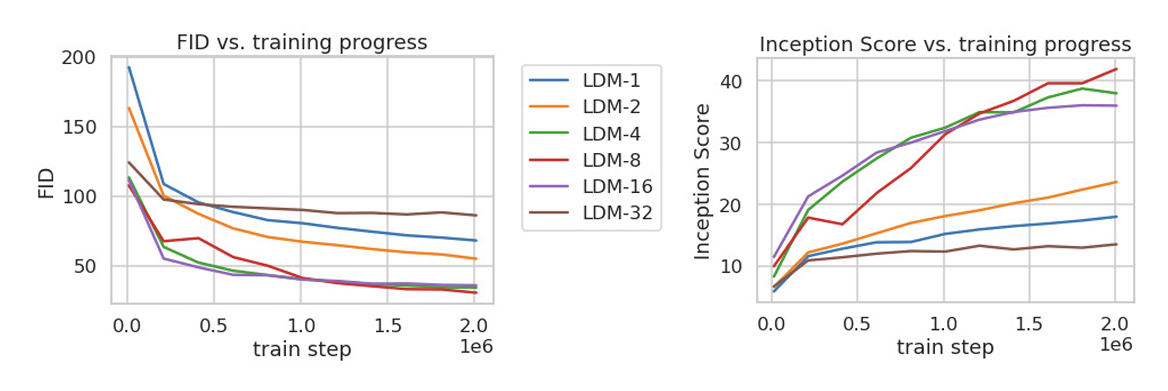

Experiment 1) Factor and Quality

  • Desc.)
    • Compare the FID and the IS score of various factor models.
  • Result)
    • LDM-\(\{4-16\}\). strike good balance between efficiency and perceptually faithful results.
    • LDMs with small \(f\). values \(\{1,2\}\). slow in training progress
    • LDMs with large \(f\). values \(\{32\}\). illustrate stagnating fidelity after comparably few training steps.

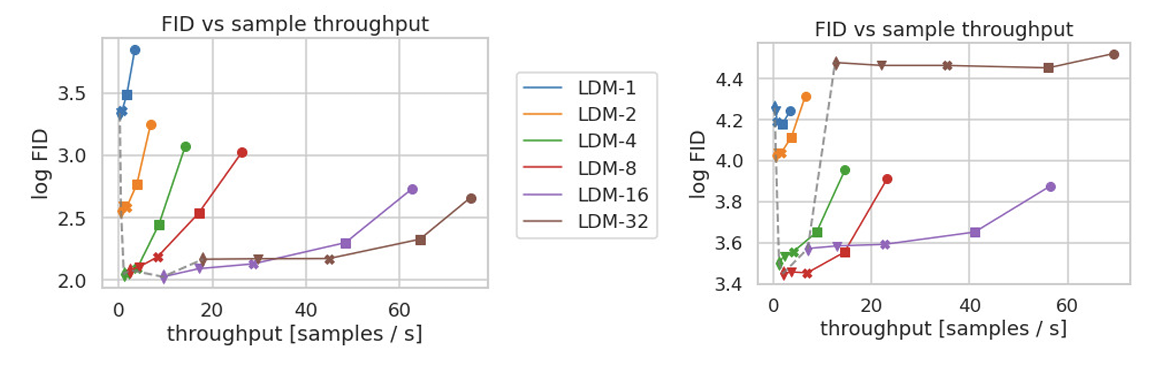

Experiment 1) Factor and Quality

  • Desc.)
    • Use DDIM sampler to measure the sampling speed for different numbers of denoising steps
    • Horizontal Axis : Throughput
      • How many samples generated per second.
    • Each point denotes the step size in DDIM : \(\{10,20,50,100,200\}\).
      • Prop.)
        • More the step size is
          • Better quality (low FID score)
          • Slower sampling speed (low throughput)
        • Thus, in each line (LDM-\(f\).), leftmost point has the largest step size of 200.
        • And, moving rightward, the step size decreases.
  • Result)
    • LDM-\(\{4-8\}\). outperform others.
      • The lowest FID scores
      • Significant throughput increase.

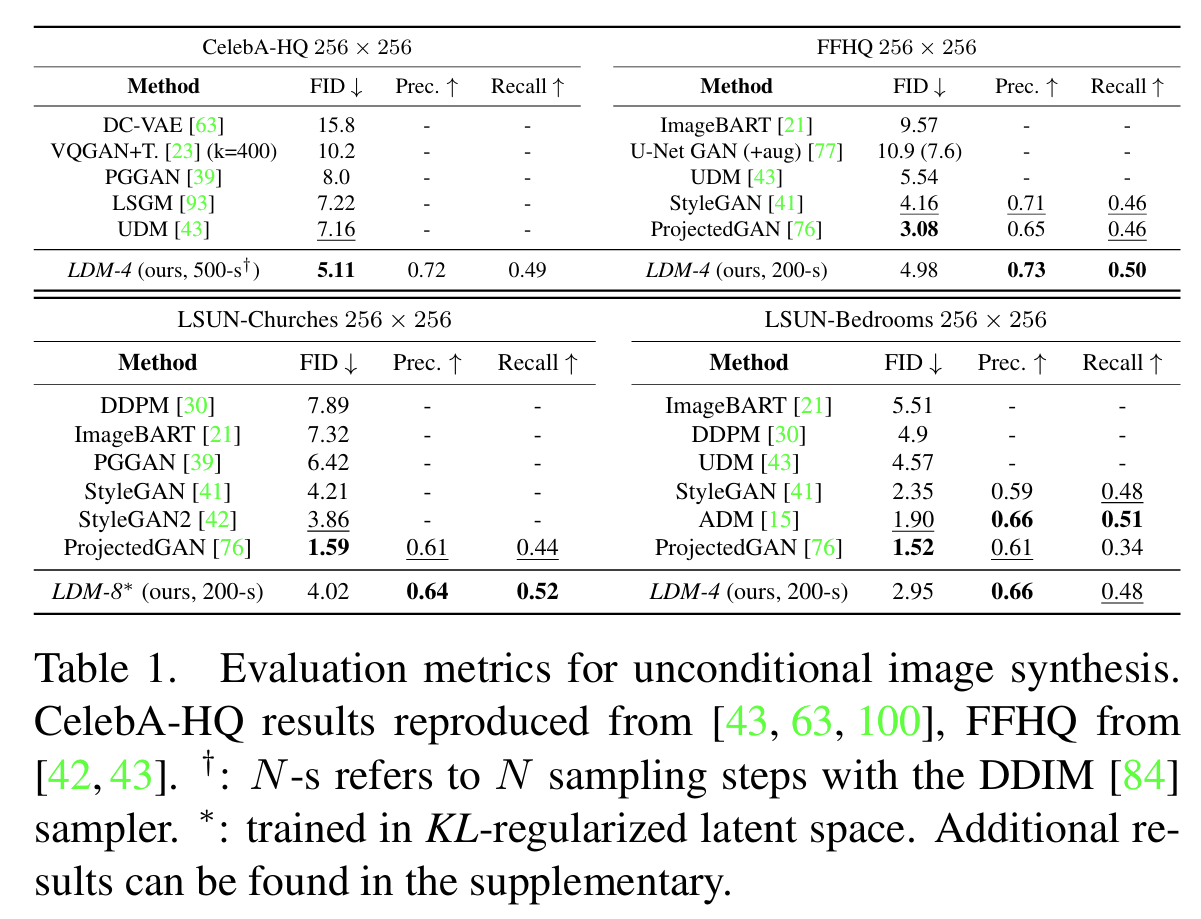

4.2 Image Generation with Latent Diffusion

  • Dataset)
    • CelebA-HQ, FFHQ, LSUN-Churches, and LSUN-Bedrooms
  • Evaluation)
    • Sample quality
    • Coverage of the data manifolding
  • Scores)
    • FID
    • Precision and Recall
  • Result)


4.3 Conditional Latent Diffusion

4.3.1 Transformer Encoders for LDMs

  • Text-to-image Modeling)
    • Implementation)
      • KL-regularized LDM conditioned on language prompts on LAION-400M
      • BERT-Tokenizer for \(\tau_\theta\).
    • Dataset)
      • MS-COCO for the text-to-image generation
      • OpenImages for training the model to synthesize images based on semantic layouts
  • Class-Conditional Evaluation)
    • Dataset)
      • ImageNet


4.3.2 Convolutional Sampling Beyond 256^2

  • Desc.)
    • LDM can serve as efficient general purpose image-to-image translation model.

Experiment) Semantic Synthesis

  • How?)
    • Get images of landscapes paired with semantic maps.
    • Concatenate downsampled versions of the semantic maps with the latent image representation of a \(f=4\). model with VQ-reg.
    • Train on an input resolution of \(256^2\).
  • Result)
    • The model generalizes to larger resolutions upto megapixel regime \((\ge 1024^2)\). when evaluated in a convolutional manner.

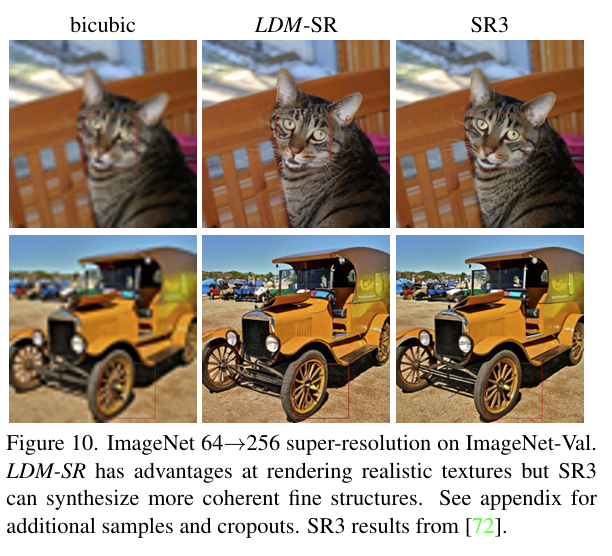

4.4 Super-Resolution with Latent Diffusion

  • How?)
    • Directly condition on low-resolution images via concatenation
    • Follow SR3
      • Fix the image degradation to a bicubic interpolation with \(4\times\). downsampling.
      • Train on ImageNet following SR3’s data processing pipeline.
  • Result)
    • Compared with the SR3 model


4.5 Inpainting with Latent Diffusion

  • Result)



5. Limitations & Societal Impact

Limitations

  • Sequential sampling process is slower than that of GANs
    • cf.) Recall the denoising process!
    • DDIM is still slower than GANs
  • Questionable when high precision is required
    • i.e.) hard to generate image that we want. (semantic precision)
    • LDM’s reconstruction capability can become a bottleneck for tasks that require fine-grained accuracy in pixel space.
      • i.e.) Some information is innately incapable of recovering from the latent space.
