NICE - Non-Linear Independent Components Estimation

Hozy Summary

• NF models require simple Jacobian computation.
• Previous methods has limited expressiveness
  • e.g.)
    • Affine Transformation : Model’s structure itself is too simple
    • Triangular Matrices (\(M=LU\).) : Design choice is limited
• Solution
  • Authors suggest a way of forming a single layer with…
    • Coupling Layer
      • This is one way of achieving the triangular matrices (lower matrix).
      • Jacobian determinant is always 1.
      • Great flexibility in design choice : \(m\).
        • e.g.) \(m\). can be set as a neural network.
    • Rescaling
      • Above coupling layer’s fixed Jacobian determinant of 1 means the model cannot contract the data.
        • cf.) Refer to the explanation below for the contraction issue.
      • Thus, we may utilize additional top layer \(S\). that contracts certain dimensions.

---

2 Learning Bijective Transformations of Continuous Probabilities

• Settings)
  • \(\mathcal{D}\). : a finite dataset of…
    • \(N\). samples
    • in space \(\mathcal{X}\).
      • i.e.) \(\mathcal{D} \subseteq \mathbb{R}^D\).
  • \(\{p_\theta, \theta\in \Theta\}\). : a parametric family of densities
  • \(h=f(x)\). : a transformation
    • where
      • \(f:\mathcal{D}\rightarrow\mathbb{R}^D\).
        • i.e. \(x\in\mathcal{D}, h\in\mathbb{R}^D\).
• Goal)
  • Ask learner (NN) to find a transformation \(f\).

Concept) Change of Variables

• Desc.)
  • Recall that the Normalizing Flow models transform the data \(x\). to the easy-to-handle latent \(h\). through transformation.
    • e.g.) \(h = f(x)\). where \(h\sim\mathcal{N}(0,\mathbf{I})\).
  • Since the transformation \(f:\mathcal{D}\rightarrow\mathbb{R}^D\). is a vector field, we need to verify the probability distribution of \(h\). using the change of variables rule.
• Settings)
  • Put \(h = (h_1, h_2, \ldots, h_D) \in\mathbb{R}^D\).
  • \(p_H(h)\). : the prior distribution
    • e.g.) standard isotropic Gaussian
    • cf.) Choice of the prior is explained in more detail below.
  • \(p_H(h) = \displaystyle\prod_{d=1}^D p_{H_d}(h_d)\).
    • i.e.) Each element of \(h\). are independent.
  • Choose $f$$. s.t.
    • invertible
    • \(f^{-1}\). is trivially obtained
    • \(\text{det}\frac{\partial f(x)}{\partial x}\). is trivially obtained.
• Probability Distribution
  • \(\displaystyle p_X(x) = p_H(f(x))\left\vert \text{det}\frac{\partial f(x)}{\partial x} \right\vert\).
    • where \(\frac{\partial f(x)}{\partial x}\). is the Jacobian matrix of \(f\). at \(x\).
      • i.e.) \(\displaystyle \frac{\partial f(x)}{\partial x} = \begin{bmatrix} \frac{\partial f_1(x)}{\partial x_1} & \frac{\partial f_1(x)}{\partial x_2} & \cdots & \frac{\partial f_1(x)}{\partial x_D} \\ \vdots & \vdots & \ddots & \vdots \\ \frac{\partial f_D(x)}{\partial x_1} & \frac{\partial f_D(x)}{\partial x_2} & \cdots & \frac{\partial f_D(x)}{\partial x_D} \\ \end{bmatrix}\).

Tech.) Learning a continuous, differentiable almost everywhere non-linear transformation

• Formula
  • \(\log(p_X(x)) = \log(p_H(f(x))) + \log\left(\left\vert\text{det}\frac{\partial f(x)}{\partial x}\right\vert\right)\).
    • where
      • \(p_H(h)\). : the prior distribution
        • e.g.) standard isotropic Gaussian
• Factorial Prior Case
  • Notation)
    • \(f(x) = (f_1(x), f_2(x), \ldots, f_D(x)) = (f_d(x))_{d\le D}\).
  • Non-Linear Independent Components Estimation (NICE) criterion
    • \(\log(p_X(x)) = \displaystyle\sum_{d=1}^D \log(p_{H_d}(f_d(x))) + \log\left(\left\vert\text{det}\frac{\partial f(x)}{\partial x}\right\vert\right)\).
• Props.)
  • The determinant of Jacobian terms suppress the increase in likelihood due to the transformation.
    • Desc.)

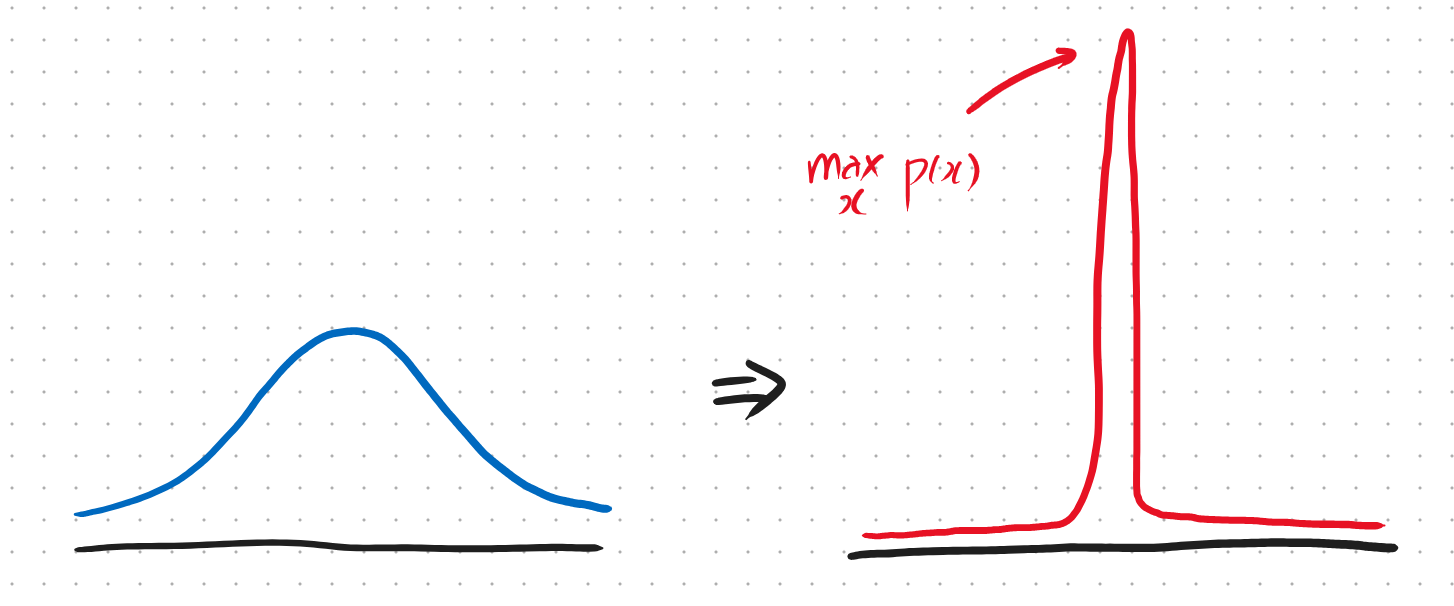

      • The transformation \((f(x) = (f_d(x))_{d\le D})\). contracts the data and increases the likelihood arbitrarily.
        • Why)
          • The destination is the simple Gaussian of \(p_H(h_D)\)..
          • Thus, all data will be concentrated in that simple distribution.
          • Increased Data distribution Density \(\Rightarrow\). Increased Probability Density

      • However, the \(\left\vert\text{det}\frac{\partial f(x)}{\partial x}\right\vert\). term counteracts the above by expanding regions of high density (i.e. data points!).
        • How?)
          • Recall that \(\vert\text{det}(\cdot)\vert\). calculates the hyper volume.
          • Also, Jacobian’s \((i,j)\).-th element is the partial differentiation.
            • \(\frac{\partial f(x_i)}{\partial x_j} \gt 1 \Leftrightarrow f(x_i)\text{ is expanding in the }x_j\text{ dim.}\).
            • \(\frac{\partial f(x_i)}{\partial x_j} \lt 1 \Leftrightarrow f(x_i)\text{ is contracting in the }x_j\text{ dim.}\).
          • Thus, if \(f(x) = (f_d(x))_{d\le D}\). contracts the data, \(\left\vert\text{det}\frac{\partial f(x)}{\partial x}\right\vert\). will approach 0.
          • Hence, \(\log\left\vert\text{det}\frac{\partial f(x)}{\partial x}\right\vert\). is negative, penalizing the increase in \(\displaystyle\sum_{d=1}^D \log(p_{H_d}(f_d(x)))\).!

Concept) Autoencoder Framework

• \(f\). : encoder
• \(f^{-1}\). : decoder
• Ancestral Sampling : \(H\rightarrow X\).

3 Architecture

3.1 Triangular Structure

• Assumption)
  • We want to apply the NF of \(f = f_L\circ\cdots\circ f_1\). to better represent the data.
    • cf.)
      • Here, \(L\). denotes the number of layers.
      • \(D\). is the dimension in a single layer.
      • Thus, \(f_l : \mathbb{R}^D\rightarrow\mathbb{R}^D, \quad l=1,\ldots,L\).
  • Two critical conditions for choosing \(f\).
    • Computation is straightforward both forward(\(f\).) and backward(\(f^{-1}\).)
    • Tractability of Jacobian determinant
      • Why?) \(\ln q_L(\mathbf{z}_L) = \ln q_{0}(\mathbf{z}_{0}) + \sum_{l=1}^L \ln \left\vert\text{det}\frac{\partial f_l}{\partial \mathbf{z}_{l-1}}\right\vert\).
        • cf.) Refer to Rezende et al. for more details
        • cf.) The \(\ln \text{det}\). terms are added because we start from the data \(x\). to the latent \(z_L\)..
          • Rezende et al. starts from latent to data, so the \(\ln \text{det}\). terms are subtracted!
  • Previous Methods
    • Affine Transformation
      • Limit) The structure is so simple that the expressiveness of the model is limited.
    • Triangular Matrices
      • i.e.) \(M=LU\). where \(L\). is the lower, \(U\). is the upper triangular matrix.
      • Limit)
        • Limited design choices
        • Computationally efficient, but only represents linear transformations if \(M\). is a simple weight matrix.
• Goal)
  • Obtain a family of bijections…
    • whose Jacobian determinant is tractable (lower triangular)
    • whose computation is straightforward both forward(\(f\).) and backward(\(f^{-1}\).)
      • where \(f=f_L\circ\cdots\circ f_1\).
  • Most of all, rich expressiveness of the model!
• Suggestion)
  • Coupling Layer
    • Advantage)
      • Jacobian determinant is always 1!
        • This has the problem of incapability of contracting the data.
        • Authors resolve this issue using the rescaling \(S_{ii}\).
      • Choice of \(m\). is flexible!
        • We may utilize the expressiveness of the neural network here!

3.2 Coupling Layer

Concept) General Coupling Layer

• Def.)
  • Let
    • \(x\in\mathcal{X}\).
    • \(I_1, I_2\). : the partitions of \([1, D]\). s.t.
      • \(d=\vert I_1 \vert\).
      • \(m : \mathbb{R}^d\rightarrow\mathbb{R}^d\). : the coupling function
  • Then, we may define \(y=(y_{I_1}, y_{I_2})\). as
    • \(y_{I_1} = x_{I_1}\).
    • \(y_{I_2} = g(x_{I_2};\;m(x_{I_1}))\).
      • where
        • \(g:\mathbb{R}^{D-d}\times m(\mathbb{R^d}) \rightarrow\mathbb{R}^{D-d}\). : the coupling law
      • Prop.)
        • Invertible map w.r.t. \(\mathbb{R}^{D-d}\). given \(m(\mathbb{R^d})\).
  • We may get the Jacobian as…
    • Put
      • \(I_1=[1,d]\).
      • \(I_2=[d+1,D]\).
    • Then, we may get the Jacobian by
      \(\begin{aligned} \text{det} \left(\frac{\partial y}{\partial x}\right) &= \text{det} \begin{bmatrix} \mathbf{I}_d & 0 \\ \frac{\partial y_{I_2}}{\partial x_{I_1}} & \frac{\partial y_{I_2}}{\partial x_{I_2}} \end{bmatrix} & \text{where } \mathbf{I}_d\in\mathbb{R}^d \text{ is the Identity Matrix} \\ &= \text{det} \left(\frac{\partial y_{I_2}}{\partial x_{I_2}}\right) \end{aligned}\).
  • Then, the inverse mapping goes
    • \(x_{I_1} = y_{I_1}\).
    • \(x_{I_2} = g^{-1}(y_{I_2};\;m(y_{I_1}))\).
• e.g.)
  • Additive Coupling Layer
  • Multiplicative Coupling Layer
    • \(g(a;b) = a\odot b, \;b\ne0\).
  • Affine Coupling Layer
    • \(g(a;b) = a\odot b_1 + b_2, \;b\ne0\).
  • Combining Coupling Layers
    • At least three coupling layers are necessary to allow all dimensions to influence one another
    • Authors used 4
• Problem)
  • The Jacobian determinant is always 1.
    • Why?)
      • Consider the Additive Coupling Layer below.
        • \(\displaystyle\frac{\partial y_{I_2}}{\partial x_{I_2}} = I_{D-d}\).
  • Recall that the NF model’s capability was contracting the data into the easy-to-handle distributed latent variable.
  • However, Jacobian determinant of 1 means the model cannot contract the data into the intended way.
  • Authors resolve this issue with rescaling.

Concept) Additive Coupling Layer

• Desc.)
  • Simple implementation of General Coupling Layer using the additive coupling law of
    • \(g(a;\;b) = a+b\).
  • Then the mapping goes
    • \(y_{I_2} = x_{I_2} + m(x_{I_1})\).
    • \(x_{I_2} = y_{I_2} - m(y_{I_1})\).
• Prop.)
  • Only as expensive as computing the transformation itself.
  • No restriction on choosing \(m\).
    • e.g.) a neural network with \(d\). input and \(D-d\). output
      • i.e.) \(y_{I_2} = x_{I_2} + \text{act}(y_{I_1}\mathbf{W} + \mathbf{b})\). where \(\text{act}\). is an activation function such as GeLU.
  • Unit Jacobian determinant
    • Why?) \(\displaystyle\frac{\partial y_{I_2}}{\partial x_{I_2}} = I_{D-d}\).

3.3 Allowing Rescaling

• Goal)
  • Recall Coupling Layer’s incapability of contracting the data.
  • We want to artificially achieve this with the rescaling.
• How?)
  • Let \(S\). be a diagonal matrix added at the top layer s.t.
    • cf.) \(S=[S_{ii}]_{i\le D}\). is a learnable parameter!
  • Then \(S_{ii}\). will be multiplied to the \(i\).-th dimension.
    • i.e.) \((x_i)_{i\le D} \rightarrow (S_{ii}x_i)_{i\le D}\).
  • Thus, the NICE criterion can be rewritten as
    • \(\log(p_X(x)) = \displaystyle\sum_{i=1}^D \left[ \log(p_{H_i}(f_i(x))) + \log\left\vert S_{ii} \right\vert \right]\).
• Prop.)
  • Larger the \(S_{ii}\). is, the less important the dimension \(i\). is.
  • The prior term encourages \(S_{ii}\). to be small, while the determinant term \(\log S_{ii}\). prevents \(S_{ii}\). from ever reaching 0.

3.4 Prior Distribution

• Desc.)
  • Recall that we choose the prior to be factorial as…
    • \(p_H(h) = \prod_{i=1}^D p_{H_d}(h_d)\).
  • General choice
    • Gaussian
      • \(\log(p_{H_d}) = -\frac{1}{2}(h_d^2 + \log(2\pi))\).
    • Logistic Distribution
      • \(\log(p_{H_d}) = -\log(1+\exp(h_d)) - \log(1+\exp(-h_d))\).

4 Optimization (NEEDS VERIFICATION)

• MLE maximization problem
  • \(\displaystyle\arg\max_{S, m, \theta} \log(p_X(x)) = \displaystyle\sum_{i=1}^D \bigg[ \log(p_{H_i}(f_i(x))) + \log\left\vert S_{ii} \right\vert \bigg]\).
