(DM Reconst.) [WIP] Ch.10 Distillation-Based Methods for Fast Sampling

Diffusion Model Conceptual Reconstruction following The Principles of Diffusion Models

---

Hozy Summary

---

Concept) Distillation

• Problem)
  • Diffusion model’s trade-off between quality and efficiency.
    • DDPM’s \(\mathbf{x}\)-prediction perspective.
      • We use \(\mathbf{x}_{\phi^\times}(\mathbf{x}_t, t)\approx\mathbb{E}[\mathbf{x}_0\mid\mathbf{x}_t]\) for one-step generation, where this denoiser averages over many plausible outcomes.
      • Thus, few denoising steps leads overly smooth prediction and the blurry, low quality samples.
    • ODE/SDE Trajectory Perspective)
      • Reducing the NFE speeds up the generation but reduces the fidelity.
        • Why?)
          • Each solver step introduces an integration error of order \(\mathcal{O}(h^n)\)
            • where
              • \(h=\max_i\left\vert t_i-t_{i-1}\right\vert\) : the maximum step size
              • \(n\) : the solver order.
          • Thus, \((\text{Fewer Steps})\Rightarrow h\uparrow \Rightarrow \mathcal{O}(h^n) \uparrow\)
• Idea)
  • Accelerate diffusion model sampling by teaching new generators to produce samples in only one or a few steps.
    • How?)
      • Teacher Sampler : Slow, pre-trained diffusion model
      • Student model : Learn from the teacher sampler
• Paradigms)
  • Distribution Level Distillation
  • Flow Map Level Distillation

Concept) Distribution Level Distillation

• Model)
  • Given
    • \(p_{\text{prior}}, p_{\text{data}}\) : a prior noise distribution and the data distribution
  • We want to train a one-step generator \(G_\theta(\mathbf{z})\)
    • where
      • \(\mathbf{z}\sim p_{\text{prior}}\) : a noisy latent
    • by optimizing as
      • \(\min_{\theta} \mathcal{D}\left(p_\theta(\hat{\mathbf{x}}), p_{\text{data}}(\hat{\mathbf{x}})\right)\).
        • where
          • \(\hat{\mathbf{x}} = G_\theta(\mathbf{z})\) : a sample from \(G_\theta(\mathbf{z})\)
          • \(\mathcal{D}\) denotes a suitable divergence measurement such as KL.
  • In practice, we align the generator’s distribution with the empirical distrbution \(p_{\phi^\times}(\mathbf{x})\)
    • i.e.) \(\min_{\theta} \mathcal{D}\left(p_\theta(\hat{\mathbf{x}}), p_{\phi^\times}(\hat{\mathbf{x}})\right)\)
• Approaches)
  • Distributional Matching Distillation (DMD) (Yin et al. 2024)
  • Variational Score Distillation (VSD)
  • Score Identity Distillation (SiD)

Concept) Flow Map Level Distillation

• Model)

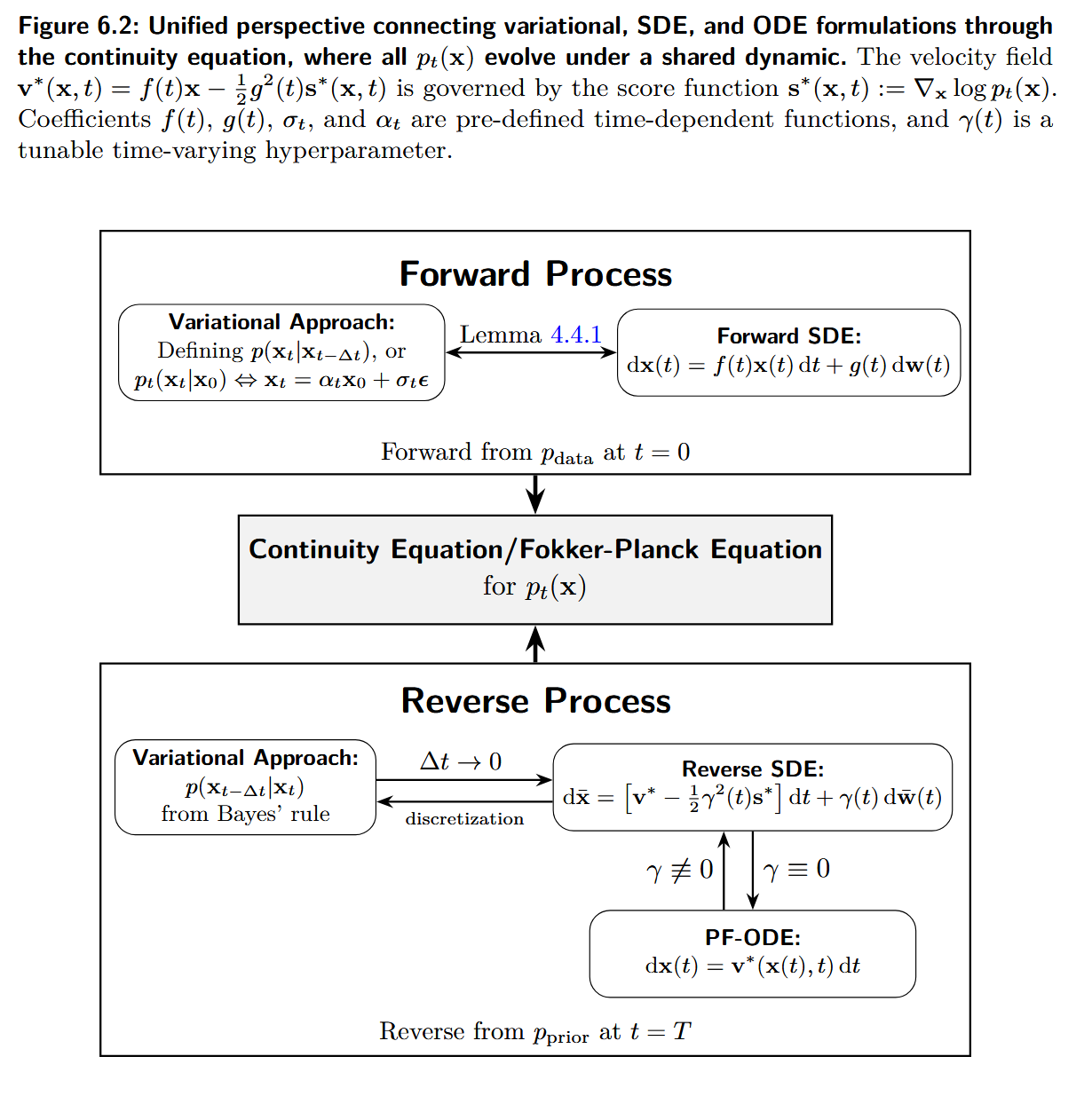

  • Consider the PF-ODE of
    • \(\displaystyle\frac{\text{d}\mathbf{x}(\tau)}{\text{d}\tau} = f(\tau)\mathbf{x}(\tau) - \frac{1}{2}g^2(\tau)\nabla_{\mathbf{x}} \log p_\tau(\mathbf{x}(\tau))=: \mathbf{v}^*(\mathbf{x}(\tau), \tau)\).
  • Its solution map is denoted as
    • \(\displaystyle \Psi_{s\rightarrow t}(\mathbf{x}_s) := \mathbf{x}_s + \int_s^t v^*(\mathbf{x}(\tau), \tau)\text{d}\tau\).
      • where
        • \(t\le s\).
        • \(\mathbf{x}_T\sim p_{\text{prior}}, \mathbf{x}_0\sim p_{\text{data}}\).
  • We want to learn a map \(\Psi_{T\rightarrow0}(\mathbf{x}_T)\) that enables the one-step generation.
  • However, the PF-ODE rarely admits a closed form. Thus, we approximate it numerically during training, and denote it as the general solver of
    • \(\text{Solver}_{s\rightarrow t}(\mathbf{x}_s;\;\phi^\times)\) or simply \(\text{Solver}_{s\rightarrow t}(\mathbf{x}_s)\)
      • i.e.) the numerical integration from \(s\) to \(t\) starting at \(\mathbf{x}_s\), with teacher parameters \(\phi^\times\)
  • The loss can be denoted as
    • \(\mathcal{L}_{\text{oracle}}(\theta) := \mathbb{E}_{s,t}\mathbb{E}_{\mathbf{x}_s\sim p_s}\left[ w(s, t) \; d(G_\theta(\mathbf{x}_s, s, t), \Psi_{s\rightarrow t}(\mathbf{x}_s)) \right]\).
      • where
        • \(w(s, t)\) : the weight on the time pairs \((s,t)\)
        • \(d(\cdot,\;\cdot)\): : a distance metric
• Approaches)
  • Knowledge Distillation
  • Progressive Distillation

Concept) Knowledge Distillation

Luhman and Luhman, 2021

• Goal)
  • Train a generator to imitate the output of a numerical solver evaluated along the full trajectory : \(0\rightarrow T\).
    • i.e.) \(G_\phi(\mathbf{x}_T, T, 0) \approx\text{Solver}_{T\rightarrow0}(\mathbf{x}_T)\) for \(\mathbf{x}_T\sim p_{\text{prior}}\)
• Loss)
  • \(\mathcal{L}_{\text{KD}} := \mathbb{E}_{\mathbf{x}_T\sim p_{\text{prior}}}\left\Vert G_\phi(\mathbf{x}_T, T, 0) - \text{Solver}_{T\rightarrow0}(\mathbf{x}_T) \right\Vert_2^2\).
• Advantage)
  • Direct supervision from the pre-trained teacher \(\text{Solver}\)
• Drawback)
  • Cannot leverage the strong supervision from the original training data.
  • Computationally expensive.
    • Why?) ODE integration on the Solver is required during the \(G_\phi\)’s training.
  • The only option of the global mapping of \(T\rightarrow0\), does not provide controllability.
    • Thus, controllable generation techniques cannot be applied.

Concept) Progressive Distillation

Salimans and Ho, 2021

• Goal)
  • Train a time-conditional Student using local supervision from Teacher fragments.
• Idea)
  • \(t_0=T\gt t_1\gt\cdots\gt t_N = 0\) : the fixed time grid
  • \(\text{Teacher}_{t_k\rightarrow t_{k+1}}\) : Teacher model that provides time-stepping maps for \(k=0,\ldots,N-1\)
  • Repeat
    • \(\text{Student}_{t_k\rightarrow t_{k+2}} \approx \text{Teacher}_{t_k\rightarrow t_{k+1}} \circ \text{Teacher}_{t_{k+1}\rightarrow t_{k+2}}\).
      • i.e.) Student learns the two-step skip map for \(k=0,2,4,\ldots, N-1\).
    • \(\text{Teacher}\leftarrow\text{Student}\).
